Delivered Apparatus

Custom Built Since 1947.


  • Spartan Metro Star MFD 20” raised roof Chassis
  • Cummins ISL9, 380-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Six (6) man cab seating with three (3) SCBA seats
  • Heavy Duty 3/16” Aluminum Body with ROM painted Roll Up Doors
  • Four (4) Upper storage compartments, two (2) each side recessed into roof
  • Front and Rear Reese type hitch/winch receivers with electrical connections
  • Two (2) winch points, one (1) each side behind rear wheels
  • Three (3) EMS compartments, custom map box and tray, cab interior
  • One (1) Triple bottle Air bottle compartment, left side wheel well
  • Two (2) Fire Extinguisher compartments, right side wheel well
  • Oil Dry hopper, left side upper compartment with control value and chute lower
  • Top access Sure Grip stainless steel ladder, rear mounted
  • Turtle Tile on floors and/or shelves and trays of compartments
  • Stokes basket/backboard rack, transverse area
  •  Two (2) Vertical pull-out tool boards and Air bag rack, right side
  • SCBA bottle storage rack for eight (8) bottles and tool chest, left side

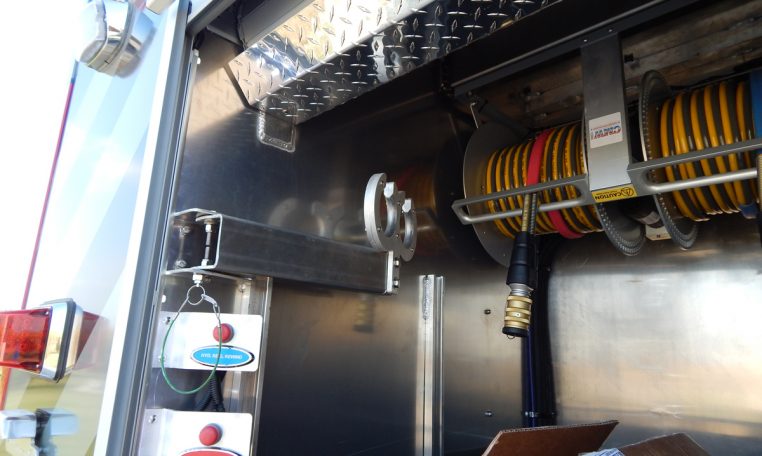

  • CMW Hydraulic/Air hose reels,
  • FireCom  Wireless Intercom System
  • Norcold built-in Refrigerator, left side
  • Kussmaul 1200 on-board battery charger with Viair Air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Brigade Backeye 360 degree camera system with 7” LCD montior
  • Federal Q2B mechanical Siren and two (2) Air Horns, front bumper
  • Whelen Electronic Siren with two (2) Whelen 100-watt speakers
  • Whelen and FRC Scene Light Packages
  • Smart Power HR-10, 10,000 watt hydraulic Generator with 120-volt system
  • Two (2) Electric cord reels with 200-ft of 10/3 cord and junction boxes
  • Command Light Knight 2 light tower
  • Six (6) bottle 6000-PSI Cascade system with control panel and Fill enclosure
  • Whelen LED Warning Light Package and Chevron pattern striping, rear
  • 10’ 9” Overall height
  • 30’ 9” Overall length
  • 194” Wheelbase
  • 140” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2017
Make: Alexis Fire Equipment
Model: Rescue
Chassis: Custom
Body Style: Heavy Rescue
Feature: Exterior Mount Ladder
Exterior Color: Red with Gray
New Delivery: New Delivery
