Delivered Apparatus

FEATURES:

• Spartan Tandem Gladiator MFD 10” Raised Roof Chassis
• Cummins 500 HP X12 Engine
• Allison 4000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame

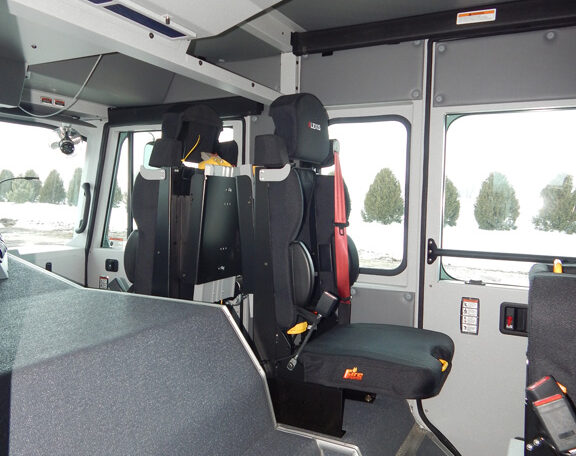

• Five (5) Person Cab
• Stainless-Steel Pump Module
• Hale QMAX 1500 GPM Single Stage Split Shaft Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Left and Right Side
• One (1) 2½” Gated Intake, Left Side
• One (1) 5” Front Intake, Electric Controlled
• Two (2) 2½” Discharges, Left Side
• One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge Adapted to 4” Storz, Right Side
• Two (2) 2½” Preconnects Front of Hose Bed
• One (1) 1½” Bumper Extension Preconnect, Bumper Deck Mounted
• TFT Hurricane Deck Gun with TFT 18” Extend-A-Gun
• Three (3) Dual Wheel Well Air Bottle Compartment, Two (2) Right Side, One (1) Left Side
• Hose Bed w/ Two (2) Dividers, Hypalon Cover
• AMDOR Roll-Up Doors
• 2,000-Gallon Poly Tank

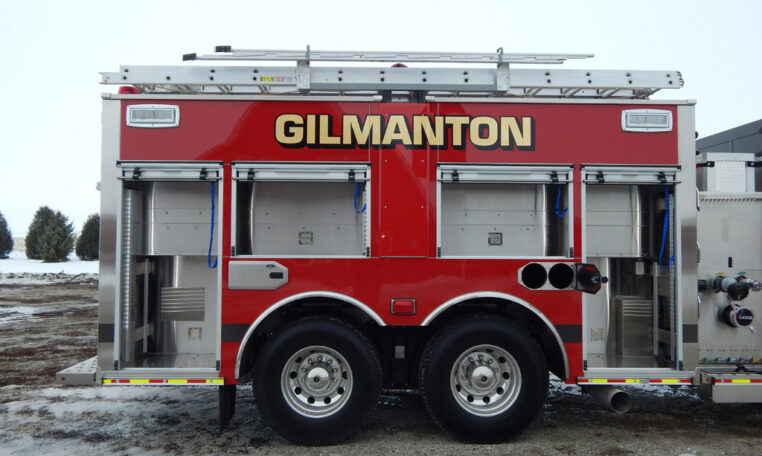

• Hydraulic Ladder Rack, Right Side
• One (1) 4″ Fireman’s Friend Valve Tank Fill, Rear Right

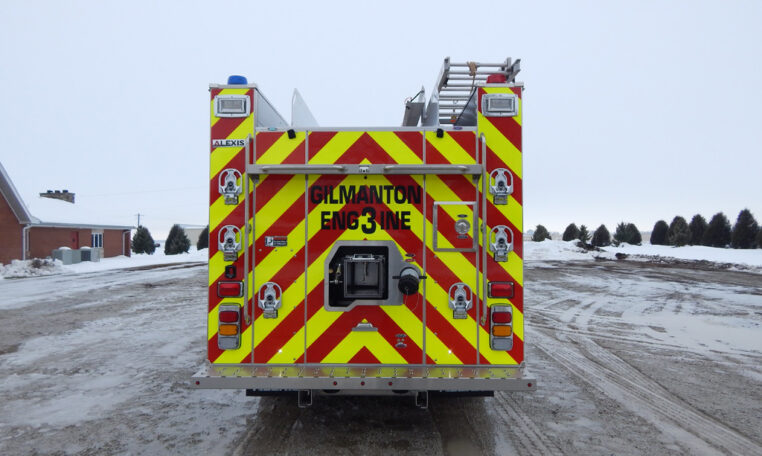

• One (1) 10” Newton Stainless-Steel Electric Swivel Dump, Rear
• Progressive Dynamics Battery Charger w/ Kussmaul 120V 20A Super Auto Eject, Left Front Boody Post
• Whelen Warning and Scene Light Package
• Vanner VLT12-3000 Inverter
• Six (6) Folding Steps, Three (3) Each Side Front Body Wall
• One (1) Hard Suction and Pike Pole Compartment, Rear Access Right Side
• 11’ 0” Overall Height
• 33’ 11” Overall Length
• 196” Wheelbase
• 142” Cab to Axle
• 21,500 FAWR
• 40,000 RAWR
• 61,500 GVWR
