1250-GALLON SIDE CONTROL PUMPER #2341

TOWANDA COMMUNITY FIRE PROTECTION DISTRICT - TOWANDA, ILLINOIS
FEATURES:

• Spartan Big Easy Chassis
• Cummins ISC330, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Stainless steel Body with Stainless Steel Sub-Frame and ROM Roll Up Doors
• Six (6) person cab seating with five (5) SCBA seats
• One (1) 2 ½” Front bumper preconnect with center hose well
• 1250-Gallon Poly Tank
• One (1) 2 ½” FirePrograms Tank fill, rear
• One (1) 10” square Newton Electric tank dump with 36” extension, rear

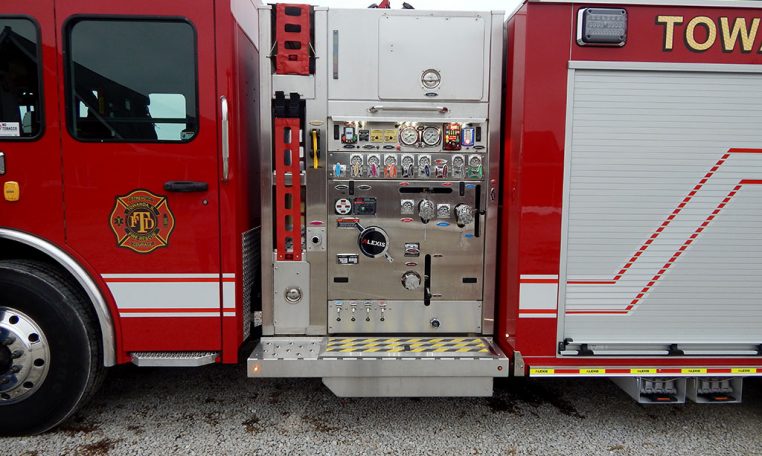

• Waterous CXS, 1250-GPM Pump with left side operator’s panel
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) 5” Front Suction and One (1) 2 ½” Gated Suction, left side
• One (1) 2 ½” Mattydale Preconnect, across top of body
• Two (2) 1 ½” Cartridge Lay Preconnects, ahead of pump module
• One (1) Electric booster with 150-ft of 1” hose, pump module
• Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
• One (1) Hinged pegboard swing out tool board, right side
• Ladder and Pike pole storage compartment right side with rear access
• Zico Hydraulic Folding Tank Rack for 2500-gallon tank, left side
• Suction Hose storage for two (2) hose on folding tank rack
• Turtle tile on floors and/or shelves and trays of compartments
• FireCom Intercom System
• One (1) Audiovox Back-up Camera system with 7” color monitor
• Federal Q2B mechanical Siren, pedestal mount front bumper
• 120 volt Electrical system utilizing customer supplied generator
• Command Knight 2, 12-volt Light Tower with four (4) Whelen LED lights
• Light Tower Guard
• FRC and Whelen Scene Light Packages
• Whelen LED Warning Light Package
• Diamond grade Chevron pattern striping, rear
• 10’ 9” Overall height
• 34’ 4” Overall length
• 214” Wheelbase
• 160” Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR

Year: 2018
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Side Control Pumper
Pump Size: 1250
Tank Size: 1250
Feature: Interior Mount Ladder
Exterior Color: Red
New Delivery: New Delivery
