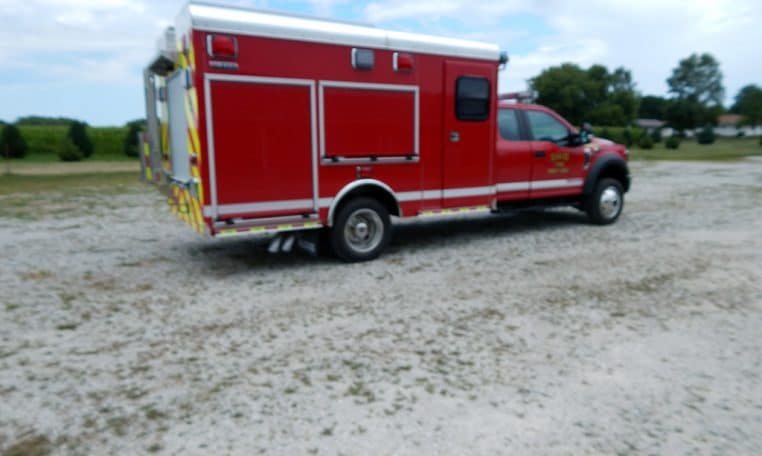

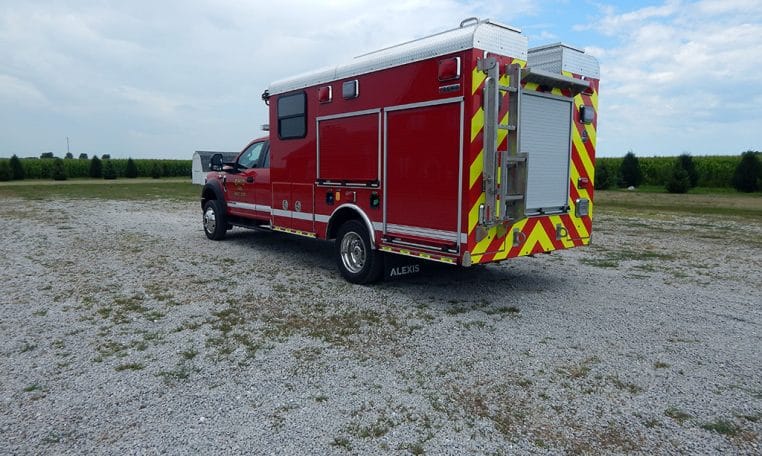

12-FOOT RESPONSE ONE WITH WALK-IN #S763

OHIO FIRE PROTECTION DISTRICT - OHIO, ILLINOIS
FEATURES:

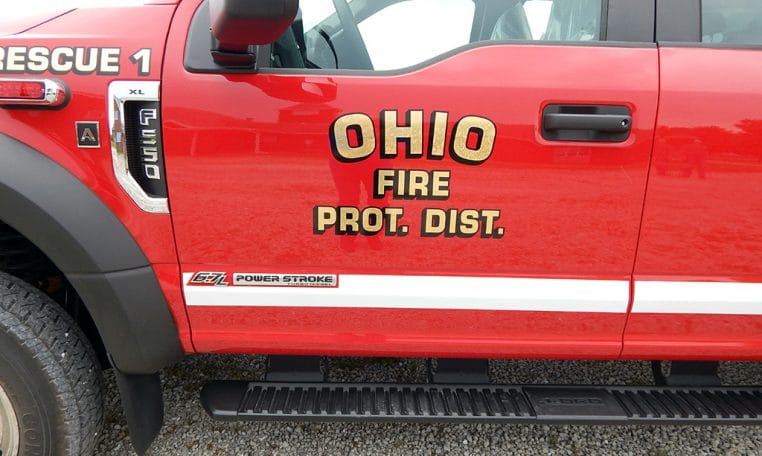

  • Ford F-550XL 4×4 Supercab DRW Chassis
  • Ford PowerStroke 6.7L 330-HP Diesel Engine
  • Ford TorqueShift 6-speed Automatic Transmission
  • Heavy Duty Aluminum Body
  • ROM painted Roll Up compartment Doors

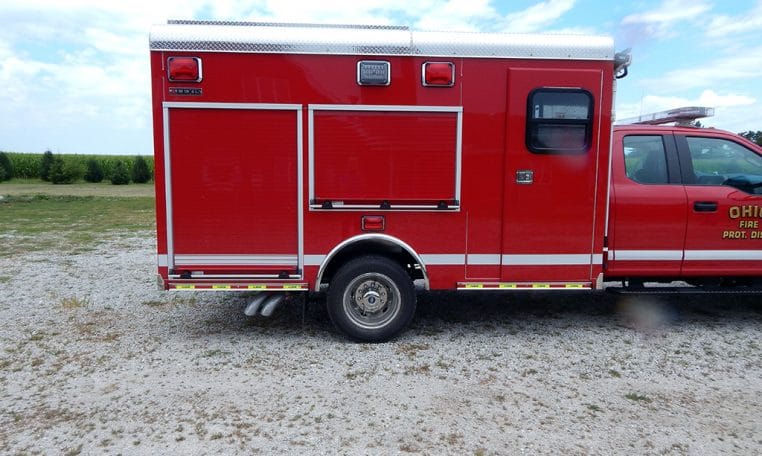

  • Walk-in EMS forward area with right side walk-in door and windows
  • Two (2) Drop down squad bench seat, interior squad area

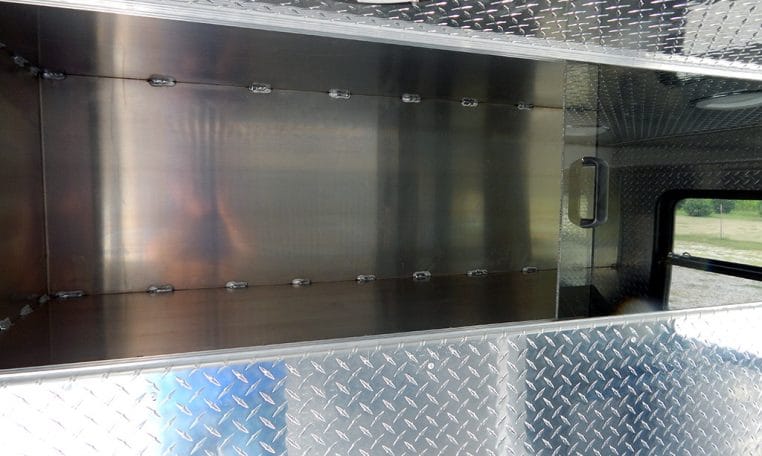

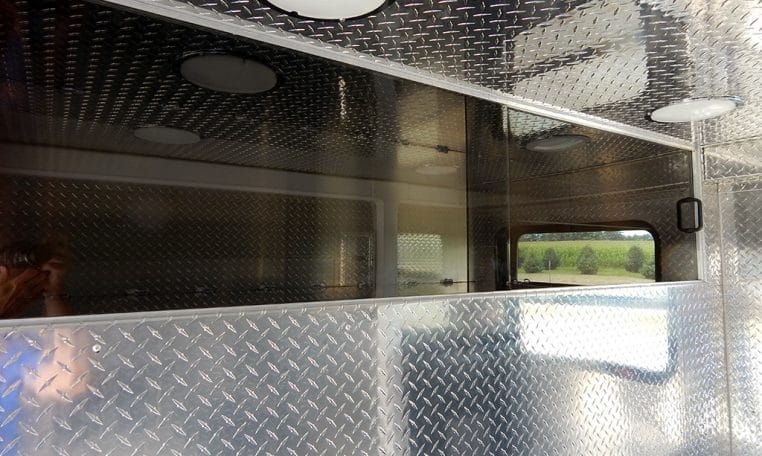

  • Interior squad cabinet, above bench seat
  • Stainless Steel Top Access Ladder, rear mounted
  • Two (2) Upper storage compartments with lift-up doors, one (1) each side roof
  • Progressive Dynamics on-board battery charger

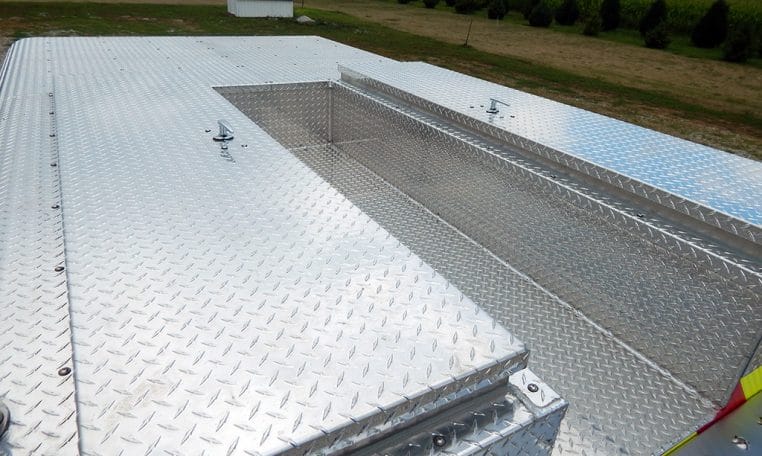

  • Stokes Basket and three (3) backboard storage racks, transverse compartment

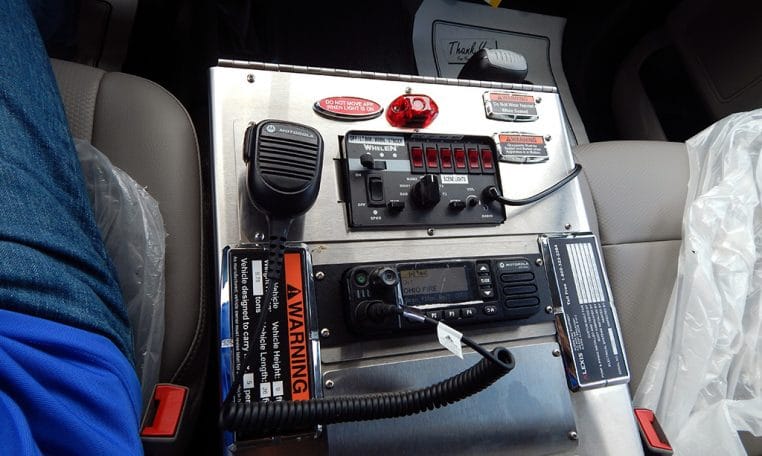

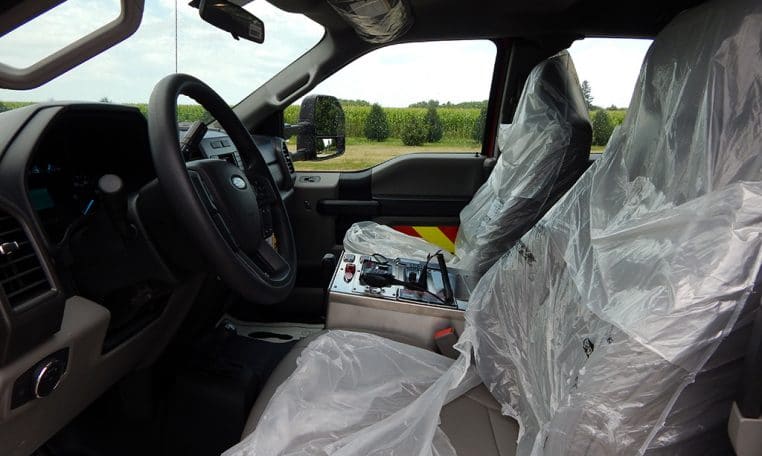

  • Floor mounted console for emergency switches, cab
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Whelen Electronic Siren with warning light controls and 100-watt speaker
  • Code 3 LED front work lightbar
  • Four (4) Whelen LED Scene lights, one (1) each side and two (2) rear
  • Two (2) Akron Exenda-Lite LED 12-volt Telescopic lights, one (1) each side
  • Whelen LED Warning Light Package
  • Diamond Grade Chevron pattern striping, rear
  • 9’ 7” Overall height
  • 25’ 3” Overall length
  • 191.9” Wheelbase
  • 84” Cab to Axle
  • 7,500 FAWR
  • 14,700 RAWR
  • 19,500 GVWR
Year: 2019
Make: Alexis Fire Equipment
Model: Response One
Chassis: Ford F-550XL
Body Style: Response One
Feature: Cooling Center
Exterior Color: Red
New Delivery: New Delivery
Program Vehicle: Response One
