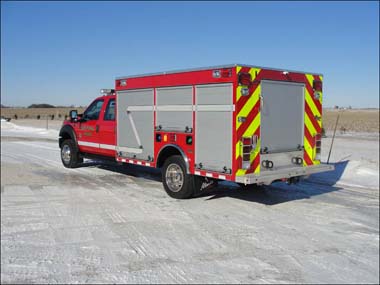

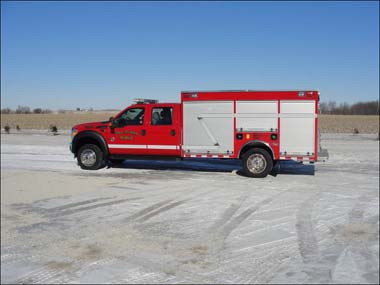

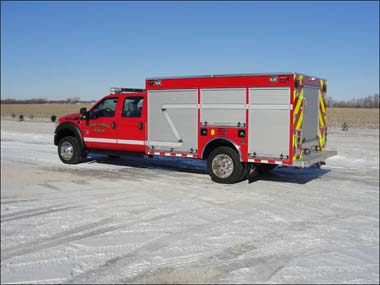

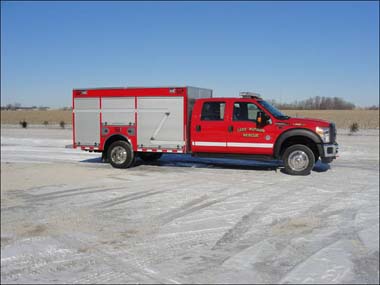

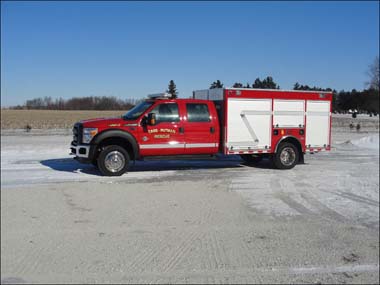

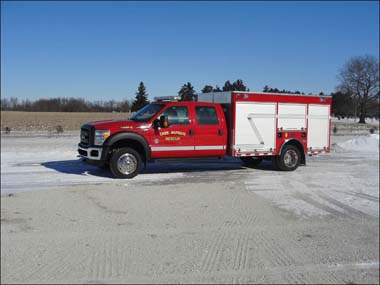

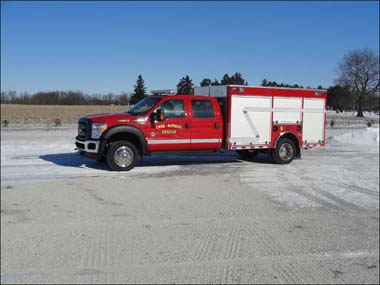

12-FOOT RESPONSE ONE #S714

CASS-PUTMAN RESCUE SERVICES - CUBA, ILLINOIS

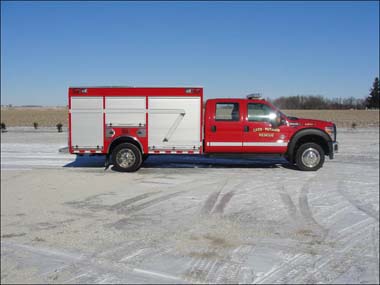

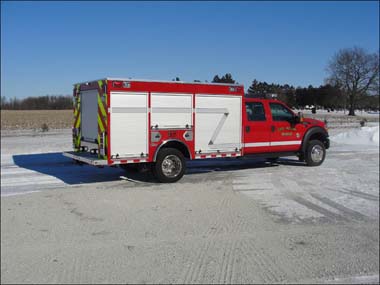

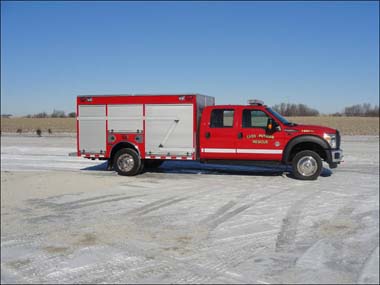

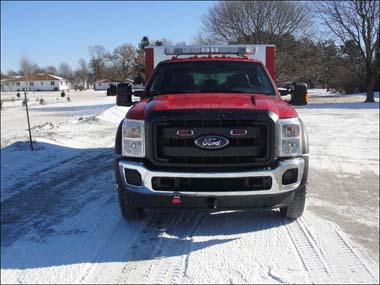

• Ford F-550 4-door Chassis
• Ford Powerstroke 6.7L, 300-HP Diesel Engine
• Ford Torqshift Automatic Transmission
• Heavy Duty 3/16” Aluminum Body

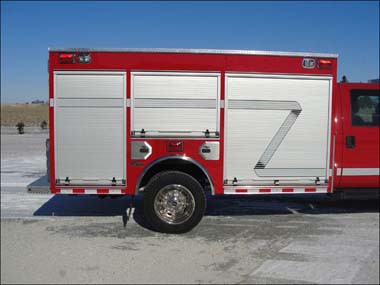

• Amdor brand Roll Up Doors
• Front and rear winch/trailer hitches with electrical connections
• One (1) Warn 8000-lb Winch with remote cable

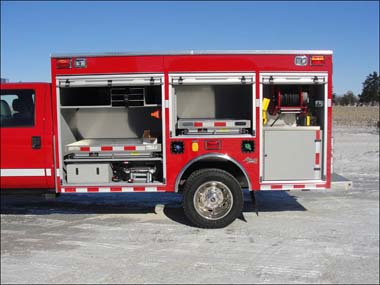

• One (1) Pike pole storage compartment, left side with rear access
• Two (2) Air bottle storage compartments, right side wheel well
• Long handled tool storage, front transverse compartment
• Ladder storage rack, front transverse compartment
• Backboard rack for (3) backboards, front transverse compartment
• Horizontal Air bag rack for two (2) bags, right side
• Two (2) Vertical pull-out tool boards, right side
• Winch storage bracket and O2 bottle storage, left side
• Cribbing containment compartment, left side

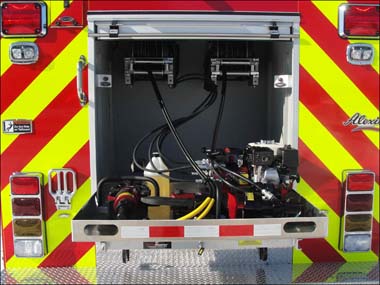

• Two (2) Hannay Dual hydraulic hose reels with 100-ft of hose each, rear

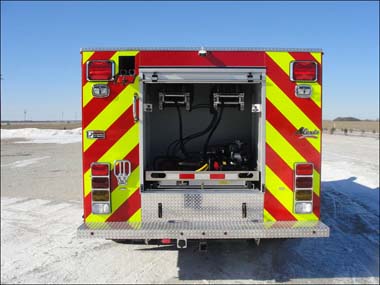

• Extrication tool mounting, rear roll out tray
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline

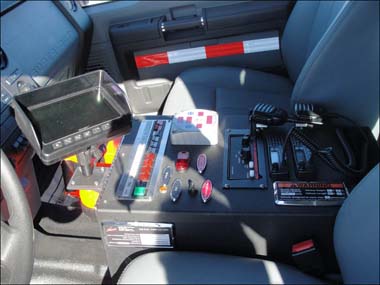

• Floor mounted console for emergency switches with map/binder storage
• Audiovox back-up Camera with 7” color monitor
• Code 3 Electronic Siren with 100-watt Whelen speaker
• Six (6) Federal GHSCENE lights, two (2) each side and two (2) rear
• Smart Power 8000-watt hydraulically driven Generator with 120-volt system
• One (1) Electric cord reel with 150-ft of 10/3 cord and junction box, left side

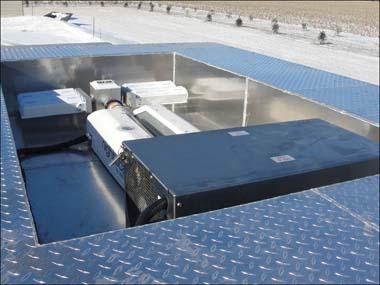

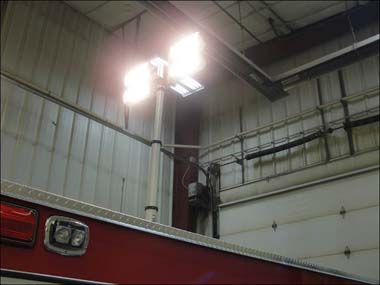

• Night Scan Chief Light Tower with four (4) 1500-watt optimum lights
• Whelen LED Warning Light Package
• Diamond Grade Chevron striping, rear
• 7’ 8” Overall height
• 26’ Overall length
• 200.2” Wheelbase
• 84” Cab to Axle
• 7,000 FAWR
• 14,700 RAWR
• 19,500 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Rescue
Body Style: Response One
Exterior Color: Red
