2000-GALLON BADGER TANKER #2517
GREER FIRE DISTRICT - GREER, ARIZONA- January 8, 2024
- Not categorized
- Posted by R_Admin
- Comments Off on 2000-GALLON BADGER TANKER #2517
FEATURES:
- International HV607 Chassis
- 450 HP Cummins L9 Diesel Engine
- Allison 3000 EVS Automatic Transmission
- Zico Slide Out Gantry Ladder Storage, One (1) 24’ 2-Section, One (1) 14’ Roof Ladder
- Two (2) Electric Spray Booms Each Front and Rear Bumper
- One (1) 2½” Front Bumper Preconnect
- Two (2) 1½” Mattydale Preconnects
- Akron 3462 Forestry Front Turret
- 2000-Gallon Poly Tank, Rear Access Compartment Right Side
- Two (2) Hard Suction, Rear Access Compartment Left Side
- Heavy Duty Aluminum Subframe & Body
- Aluminum Intermediate Pump Module
- Waterous CXVPA 1250 gpm PTO Pump
- One (1) 2½” Gated Intake Left Side
- One (1) 4” FirePrograms Tank Fill Rear Right
- Two (2) 6” Intakes, One (1) Each Side
- Two (2) 2½” Discharges Left Side
- One (1) 2½” Discharge Right Side
- One (1) 3” Discharge adapted to 5” Storz, Right Side
- Foam Pro 1600 Class A 20 Gallon Tank
- Hannay Booster Reel 100’ of 1” Rear
- 10” Newton Swivel Dump Rear [...]
3000 GALLON TANKER #2566
ORANGE COUNTY EMERGENCY SERVICES DISTRICT #4 - ORANGE COUNTY, TEXAS- January 8, 2024
- Not categorized
- Posted by R_Admin
- Comments Off on 3000 GALLON TANKER #2566
FEATURES:
- Freightliner M2-112 Two (2) Door Chassis
- Cummins 450 HP L9 Engine
- Allison 3000 EVS Automatic Transmission
- Heavy Duty Aluminum Body and Sub-Frame
- Two (2) Person Cab
- Stainless-Steel Pump Module
- Waterous CXVPA 1250 GPM Pump
- Trident Air Prime System
- Two (2) 6” Intakes, One (1) Each Side
- One (1) 2½” Gated Intake, Left Side, Left Control
- Two (2) 2½” Discharges, Left Side
- One (1) 2½” Discharges, Right Side
- One (1) 3” Discharge Adapted to 5” Storz, Right Side
- One (1) 1½” and One (1) 2½” and One (1) Deadlay Mattydale Preconnects
- 3000 Gallon Wetside Poly Tank
- One (1) 4” FirePrograms Tank Fill
- One (1) 10” Newton Stainless-Steel Electric Swivel Dump, Rear
- Four (4) Folding Steps, Rear, One (1) Left, Three (3) Right
- ROM Roll-Up Doors
- Two (2) 10’ x 6” Suction Hoses, Storage Under Tank “T”, Left Side
- 3000 Gallon Fol-Da-Tank Under Tank “T”, Right Side
- Whelen Warning Light Package
- FireTech Scene Light Package [...]

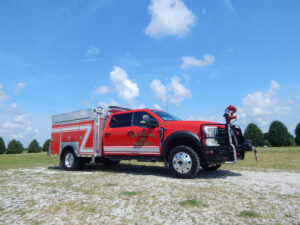

AFE DEMO #S789 – UTILITY BRUSH TRUCK
Alexis Fire Equipment - Alexis IL- December 19, 2023
- Not categorized
- Posted by R_Admin
- Comments Off on AFE DEMO #S789 – UTILITY BRUSH TRUCK
FEATURES:
- Chevrolet Silverado MD 4×4 Crew Cab Chassis
- 6.6L V8 Turbo Diesel Engine
- Allison 2700 EVS Automatic Transmission
- Buckstop Replacement Bumper
- Heavy Duty Aluminum Body and Subframe
- Waterous Portable Gas Engine Pump
- Two (2) 1” Attack Zone Platform Discharges, One (1) Each Side
- One (1) 1½” Discharge, Rear of Skid Unit
- Booster Reel, Rear of Skid Unit
- Akron Model 3462 Forestry Turret, Platform Mount
- 10 Gallon Foam Tank
- LAP Design Beveled Doors
- One (1) Hose Tray, Above Left Compartments
- 300-Gallon Poly Tank
- Two (2) Folding Steps, One (1) Each Side Rear
- Tecniq LED Warning Light Package
- One (1) Golight Remote Controlled Spotlight, Headache Rack Mounted
- Whelen Electronic Siren & 100W Speaker
- 8’ 9” Overall Height
- 26’ 7” Overall Length
- 199” Wheelbase
- 84” Cab to Axle
- 7,500 FAWR
- 15,500 RAWR
- 23,000 GVWR
DOWNLOAD DRAWINGS AND SPECIFICATIONS
AFE DEMO #2605 – 2000-GALLON DRY SIDE TANKER
Alexis Fire Equipment - Alexis IL- December 19, 2023
- Not categorized
- Posted by R_Admin
- Comments Off on AFE DEMO #2605 – 2000-GALLON DRY SIDE TANKER
FEATURES:
- International HV607 2-Door Chassis
- Cummins L9 450 HP Diesel Engine
- Allison 3000 EVS Automatic Transmission
- Two (2) Person Cab
- Heavy-Duty Aluminum Body and Subframe
- Stainless-Steel Side Control Pump Module
- Waterous 1250 gpm PTO Pump
- Trident Air Prime System
- FRC Pump Boss Pressure Governor & Monitoring System
- Two (2) 6” Intakes, One (1) Each Side
- One (1) 4” FirePrograms Tank Fill, Rear
- One (1) 2½” Discharge Left Side
- One (1) 2½” Discharge Right Side
- One (1) 3” Discharge Right Side adapted to 5” Storz
- Mattydale Preconnect Module, Two (2) 1½”
- 2000-Gallon Poly Tank
- Ladder Storage Brackets, Left Side
- Two (2) 10’ x 6” Hard Suction Gutters, Right Side
- Slide In 2,100G Folding Tank Storage, Rear Access Right Side
- Five (5) Folding Steps, Rear
- ROM Satin Finish Roll Up Doors
- One (1) 10” Newton Stainless-Steel Manual Swivel Dump, Rear
- Progressive Dynamics Battery Charger with Viair Compressor and Kussmaul 120V 20A Super Auto Eject
- Kussmaul Auto [...]
AFE DEMO #2604 – 1500 GPM MINI PUMPER
Alexis Fire Equipment - Alexis IL- December 19, 2023
- Not categorized
- Posted by R_Admin
- Comments Off on AFE DEMO #2604 – 1500 GPM MINI PUMPER
FEATURES:
- Ford F-550 4×4 Super Duty Crew Cab
- 6.7L 4V OHV V8 Turbo Diesel Engine
- TorqShift 10-Speed Automatic Transmission
- Heavy Duty Stainless-Steel Body and Subframe
- Hale DSD 1500 GPM Split-Shaft Pump
- FRC Pump Boss Pressure Governor & Monitoring System
- Hale ESP-12 Air Prime System
- Two (2) 6” Intakes, One (1) Each Side
- One (1) 2½” Gated Intake Left Side
- Two (2) 1½” Cartridge Lay Preconnects
- Two (2) 2½” Discharges, Left Side
- One (1) 2½” Discharge, Right Side
- One (1) 3” Discharge Adapted to 5” Storz, Right Side
- One (1) 2½” Discharge, Front of Hose Bed
- One (1) 1½” Brush Guard Preconnects
- Booster Reel, Rear Compartment
- Three (3) Single Air Bottle Wheel Well Compartments, One (1) Left Side, Two (2) Right Side
- One (1) Hose Bed Divider
- ROM Painted Roll-Up Doors
- 300-Gallon Poly Tank
- Progressive Dynamics Charger with Viair Compressor and Kussmaul 120V 20A Super Auto Eject
- Four (4) Folding Steps, Two (2) Each Side [...]
AFE DEMO #2603 – 1500 GPM MINI PUMPER
Alexis Fire Equipment - Alexis IL- December 19, 2023
- Not categorized
- Posted by R_Admin
- Comments Off on AFE DEMO #2603 – 1500 GPM MINI PUMPER
FEATURES:
- Ford F-550 4×4 Super Duty Crew Cab
- 6.7L 4V OHV V8 Turbo Diesel Engine
- TorqShift 10-Speed Automatic Transmission
- Heavy Duty Stainless Steel Body and Subframe
- Hale DSD 1500 GPM Split-Shaft Pump
- FRC Pump Boss Pressure Governor & Monitoring System
- Hale ESP-12 Air Prime System
- Two (2) 6” Intakes, One (1) Each Side
- One (1) 2½” Gated Intake Left Side
- Two (2) 2½” Discharges, Left Side
- One (1) 2½” Discharge, Right Side
- One (1) 3” Discharge Adapted to 5” Storz, Right Side
- Two (2) 1½” Mattydale Preconnects
- Two (2) Single Air Bottle Wheel Well Compartments, One (1) Each Side
- ROM Painted Roll-Up Doors
- 300-Gallon Poly Tank
- Progressive Dynamics Charger with Viair Compressor and Kussmaul 120V 20A Super Auto Eject
- Hard Suction Storage Compartment, Left Side Upper
- Ladder Storage Compartment, Right Side Upper
- Four (4) Folding Steps, Two (2) Each Side Rear
- Tecniq LED Warning Light Package
- FireTech Scene Light Package
- Whelen Electronic Siren & [...]
AFE DEMO #2598 – EQUALIZER PUMPER
Alexis Fire Equipment - Alexis IL- December 19, 2023
- Not categorized
- Posted by R_Admin
- Comments Off on AFE DEMO #2598 – EQUALIZER PUMPER
FEATURES:
- HME Chassis
- Cummins 450 HP L9 Engine
- Allison 3000 EVS Automatic Transmission
- Heavy Duty Stainless-Steel Body and Sub-Frame
- Six (6) Person Cab
- Stainless-Steel Top Mount Pump Module with 22” Walkway
- Waterous 1500 GPM Split-Shaft Pump
- Trident Air Prime System
- FRC Pump Boss Pressure Governor & Monitoring System
- Two (2) 6” Intakes, One (1) Each Side
- One (1) 2½” Gated Intake, Left Side
- One (1) 2½” Discharge, Left Side
- One (1) 2½” Discharge, Right Side
- Two (2) 1½” Mattydale Preconnects
- One (1) 3” Discharge, Right Side Adapted to 5” Storz
- One (1) 3” Discharge, Rear Adapted to 2½” NST
- 3” Fixed Monitor Piping Pump Panel Controlled
- TFT Extend-A-Gun
- 1000 Gallon Poly Tank
- Kussmaul Battery Charger with Compressor and 120V 20A Super Auto Eject
- ROM Painted Roll-Up Doors
- Three (3) Dual Wheel Well Air Bottle Compartments, One (1) Left Side, Two (2) Right Side
- One (1) Hose Bed Divider
- Ladder and Suction Hose Storage Through [...]
AFE DEMO #2597 – 1800 GALLON SUPER TANKER
Alexis Fire Equipment - Alexis IL- December 19, 2023
- Not categorized
- Posted by R_Admin
- Comments Off on AFE DEMO #2597 – 1800 GALLON SUPER TANKER
FEATURES:
- Spartan FC-94 MFD 10” Raised Roof Chassis
- Cummins L9 450 HP Diesel Engine
- Allison 3000 EVS Automatic Transmission
- Four (4) Person Cab
- 24” Front Bumper Extension with Center Hose Well
- Heavy-Duty Aluminum Body and Subframe
- Stainless-Steel Intermediate Pump Module
- MAC1 LEA 1500 gpm Split Shaft Pump
- Two (2) 6” Intakes, One (1) Each Side
- Trident Air Prime System
- FRC Pump Boss Pressure Governor & Monitoring System
- Two (2) 6” Intakes, One (1) Each Side
- One (1) 2½” Gated Intake Left Side
- Two (2) 2½” Discharges Left Side
- One (1) 2½” Discharge Right Side
- One (1) 3” Discharge Right Side adapted to 5” Storz
- Mattydale Preconnect Module, One (1) 1½” | One (1) 2½” | One (1) Deadlay
- 3” Fixed Monitor Piping
- 1,800-Gallon Poly Tank
- One (1) Hard Suction Gutter Above Left Compartment Tops
- Rear Access Ladder Storage Vertical Through Tank Left Side
- Zico 2,100G Hydraulic Folding Tank Bracket with One (1) Hard Suction [...]
AFE DEMO #2589 – 1500 GPM EQUALIZER PUMPER
Alexis Fire Equipment - Alexis IL- December 19, 2023
- Not categorized
- Posted by R_Admin
- Comments Off on AFE DEMO #2589 – 1500 GPM EQUALIZER PUMPER
FEATURES:
- Spartan FC-94 MFD 10” Raised Roof Chassis
- Cummins 450 HP L9 Engine
- Allison 3000 EVS Automatic Transmission
- Heavy Duty Stainless-Steel Body and Sub-Frame
- Six (6) Person Cab
- Stainless-Steel Pump Module
- Top Mount Pump Module with 22” Walkway
- Waterous 1500 GPM Split-Shaft Pump
- Trident Air Prime System
- FRC Pump Boss Pressure Governor & Monitoring System
- Two (2) 6” Intakes, One (1) Each Side
- One (1) 2½” Gated Intake, Left Side
- One (1) 2½” Discharge, Left Side
- One (1) 2½” Discharge, Right Side
- Two (2) 1½” Mattydale Preconnects
- One (1) 3” Discharge, Right Side Adapted to 5” Storz
- One (1) 3” Discharge, Rear Adapted to 2½” NST
- 3” Fixed Monitor Piping Pump Panel Controlled
- TFT Extend-A-Gun
- 1000 Gallon Poly Tank
- Kussmaul Battery Charger with 120V 20A Super Auto Eject
- ROM Painted Roll-Up Doors
- Three (3) Dual Wheel Well Air Bottle Compartments, One (1) Left Side, Two (2) Right Side
- One (1) Hose Bed Divider
- AFE [...]
