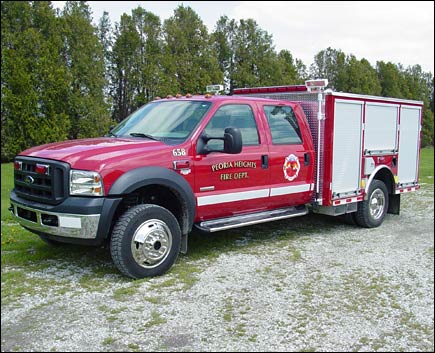

Village Of Peoria Heights
Fire Department
Peoria Heights, Illinois
Technical Specs
• Ford F-550 4-Door 4x4
DRW Chassis
• Powerstroke 6.0L V-8, 325-HP Diesel Engine
• Ford TorqShift 5-speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 200-Gallon T-type Poly Tank
• Hale HPX200, 60-GPM Pump with Honda 20-HP Gasoline
engine
• One (1) 2 ½" Gated suction
• One (1) 2 ½" Discharge, rear
• One (1) Akron electric booster reel with 150-ft.
of 1" hose
• ROM Roll Up Doors
• Luverne stainless steel running boards
• Two (2) Air bottle compartments, one (1) each
side
• One (1) Backboard and stokes basket storage
rack, front transverse compartment
• One (1) Hannay Dual hydraulic hose reel, right
side compartment
• Two (2) Walk-away Air Pak brackets, left side
compartment
• One (1) rolled up hose storage tray, side compartment
• One (1) Vertical pull out board, left side
rear compartment
• Vanner On board Automatic battery charger/conditioner
• One (1) Kussmaul Super Auto Eject 120-volt
shoreline
• Two (2) Weldon large scene lights, one (1)
each side
• One (1) PowerAll 5000-watt under hood Generator
• Two (2) Akron Extenda-Lite 120-volt 750-watt
telescopic lights, one (1) each side
• Two (2) 120-volt 20-amp twist lock exterior
outlets, one (1) each side
• Two (2) 120-volt eight (8) outlet power strips,
one (1) right side compartment and one (1) cab console
• Code-3 Electronic Siren with 100-watt Federal
speaker
• Weldon Warning Light Package
• 7' 4" Overall height
• 23' Overall length
• 176.2" Wheelbase
• 60" Cab to Axle
• 7000 FAWR
• 13,660 RAWR
• 17,950 GVWR
|
