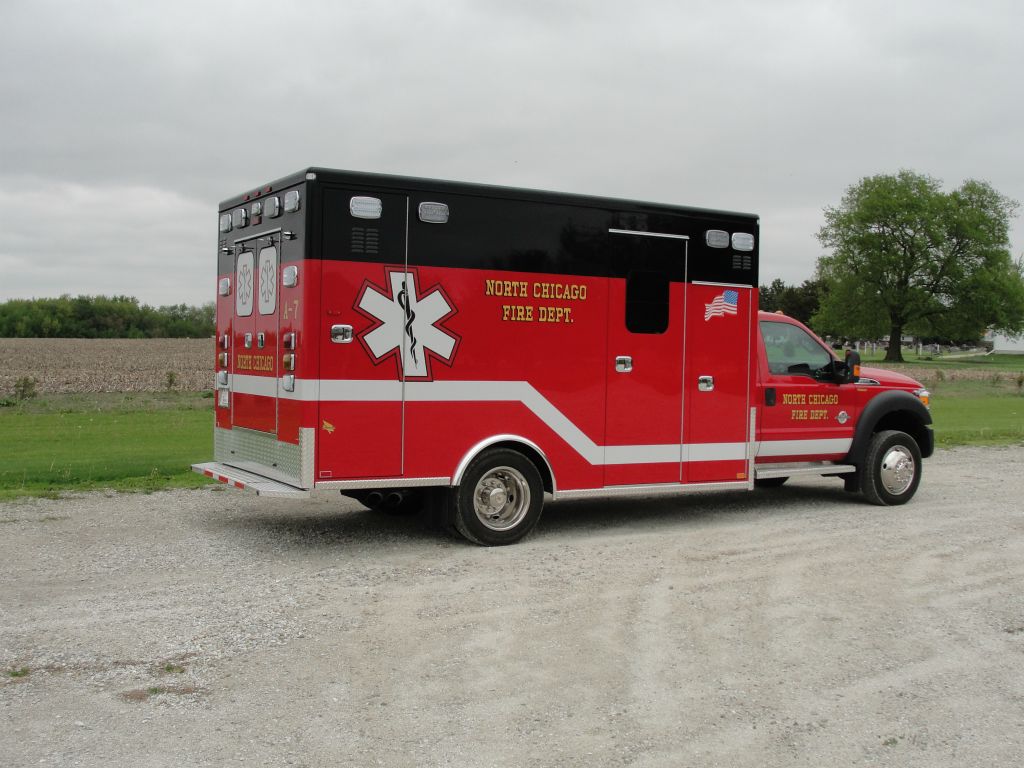

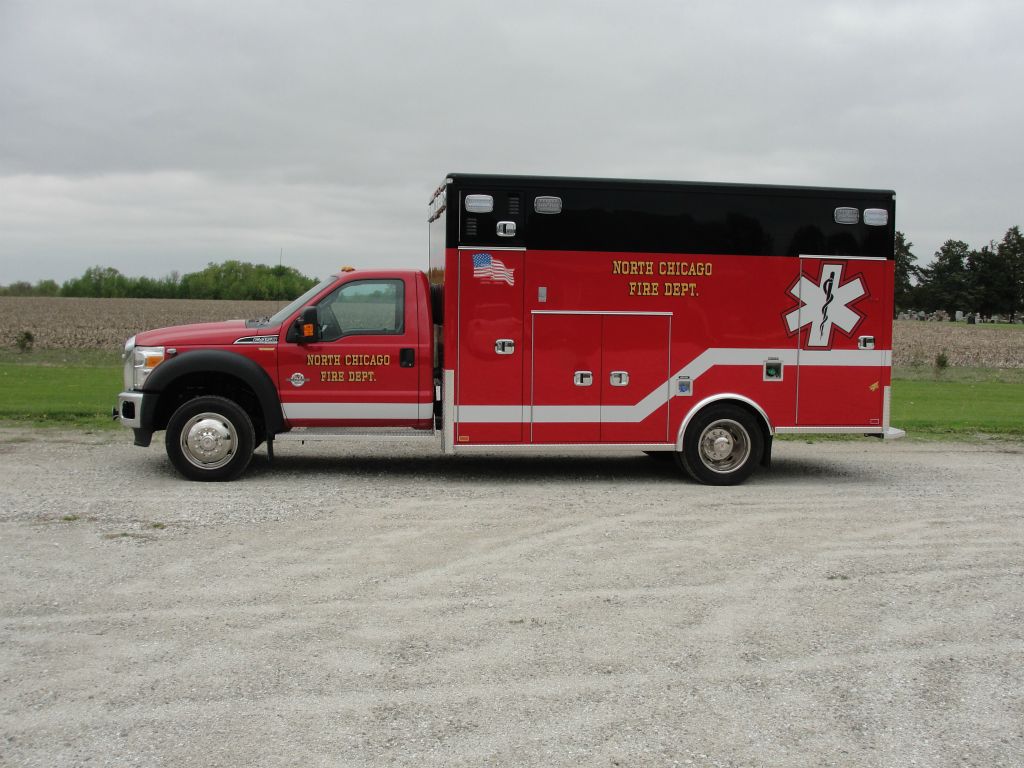

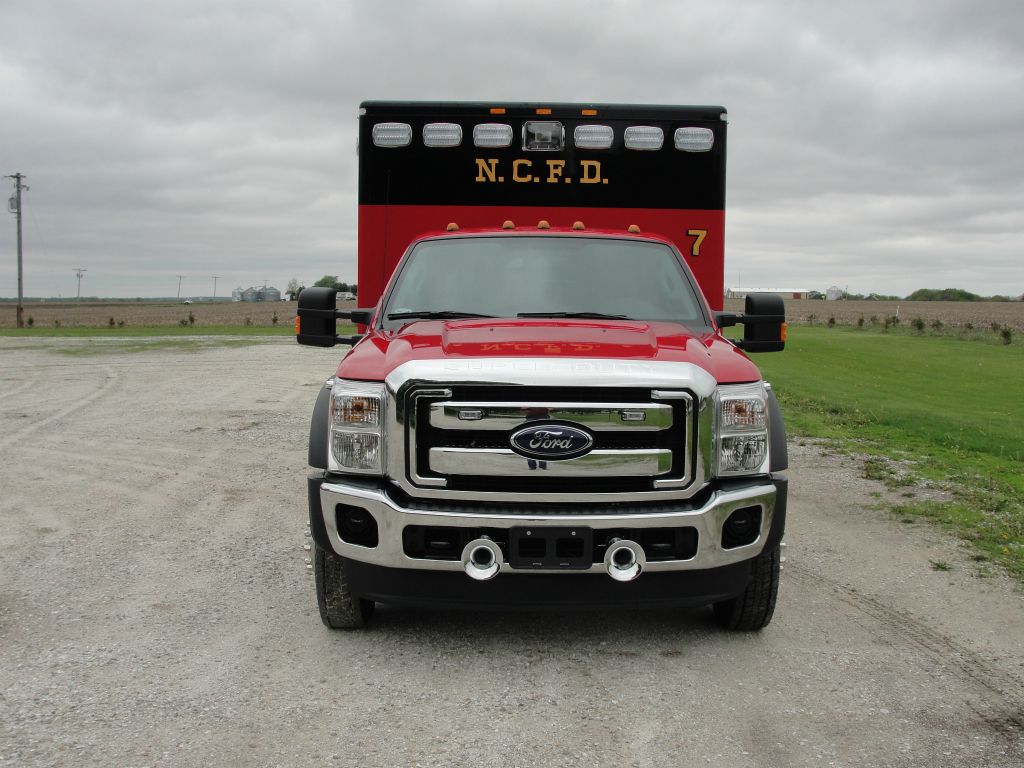

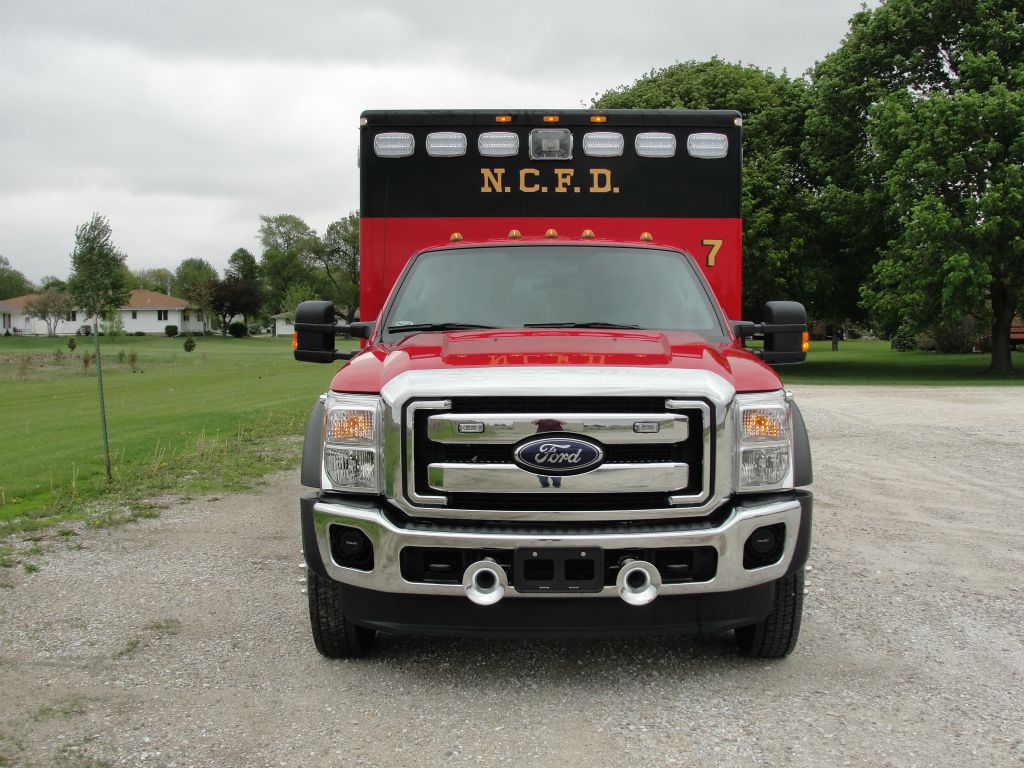

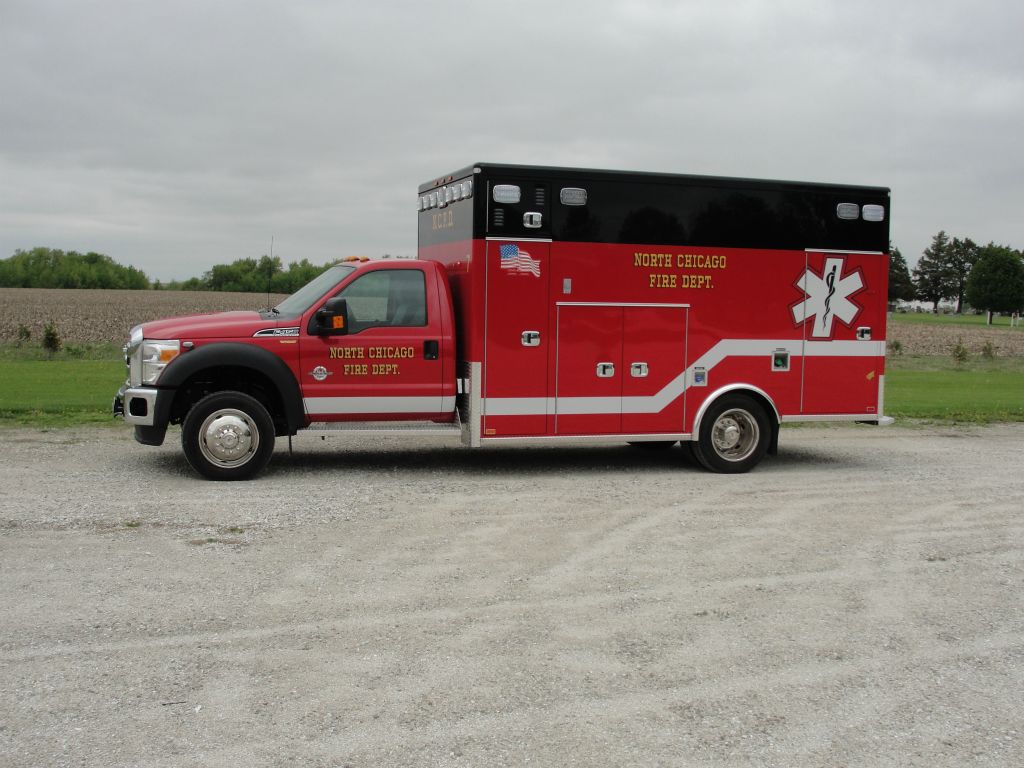

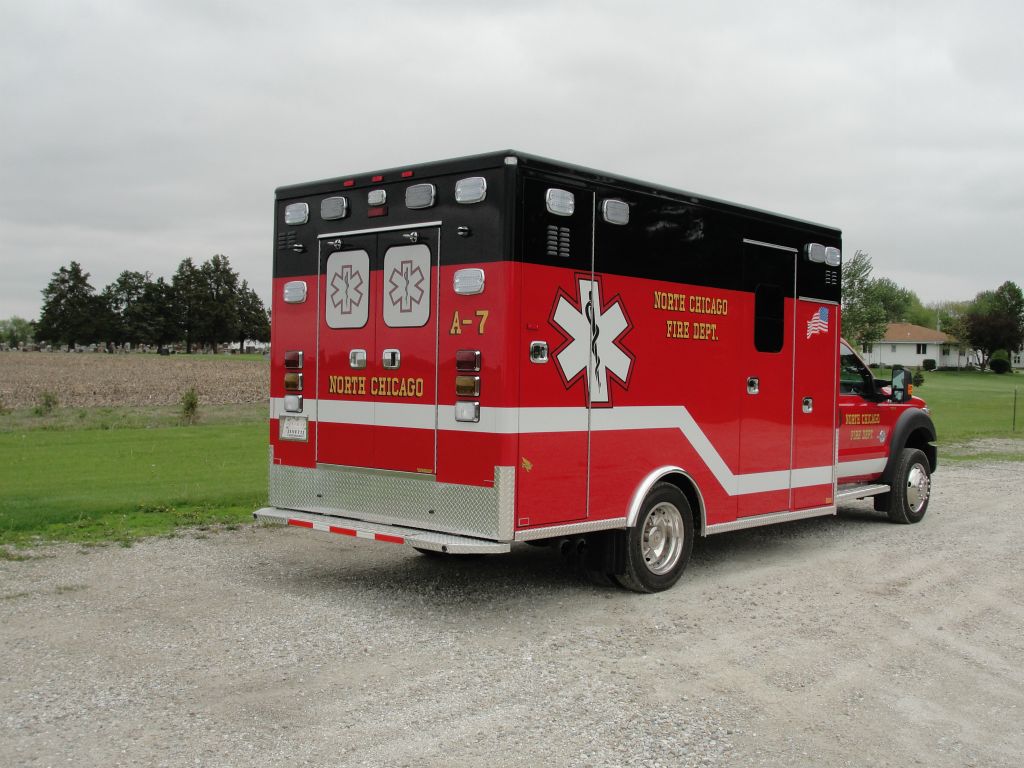

NORTH CHICAGO FIRE DEPARTMENT
NORTH CHICAGO, ILLINOIS
Technical Specs
• Chassis: Ford F-450 4 x 2
• Engine: 6.7 Scorpion
• Transmission: Ford HD 6 speed automatic
• Attendant Seat: EVS Child Safety Seat; 3 pt. harness

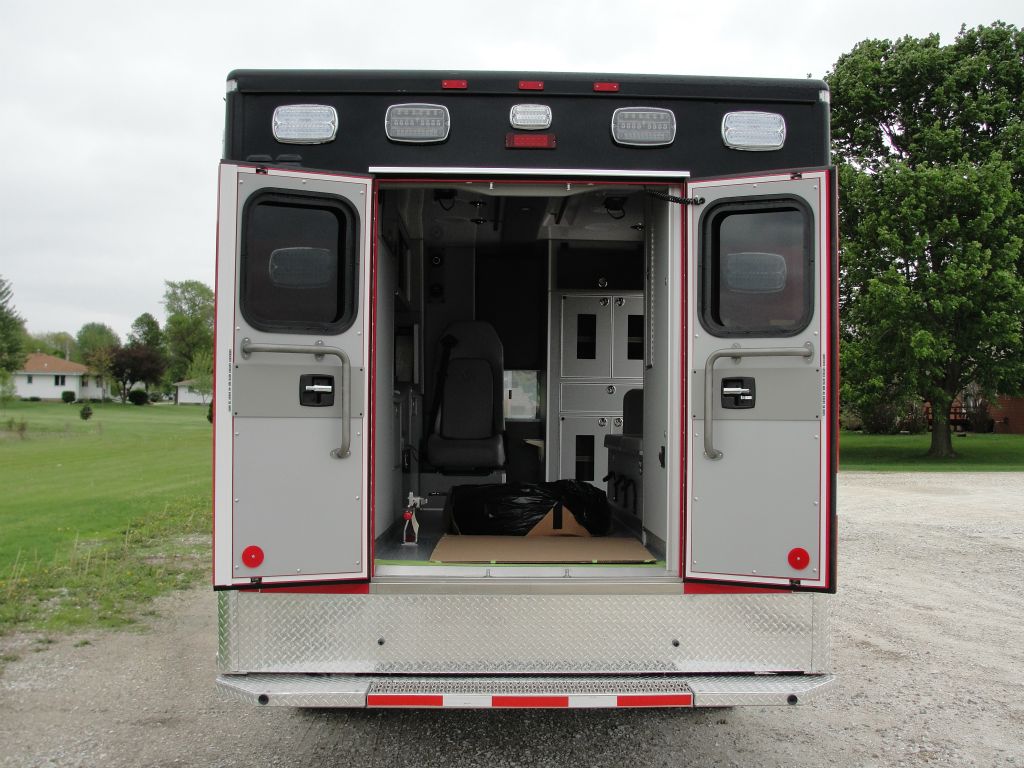

• AEV Extruded Aluminum Body
• 6" Curbside Body Drop on curbside forward of rear wheels
• Two Tone custom paint & stripping to match existing fleet
• Size/Headroom: Interior 72" Finished
• Shoreline: Auto eject w/indicator light
• Link Air Ride rear suspension
• Siren: Whelen 295HFS2 siren; 200 watt w/ Whelen bumper mounted speakers
• Air horn: Buell Dual 10" & 12" Strombos thru bumper installation
• Patient lights: Kinequip LED
• Warning Light package: Whelen M series LED package
• Whelen Skirtrail Lights with white ground lighting
• Scene Lights Whelen M Series LED
• Opticom: 792H GTT Opticom
• Diamond plate running boards with "Grip Strut" inserts

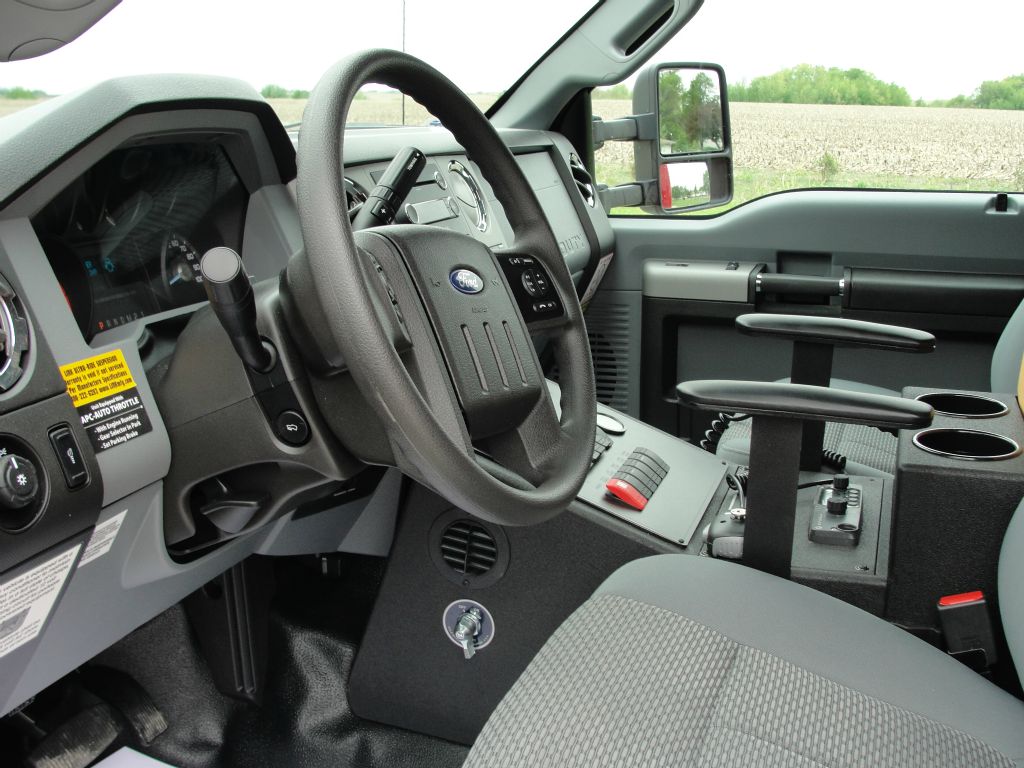

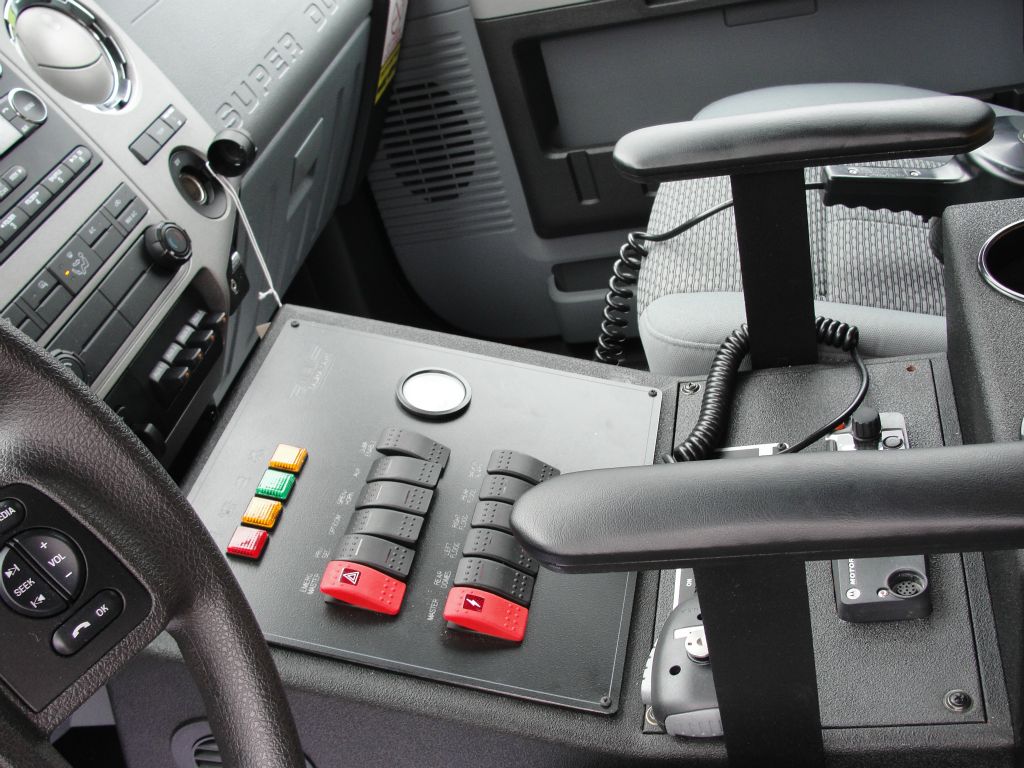

• Center console padded armrests
• Electrical: RMR
• Power Door Locks w/override in grill area

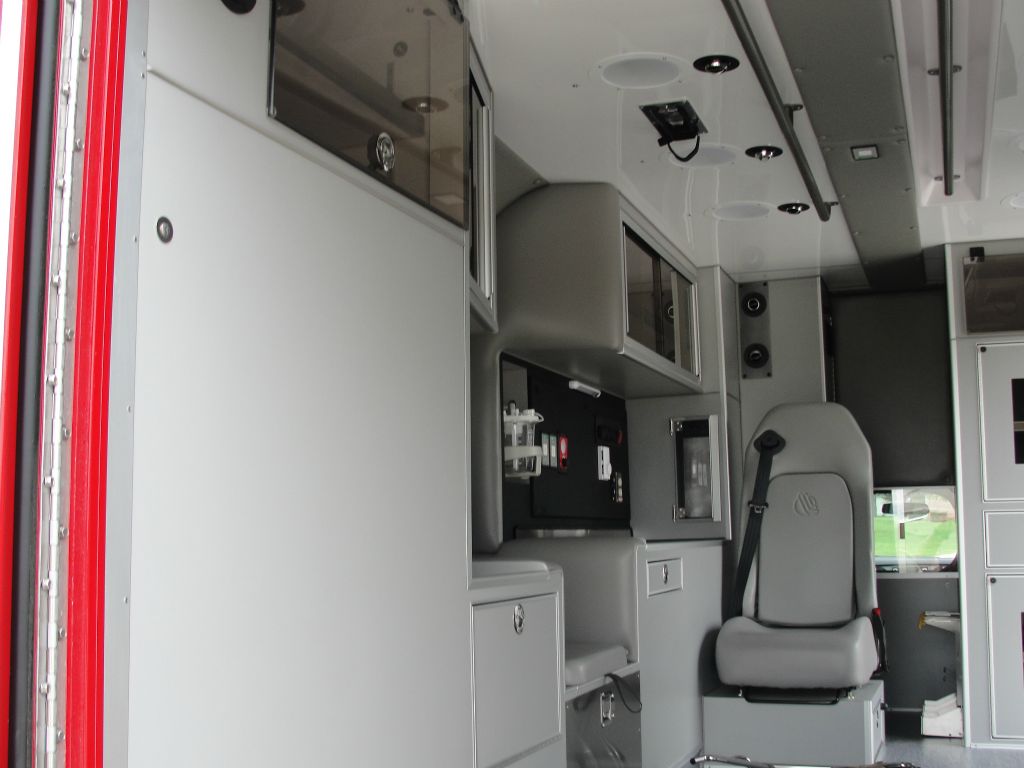

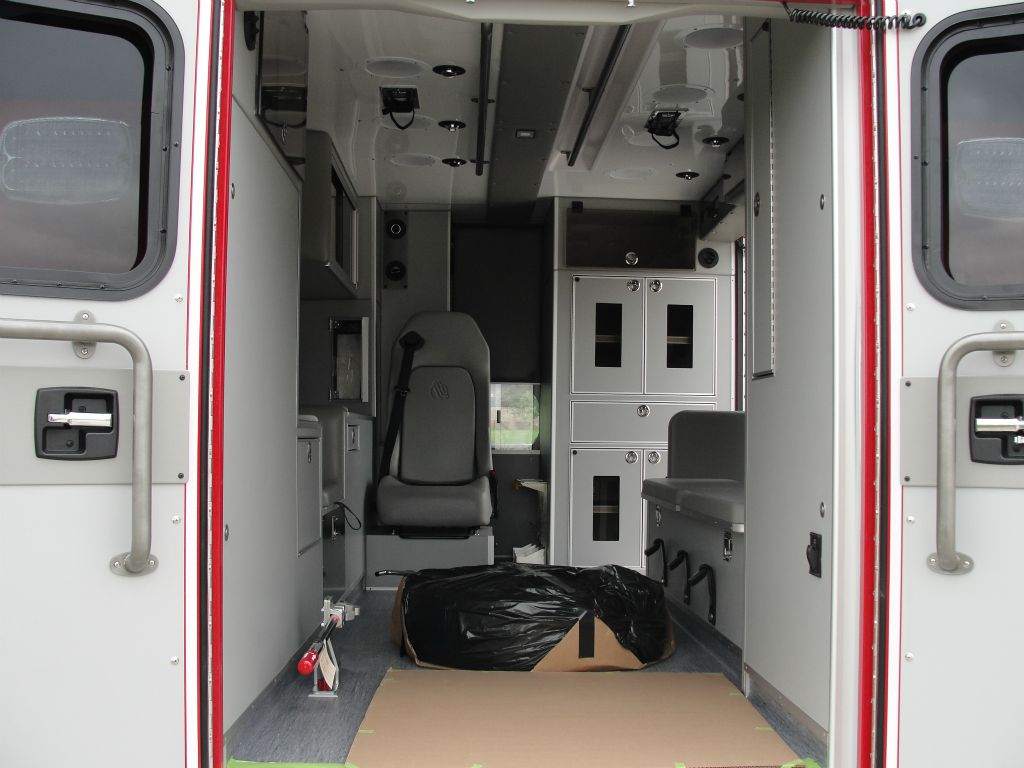

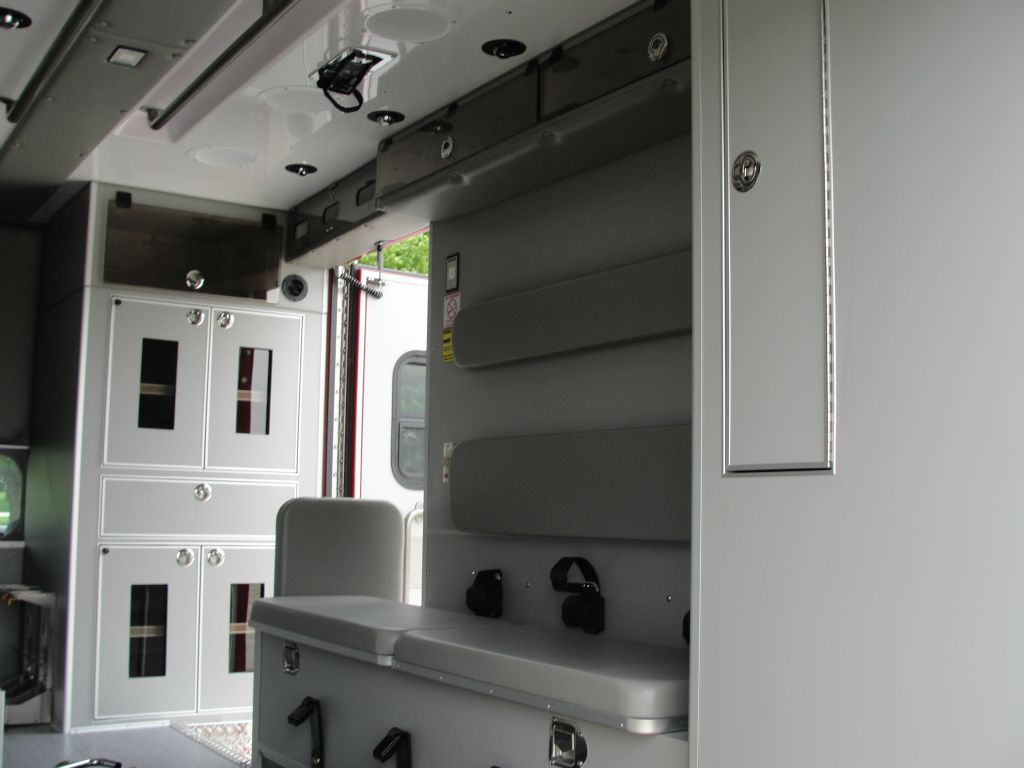

• Action Area: Mica finished to match interior
• Upholstery: Vacuum Formed-Light Gray
• Stainless Steel Wheel Inserts
• Wheelbase: 189"
• FAWR: 7,000
• RAWR: 12,000
• GVWR: 16,500
