KNOXVILLE TOWNSHIP FIRE DEPARTMENT
KNOXVILLE, IOWA
Technical Specs
• Peterbilt 348, 2-Door Chassis
• Paccar PX-9, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

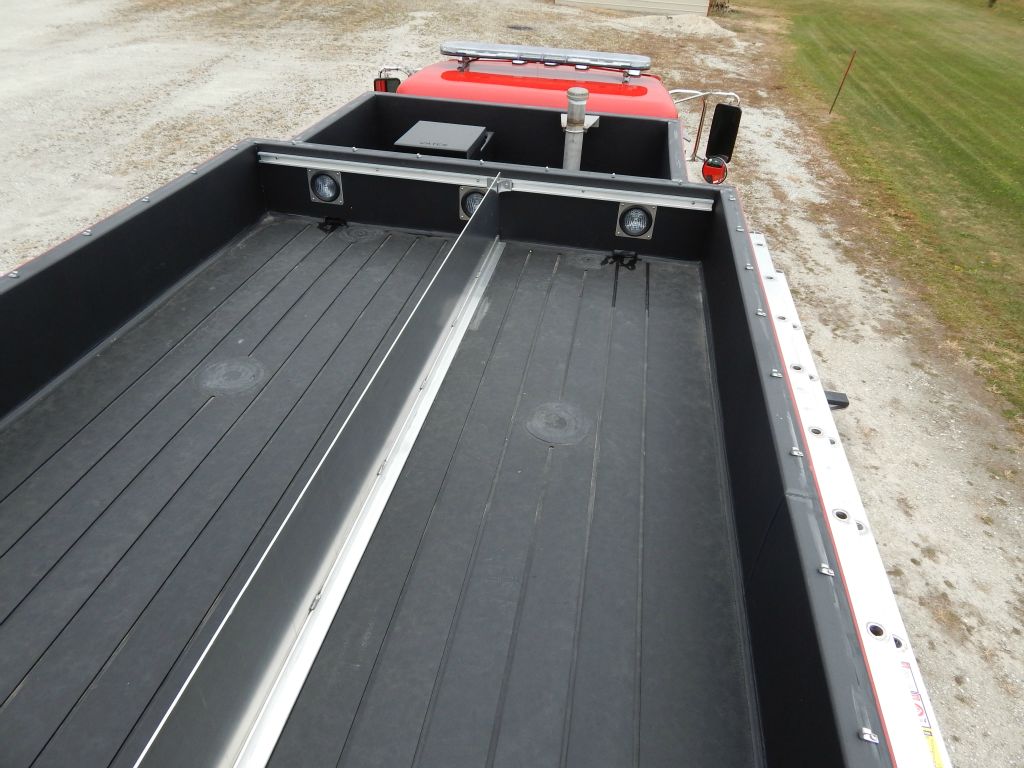

• Heavy Duty 3/16" Aluminum Body
• ROM Roll Up Doors
• 2000-Gallon Poly Tank
• One (1) 2 ½" Fireman's Friend Tank fill, rear
• One (1) Newton 10" square electric swivel Dump with 36" manual extension
• Darley LDM, 1000-GPM Pump
• Pump operator's panel under tank left side
• Three (3) 2 ½" Discharges, two (2) left side and one (1) right side
• Two (2) 3" Discharges, one (1) right side and one (1) over pump for Deck Gun
• Two (2) 1 ½" Mattydale Preconnects, ahead of tank
• One (1) 2 ½" Gated Suction, left side
• On Spot Automatic Tire chains
• Folding Tank Rack storage, top of compartments on the right side
• Suction Hose storage, top of compartments left side
• Ladder brackets, right side
• Two (2) Walk-Away Air pack brackets, right side
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Kussmaul Air Eject
• Floor mounted console for Emergency switches, cab
• Whelen Electronic Siren with 100-watt Cast Products speaker
• Four (4) Whelen LED Scene lights, one (1) each side and two (2) rear
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 9' 9" Overall height
• 28' 8" Overall length
• 229" Wheelbase
• 159.2" Cab to Axle
• 14,600 FAWR
• 30,000 RAWR
• 44,600 GVWR
