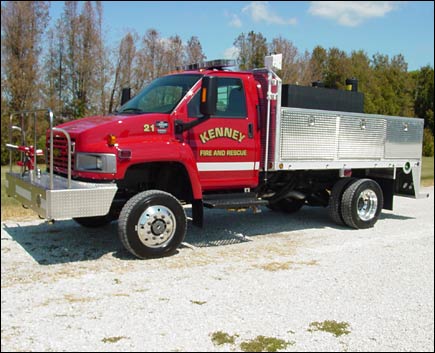

Kenney Fire Protection
District
Kenney, Illinois
Technical Specs
• Chevrolet 5500, 2-Door
4x4 Chassis
• Duramax 6.6L, 330-HP Diesel Engine
• Allison 1000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 500-Gallon Rectangular Poly Tank with 20-Gallon
foam tank
• Hale HPX300, 160-GPM Pump with Briggs &
Stratton 26-Hp diesel engine
• One (1) 2 ½" Discharge and one
(1) 1 ½" Discharge, rear
• One (1) 1 ½" Preconnect, front
bumper
• Two (2) Electrically controlled spray booms
in the front bumper
• Foam Pro 1600 Foam System
• One (1) Elkhart sidewinder front bumper turret
with remote controlled nozzle
• Front Bumper Extension with Stainless Steel
Grass Railing
• Hosewell with Hypalon cover, right side front
bumper extension
• Two (2) compartments with three (3) drop down
doors each, one (1) each side
• One (1) Hose tray with Hypalon cover located
over the right side compartments
• Two (2) Akron Extenda-Lite 12-volt Telescopic
Flood/Spot lights, one (1) each side of headache rack
• Code-3 Electronic Siren with 100-watt Federal
speaker
• Whelen Warning Light package
• 8' 8" Overall height
• 22' 4" Overall length
• 152" Wheelbase
• 84" Cab to Axle
• 8,000 FAWR
• 13,500 RAWR
19,500 GVWR
|
