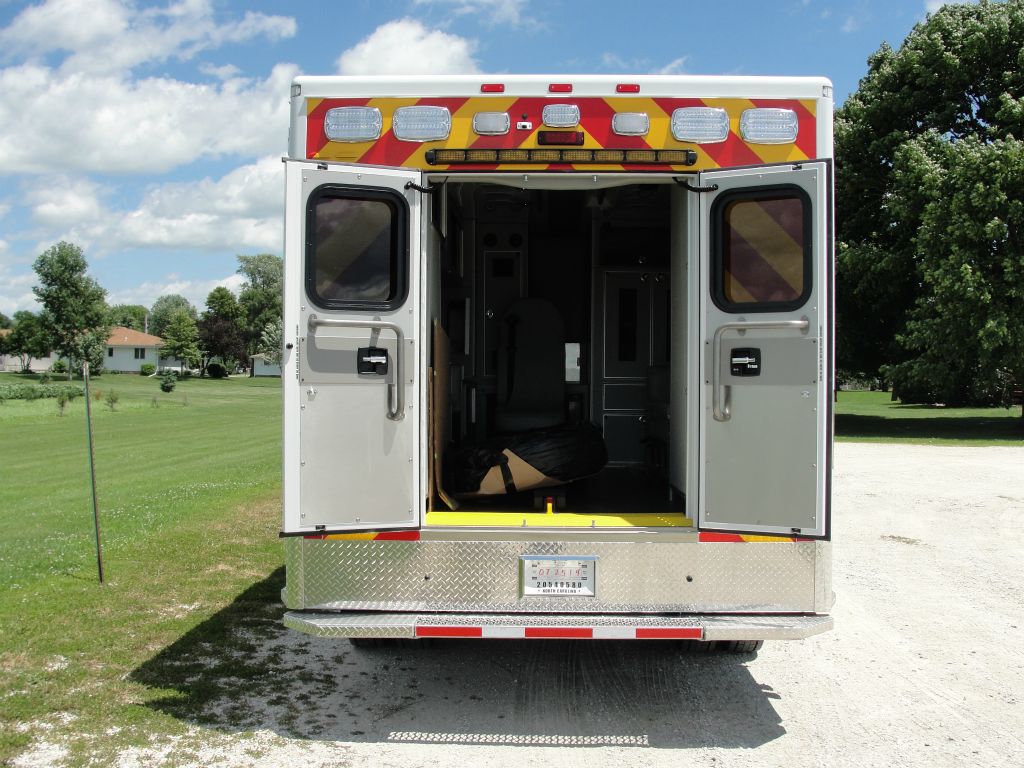

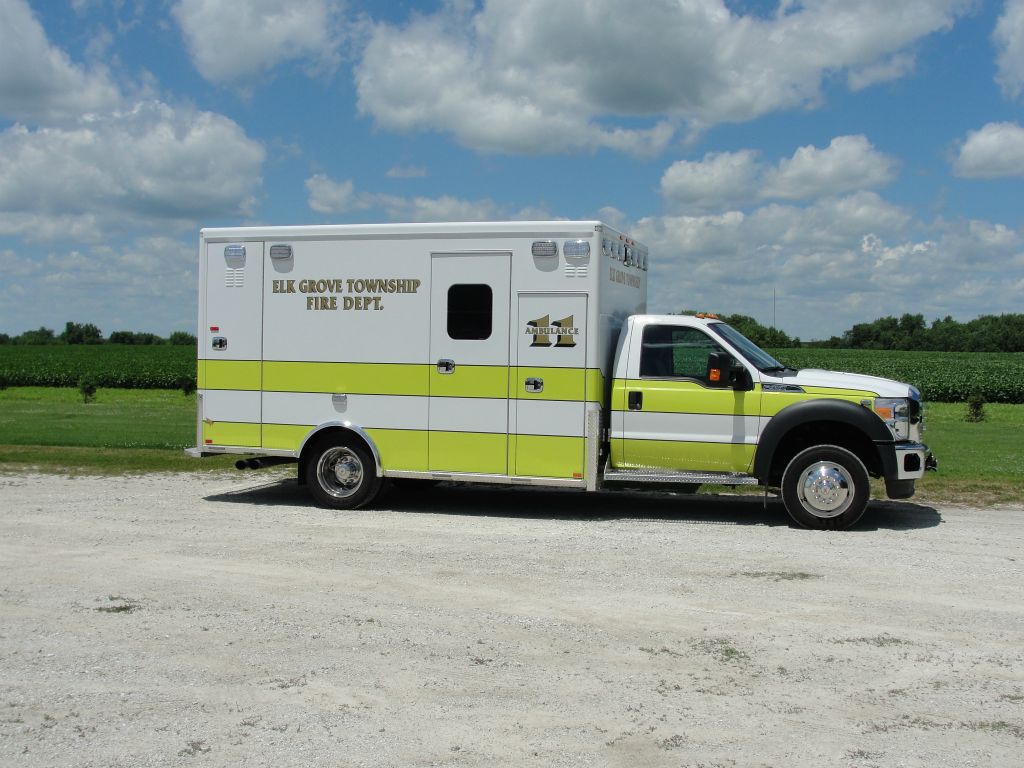

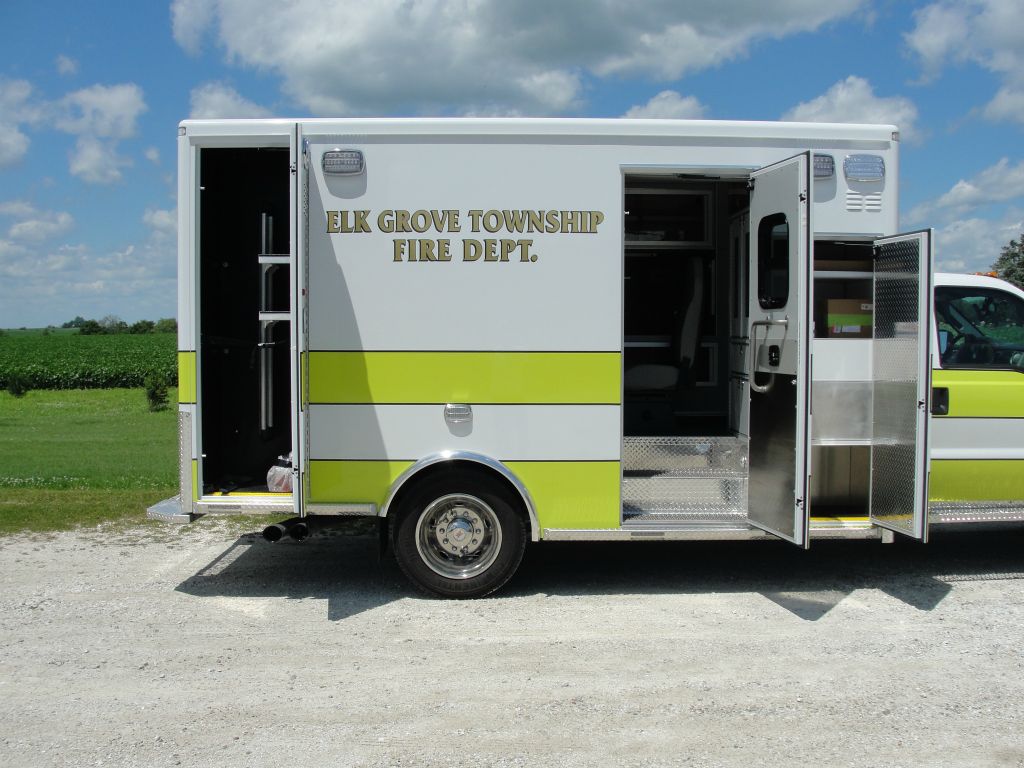

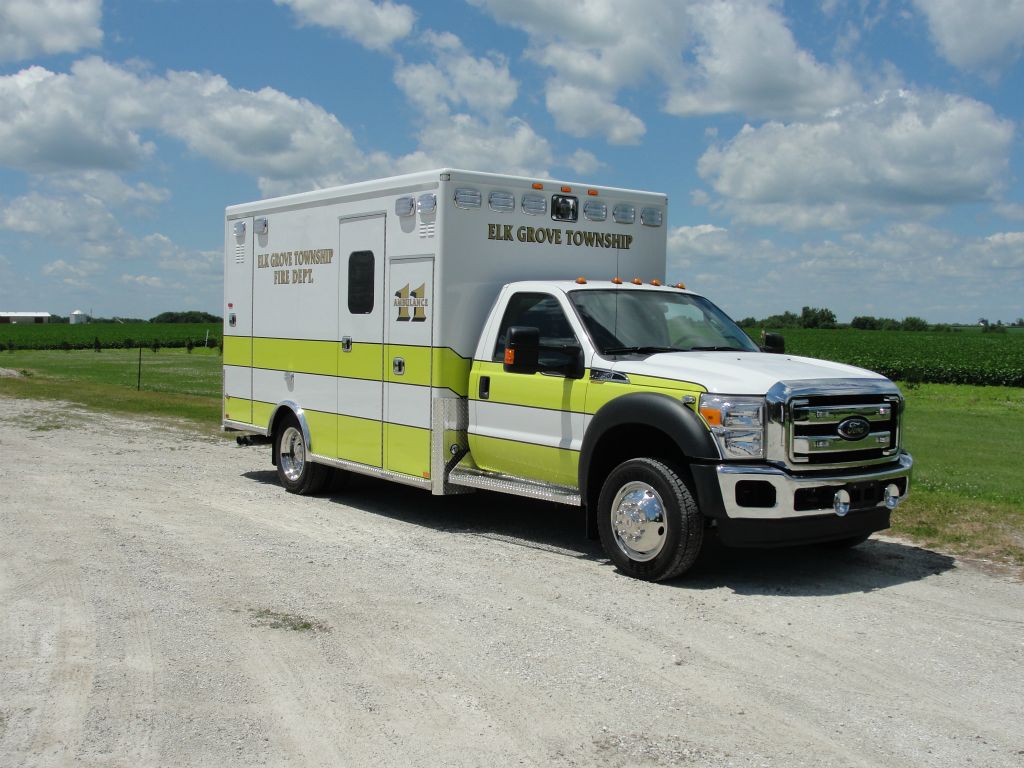

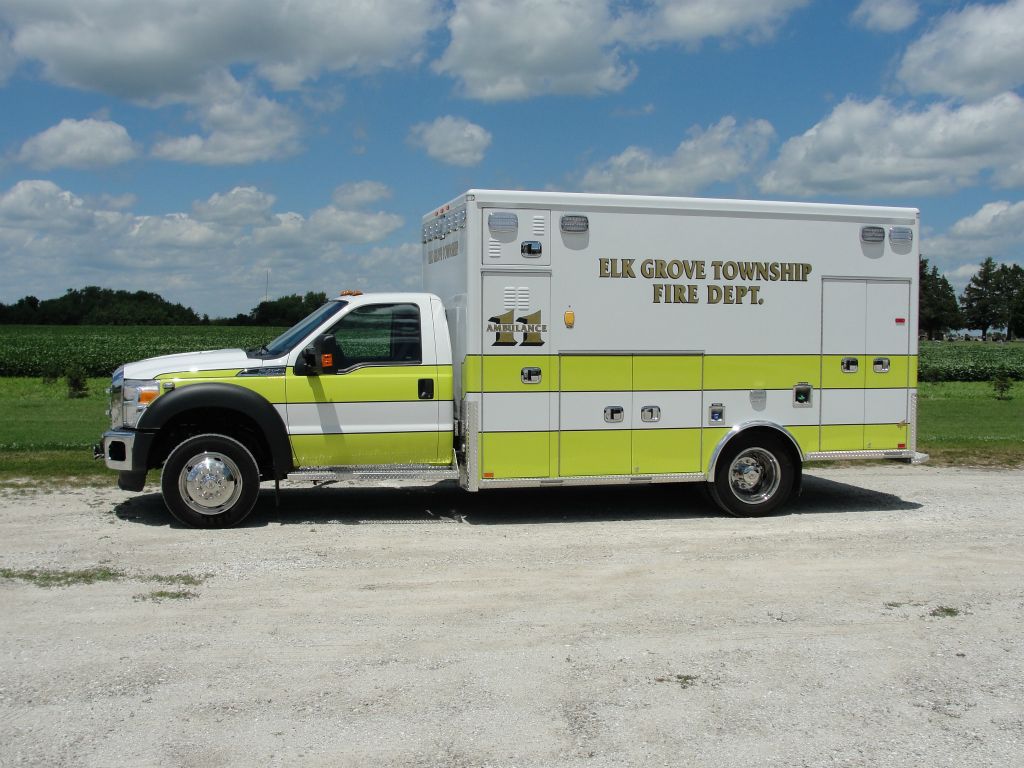

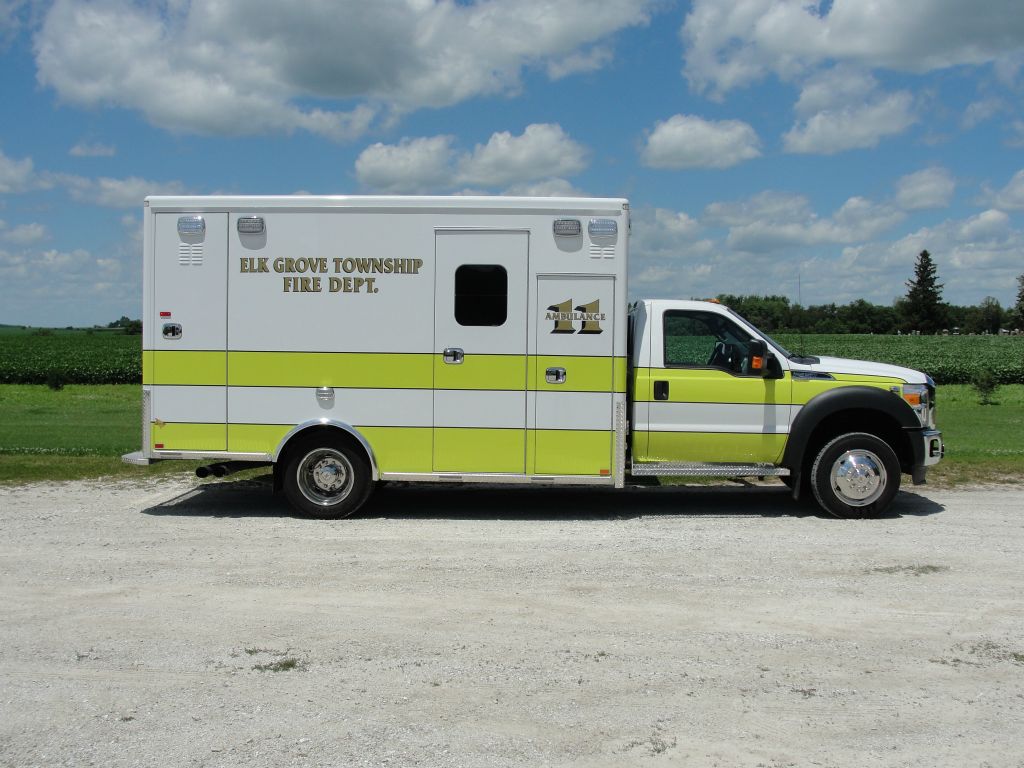

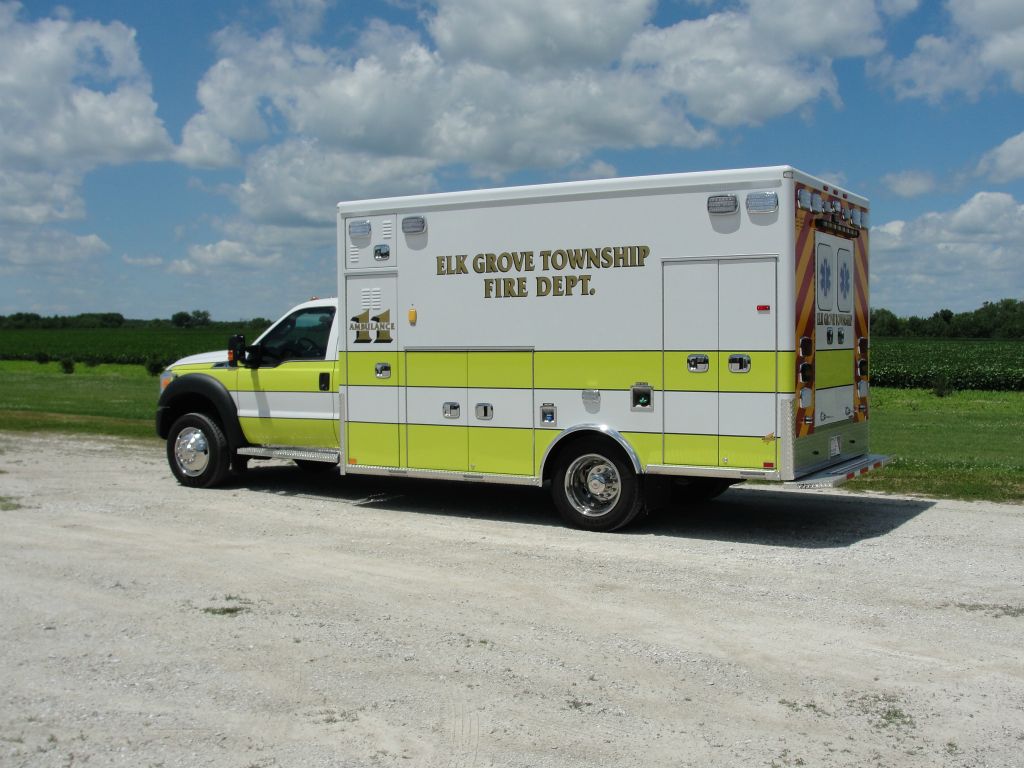

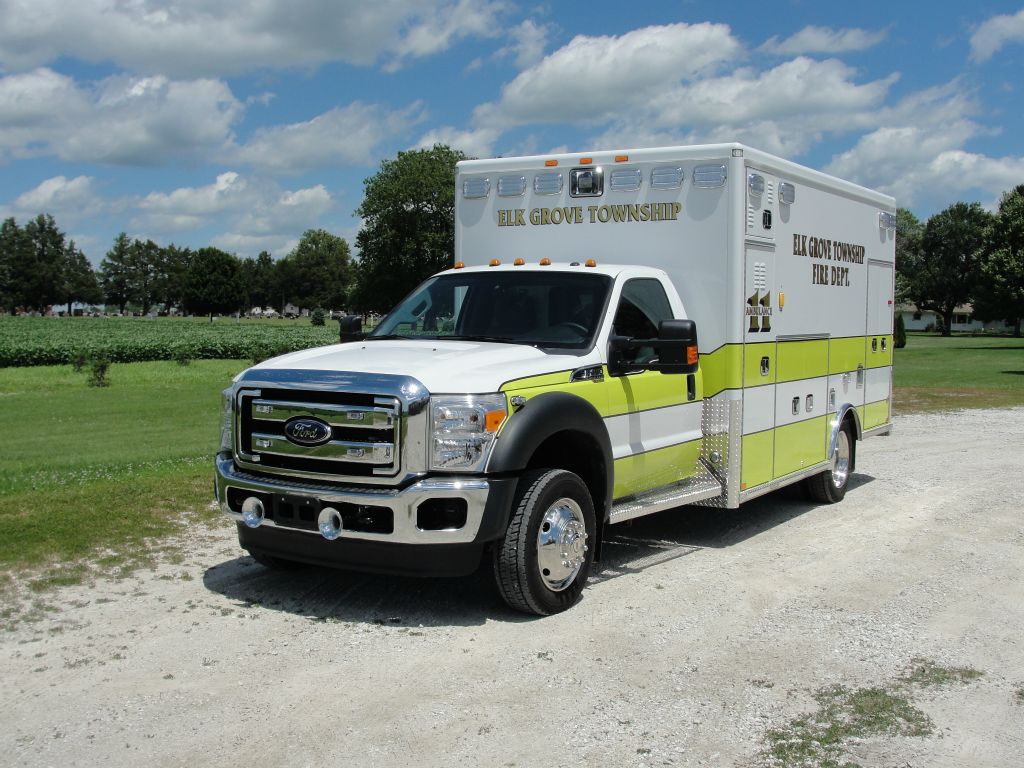

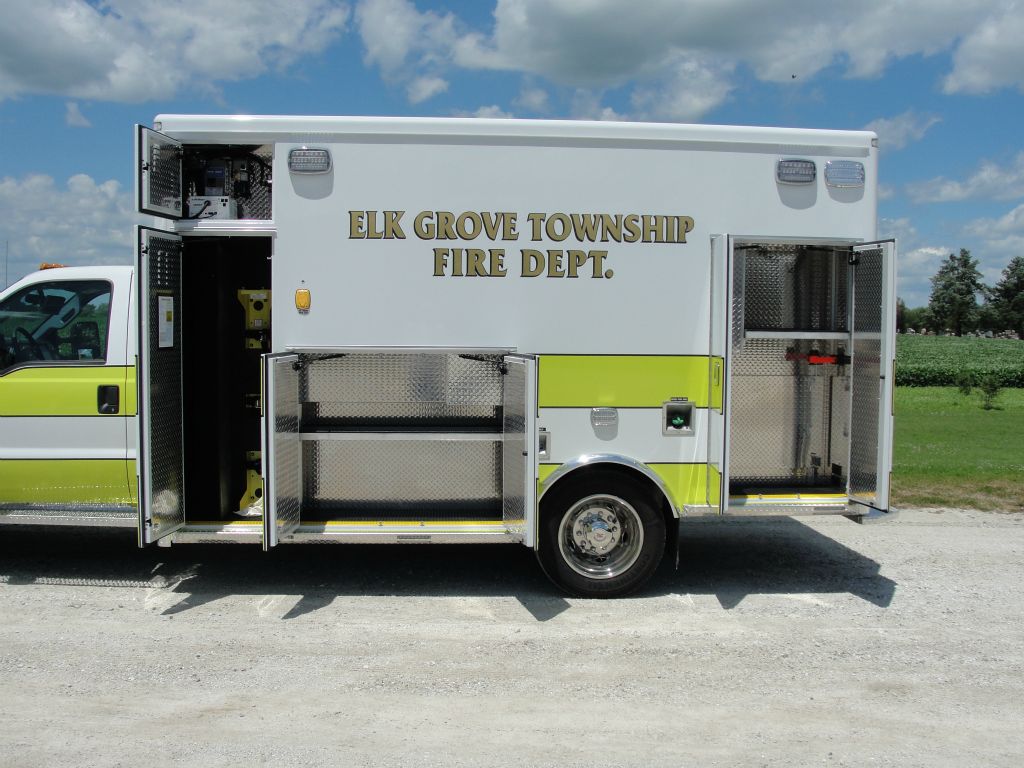

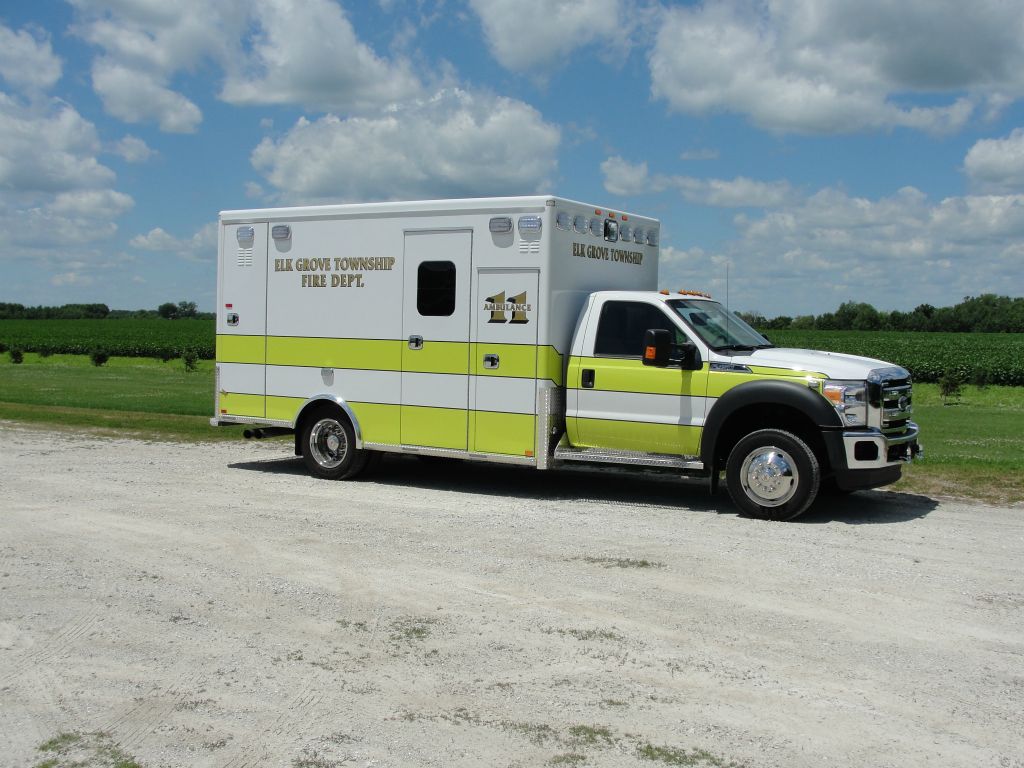

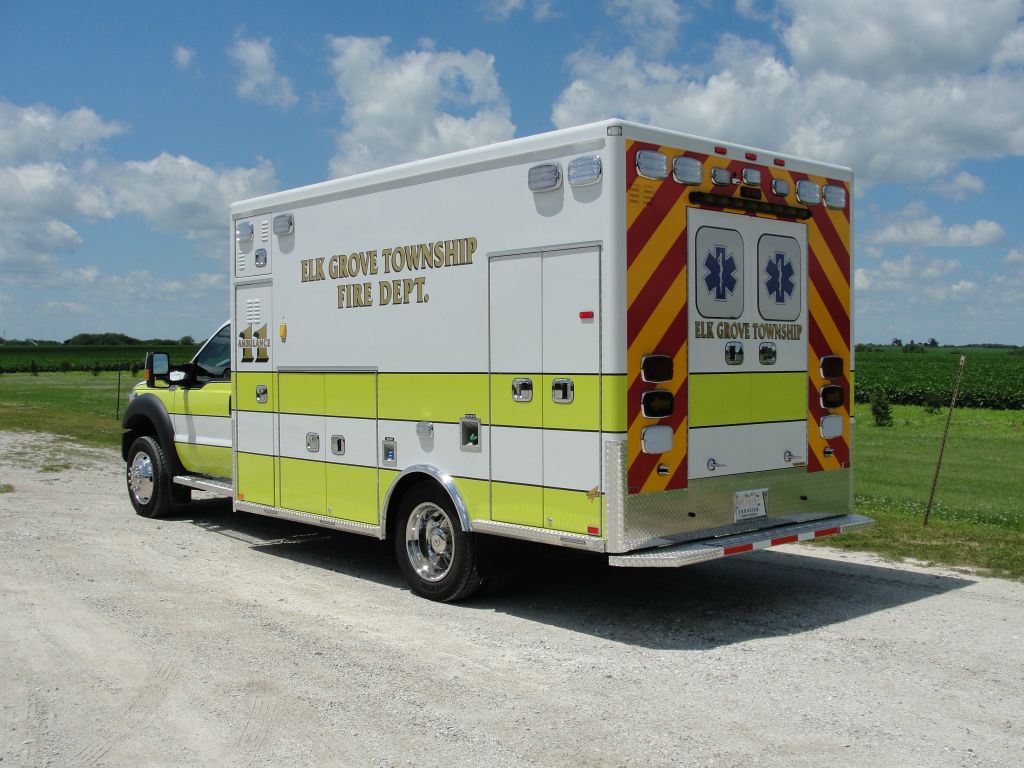

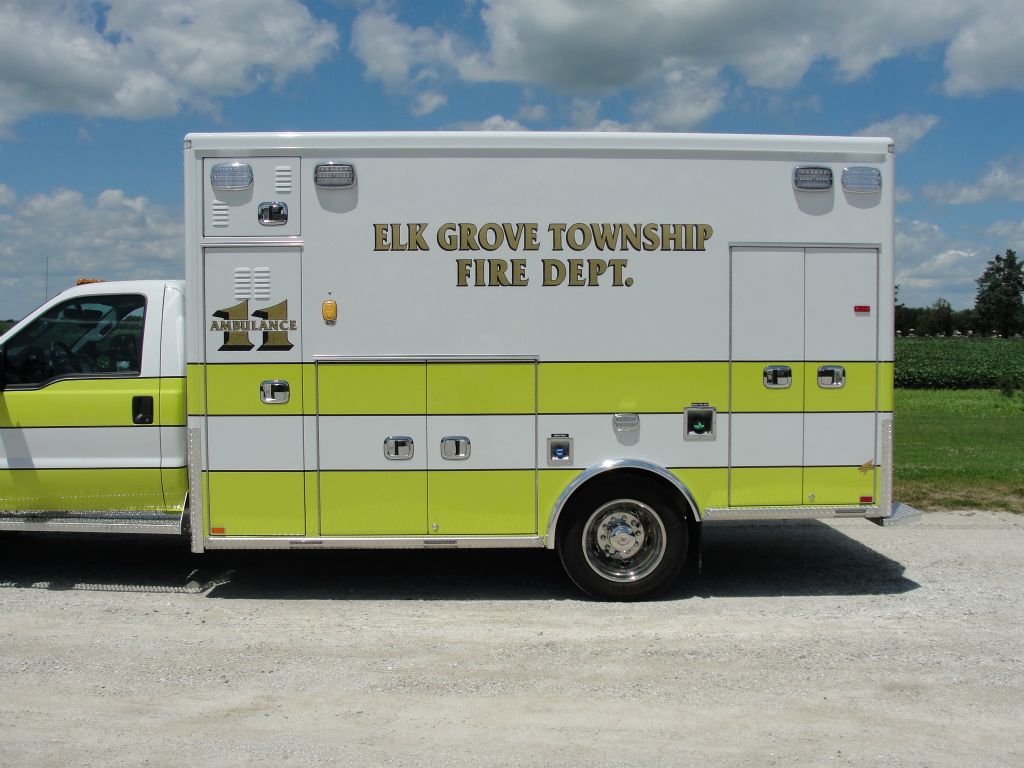

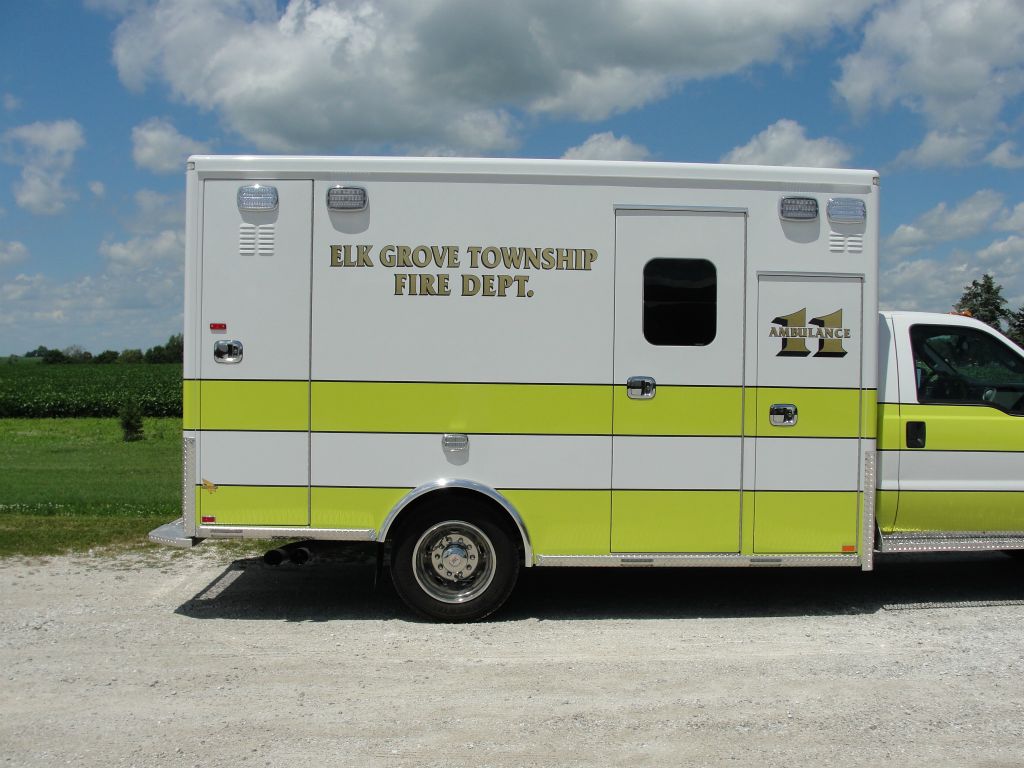

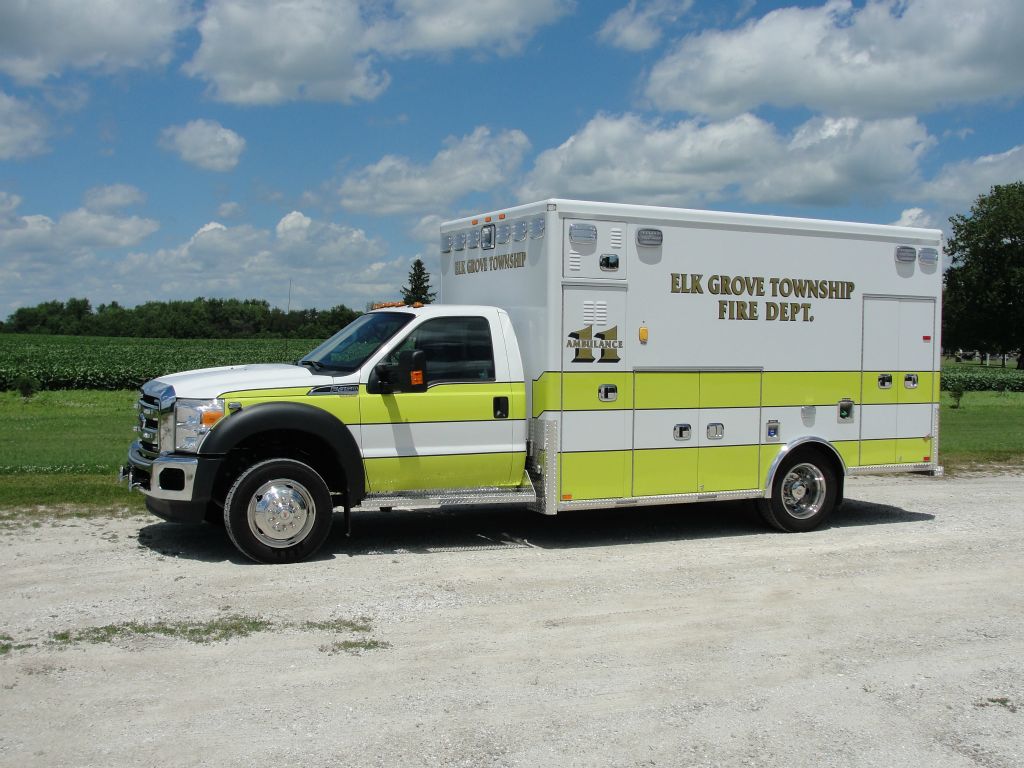

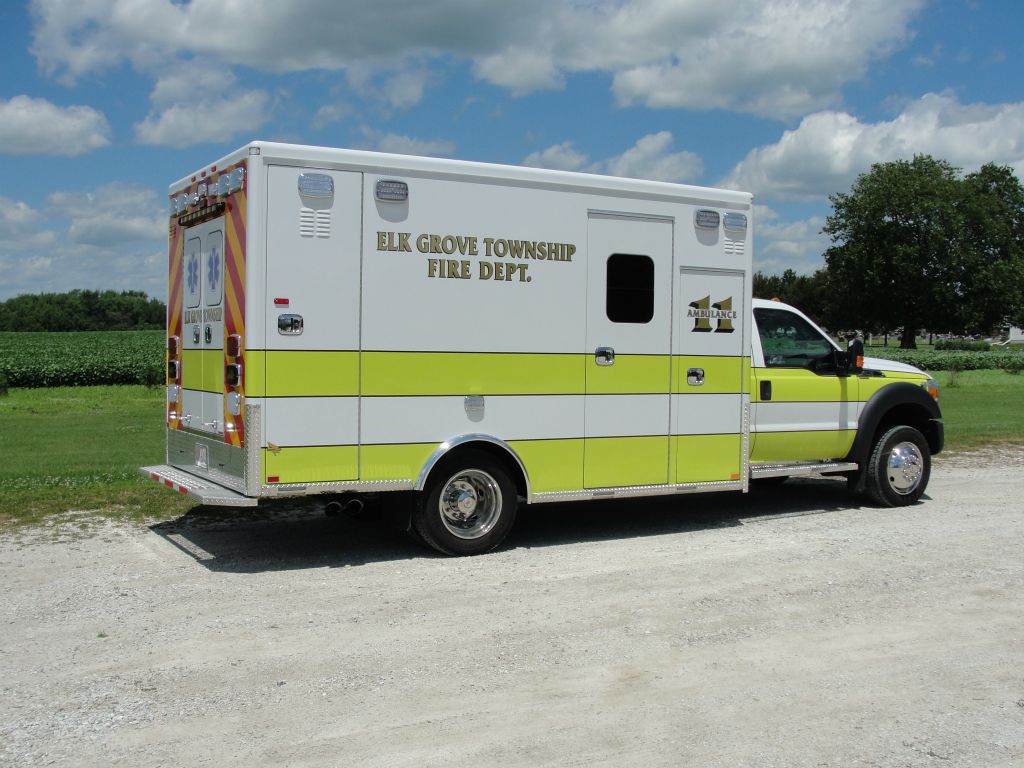

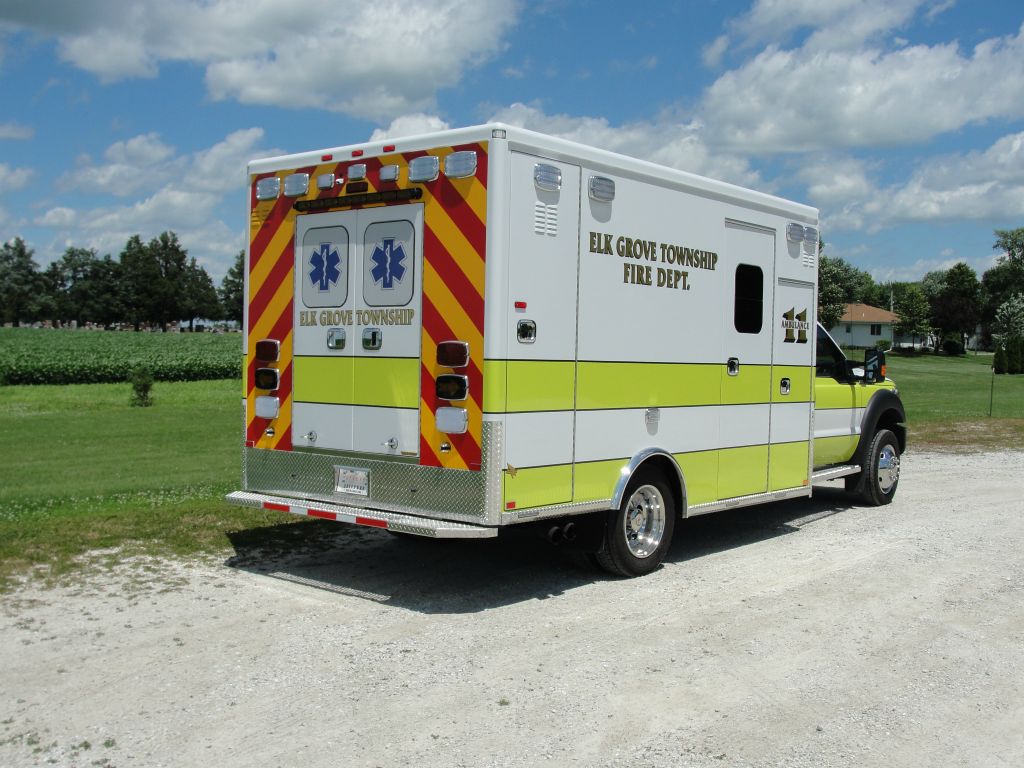

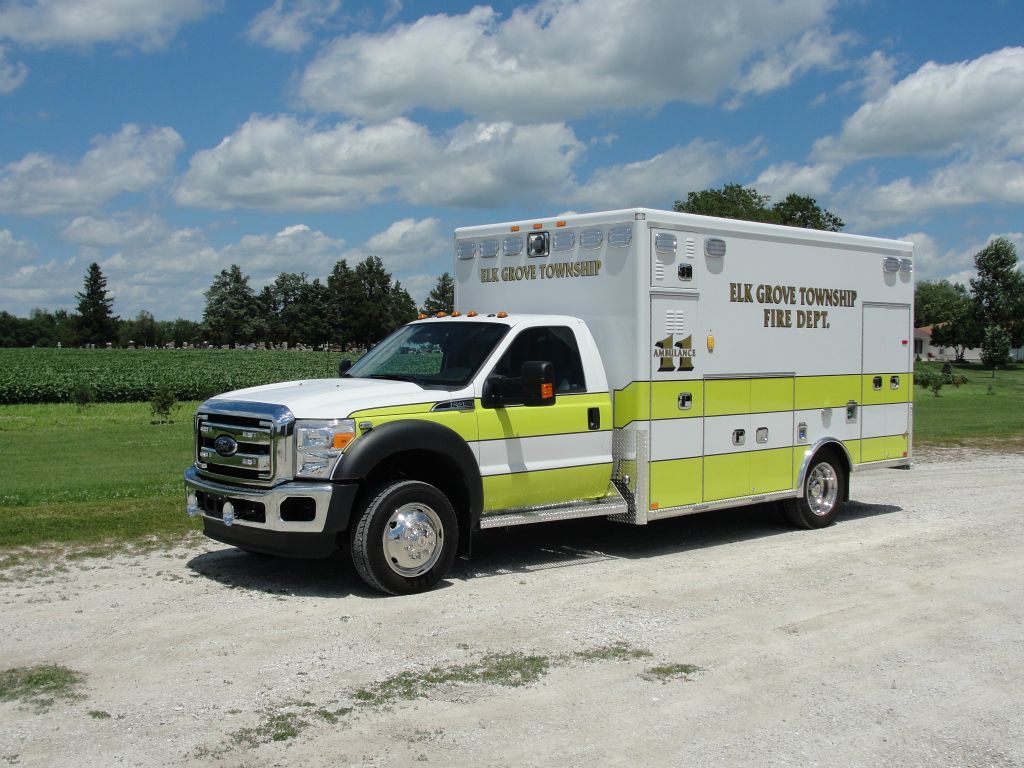

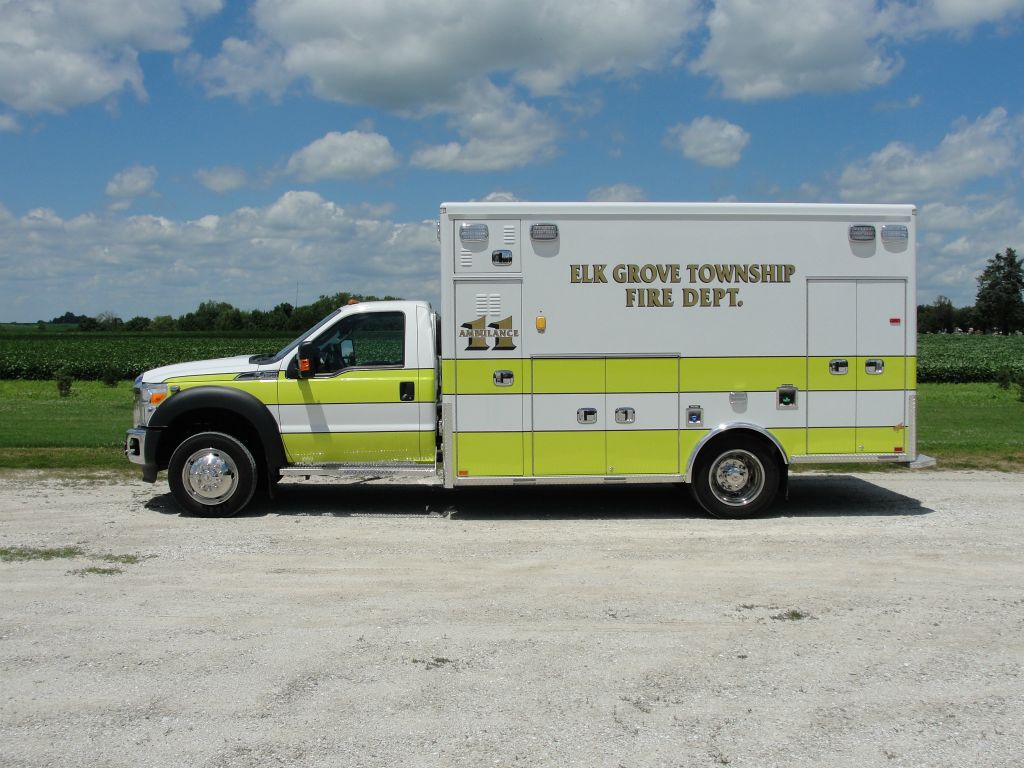

TYPE I AMBULANCE #A214
ELK GROVE TOWNSHIP FIRE PROTECTION DISTRICT
ARLINGTON HEIGHTS, ILLINOIS

Technical Specs

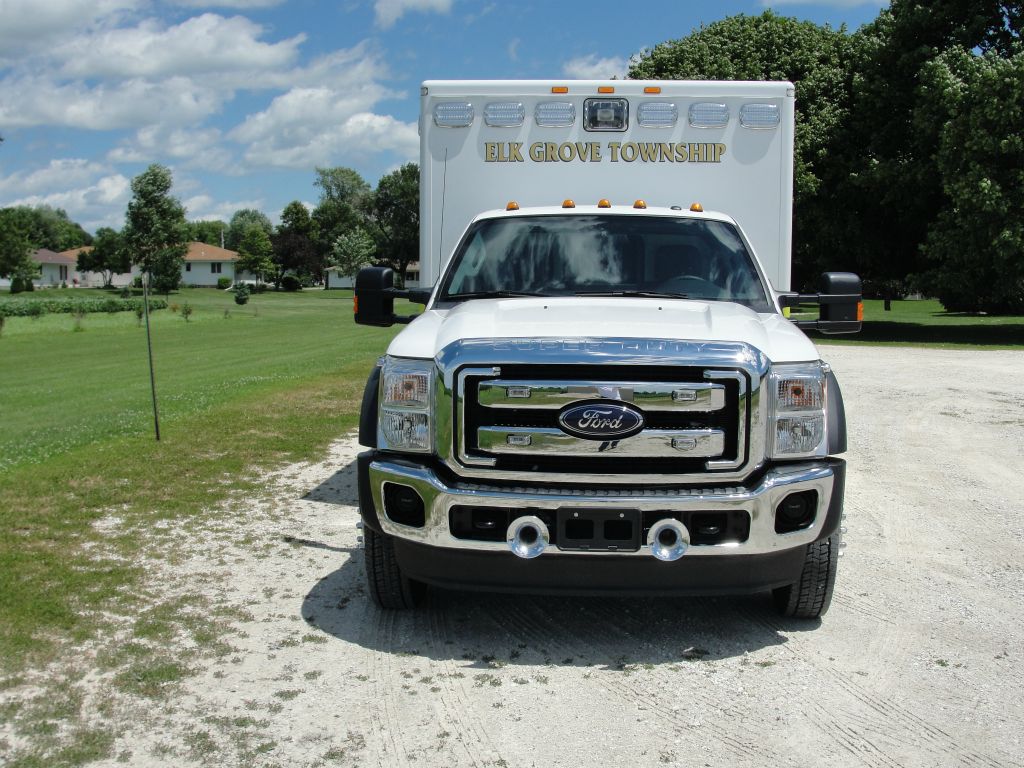

• Chassis: Ford F-450 4 x 2
• Engine: 6.7 Scorpion
• Transmission: Ford HD 6 speed automatic

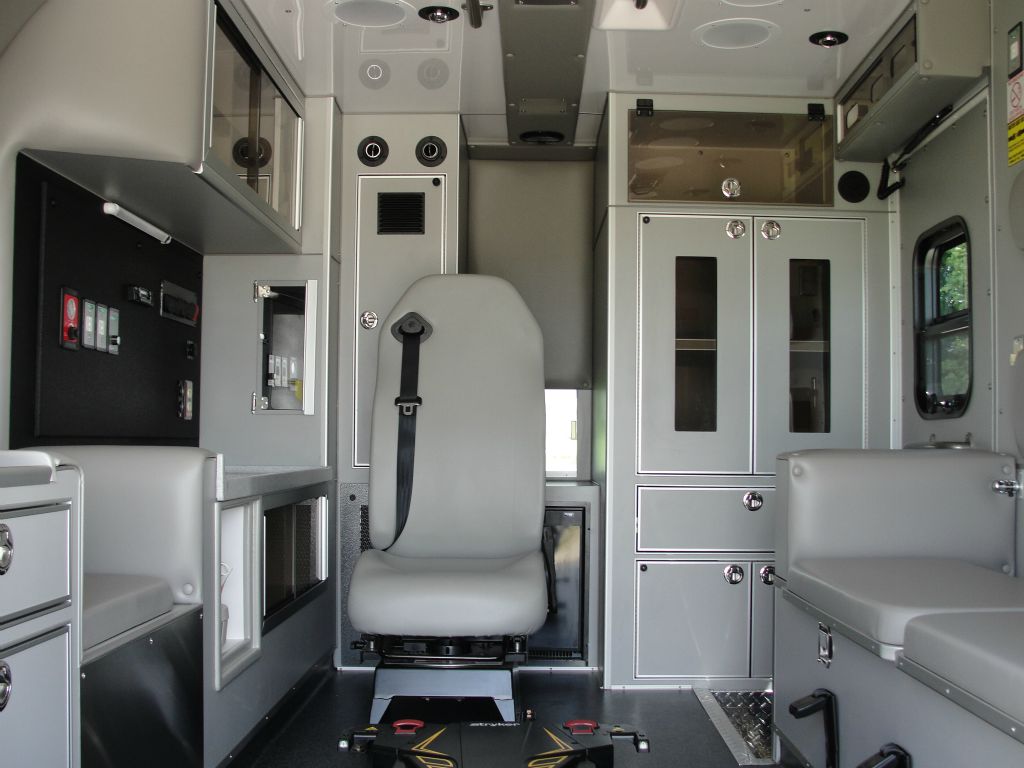

• Attendant Seat: EVS Child Safety Seat; 3 pt. harness
• AEV Extruded Aluminum Body
• 6" Body Drop on both sides
• Custom paint & stripping to match existing fleet
• Size/Headroom: Interior 72" Finished
• Shoreline: Auto eject w/indicator light
• Link Air Ride rear suspension

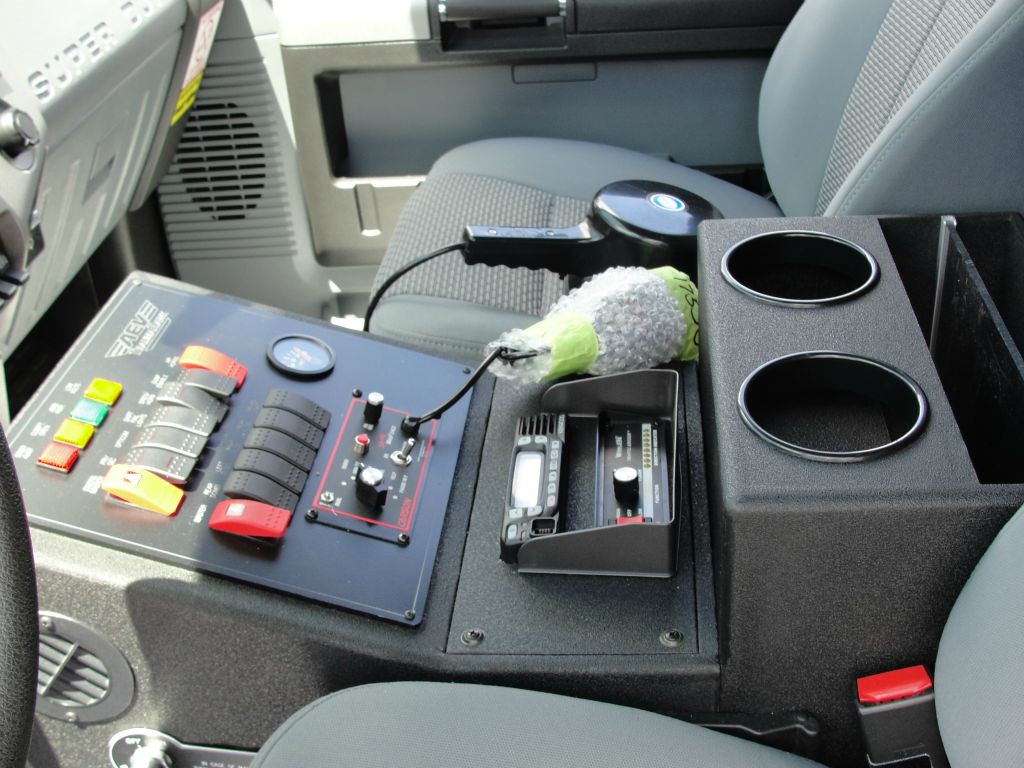

• Siren: Carsen SA-441 200 watt w/ Whelen bumper mounted speakers
• Air horn: Buell Dual 10" & 12" Strombos thru bumper installation
• Patient lights: Kinequip LED
• Warning Light package: Whelen M series LED package
• Whelen Skirtrail Lights with white ground lighting
• Scene Lights Whelen M Series LED
• Opticom: 792H GTT Opticom

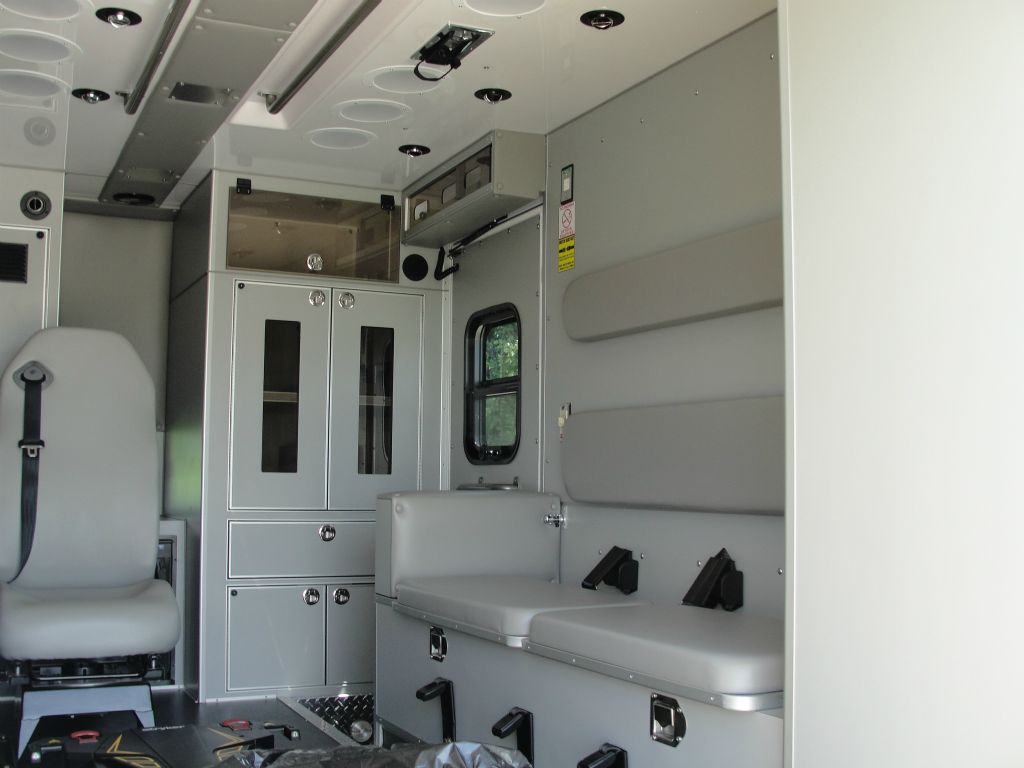

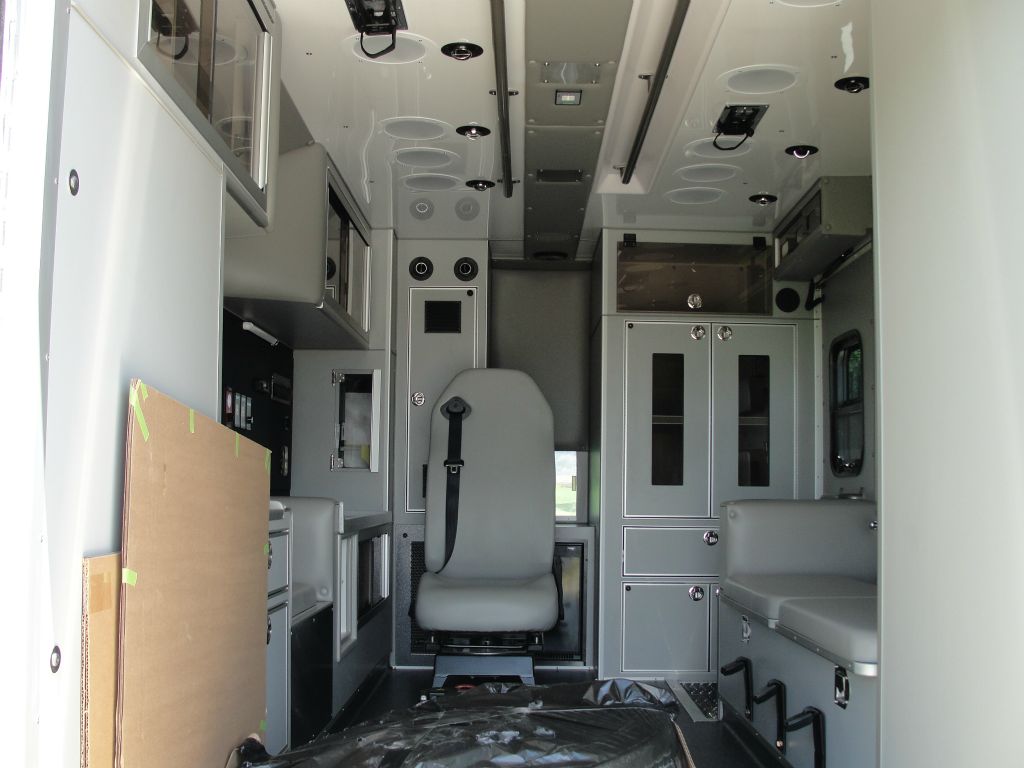

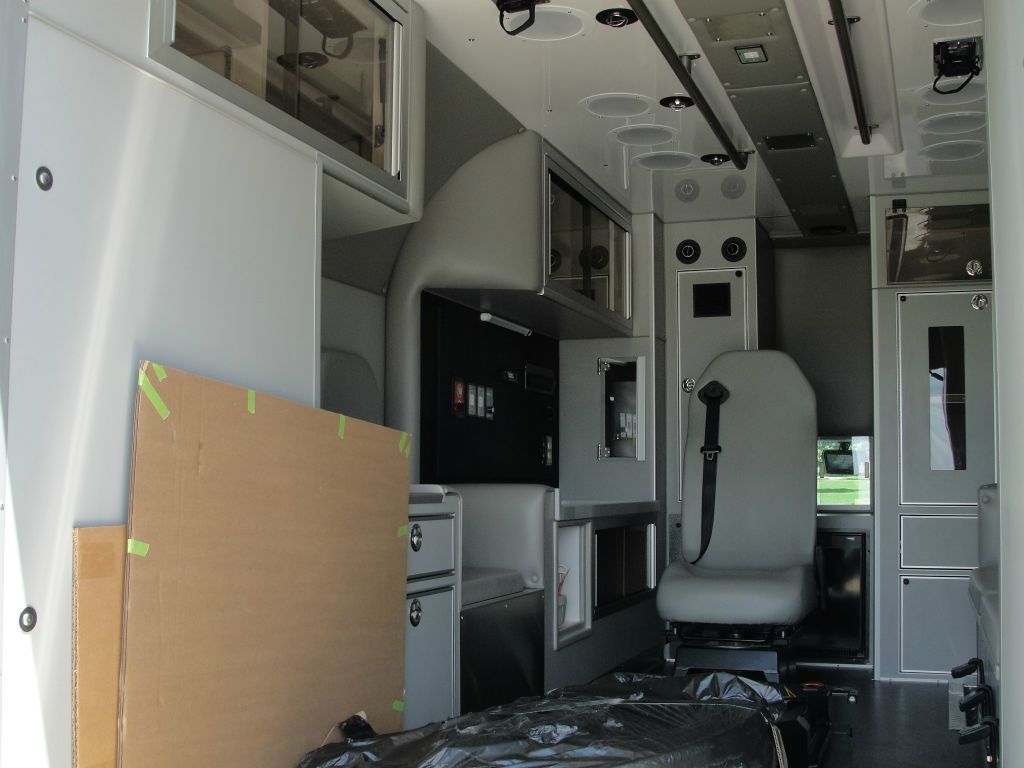

• Interior cabinets equipped with "Day bright" LED lighting
• Stryker "Power Load" cot system
• Electrical: RMR
• Camera: Bullet Camera– (1) Ext. Back Up
• Power Door Locks w/override in grill area
• Action Area: Solid Surface A/A – Steel Gray Tempest
• Upholstery: Vacuum Formed-Light Gray

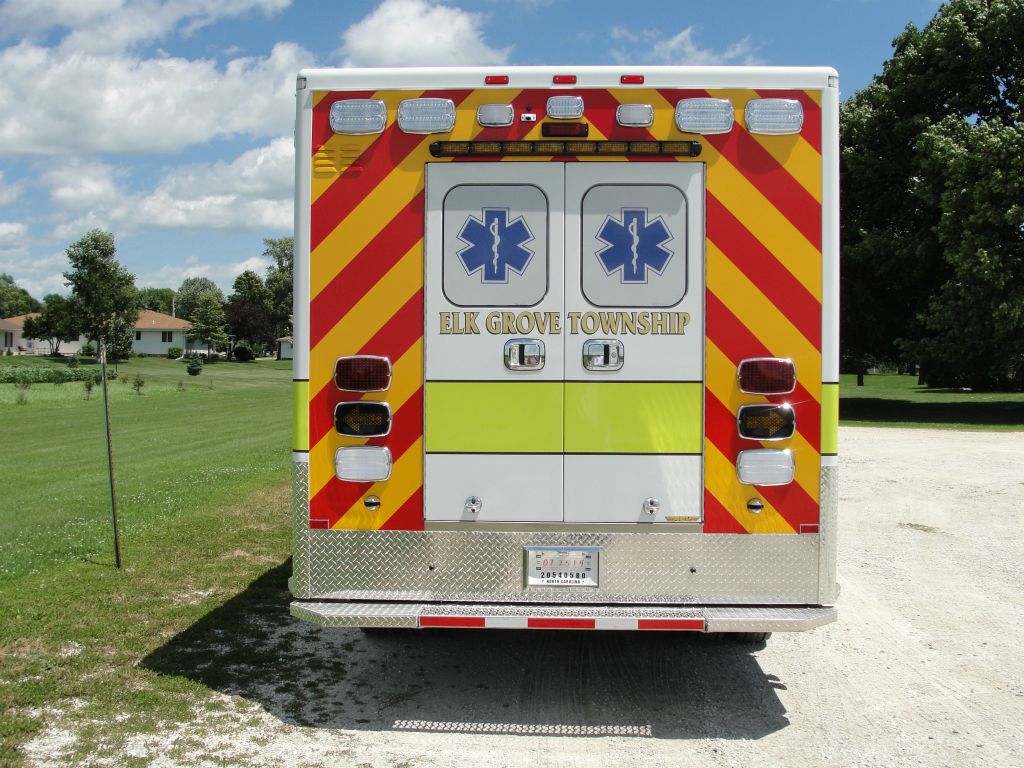

• Rear Traffic Advisor Whelen TAL 85
• Norcold 1.7 Cu Ft refrigerator
• Stainless Steel Wheel Inserts
• Wheelbase: 189"
• FAWR: 7,000
• RAWR: 12,000
• GVWR: 16,500

Download Spec Sheet »







Alexis Fire Equipment would like to thank the members of the
ELK GROVE TOWNSHIP FIRE PROTECTION DISTRICT for their business.
