BLOOMINGDALE FIRE PROTECTION DISTRICT
BLOOMINGDALE, ILLINOIS
Technical Specs

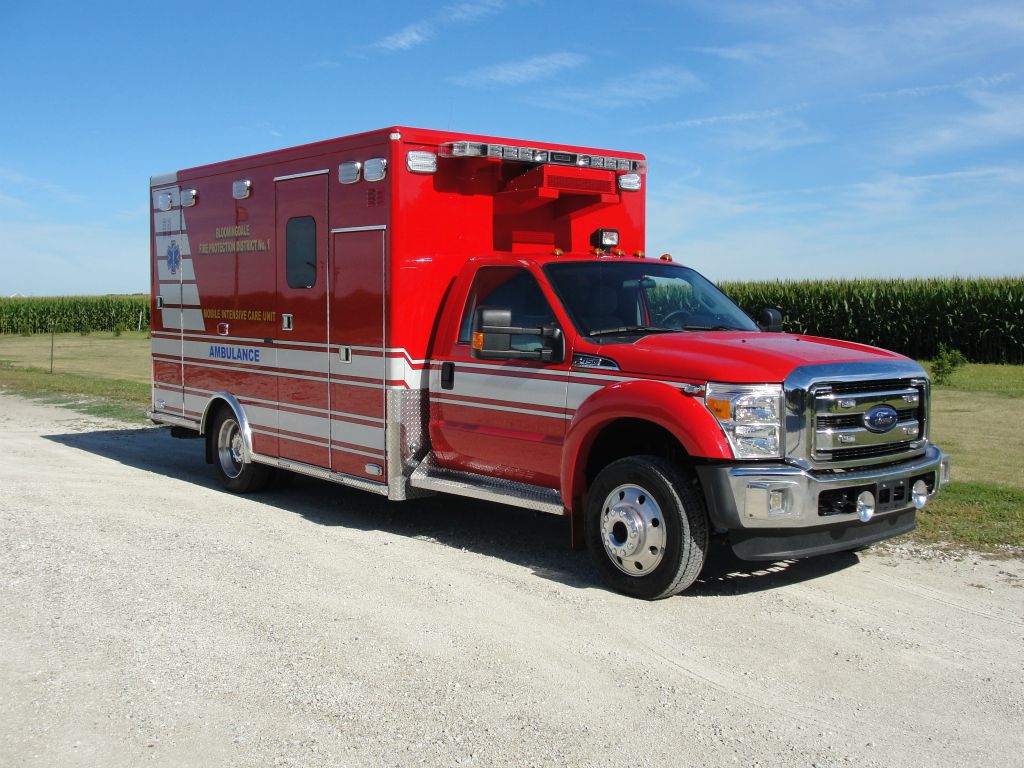

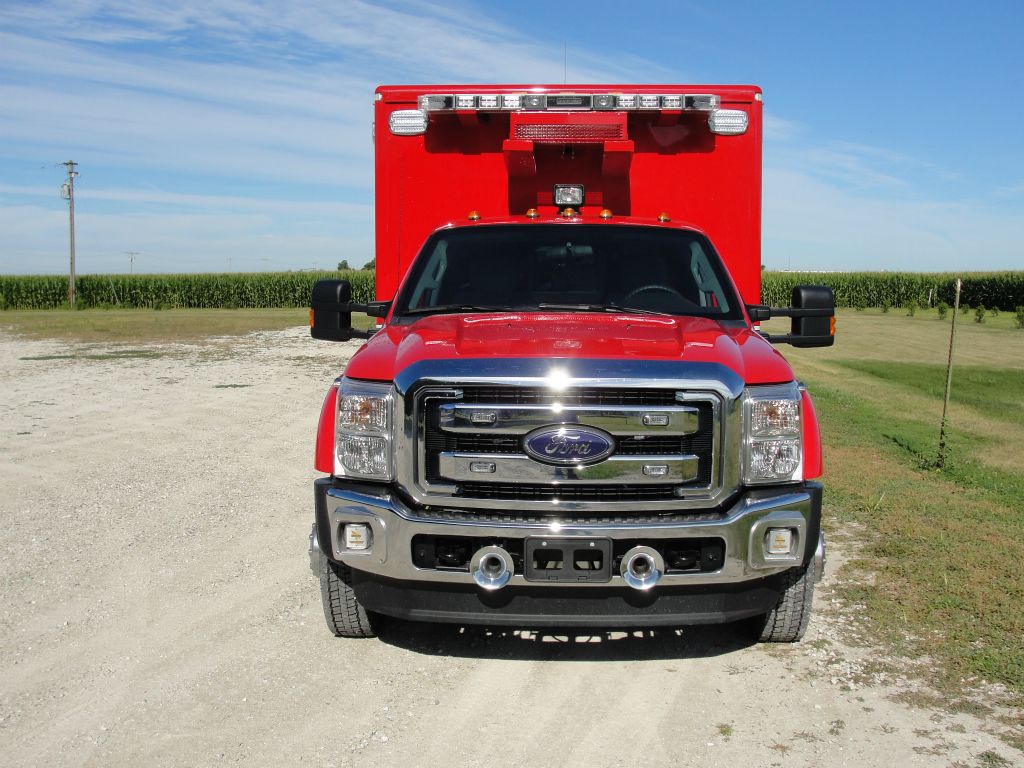

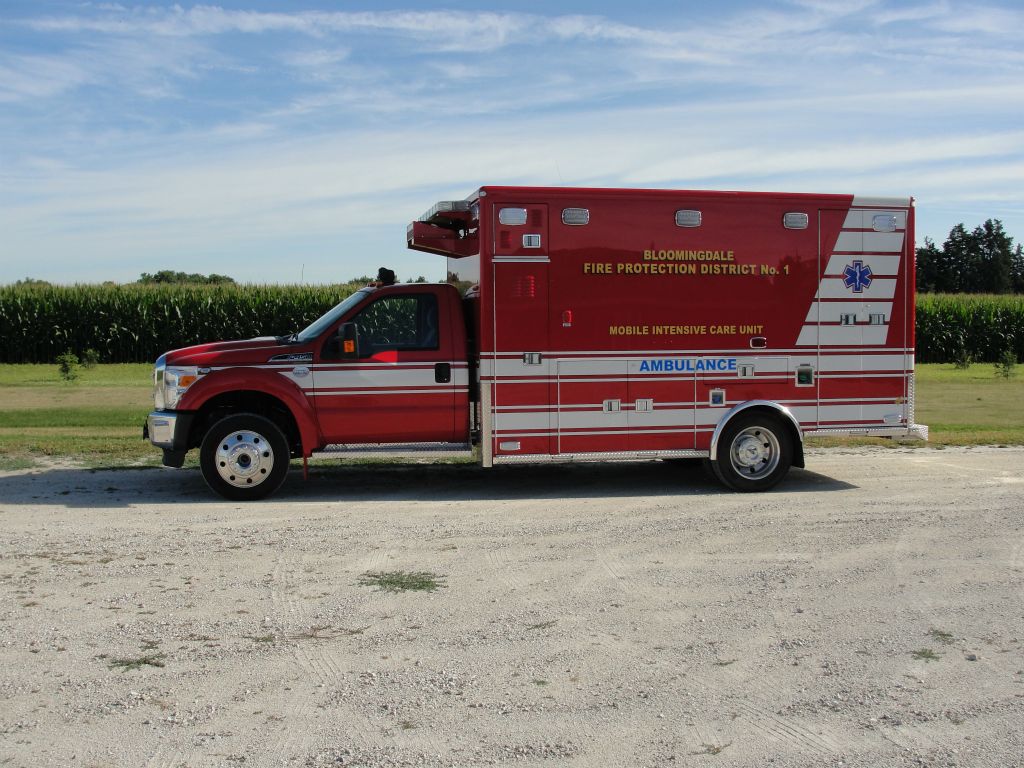

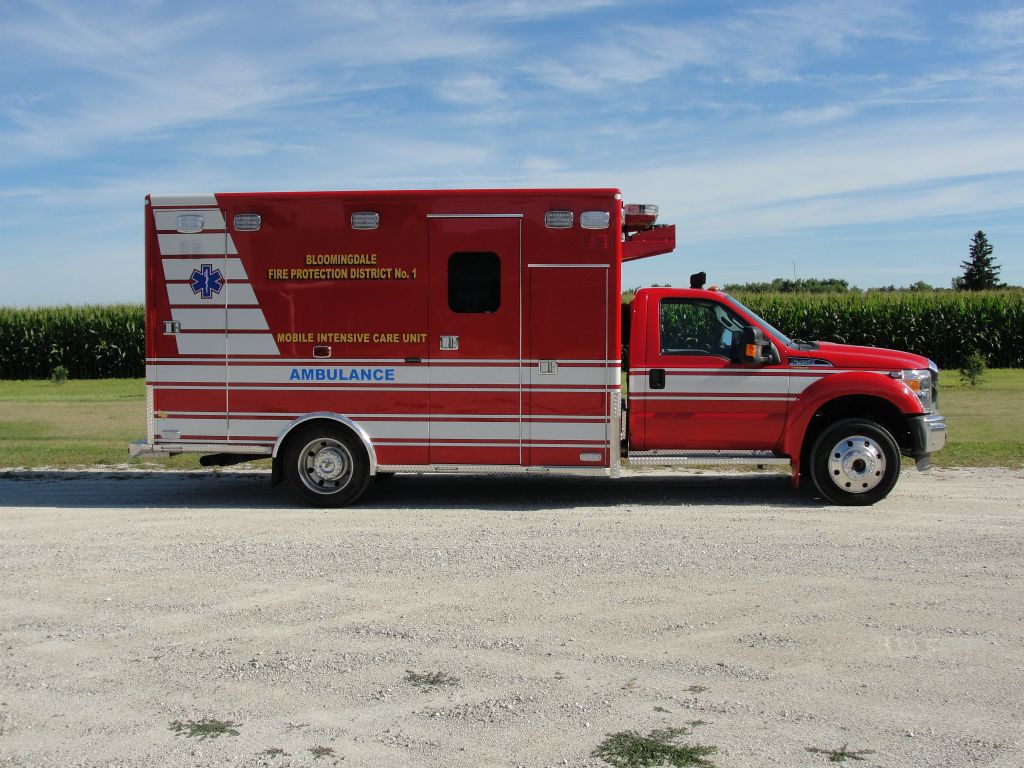

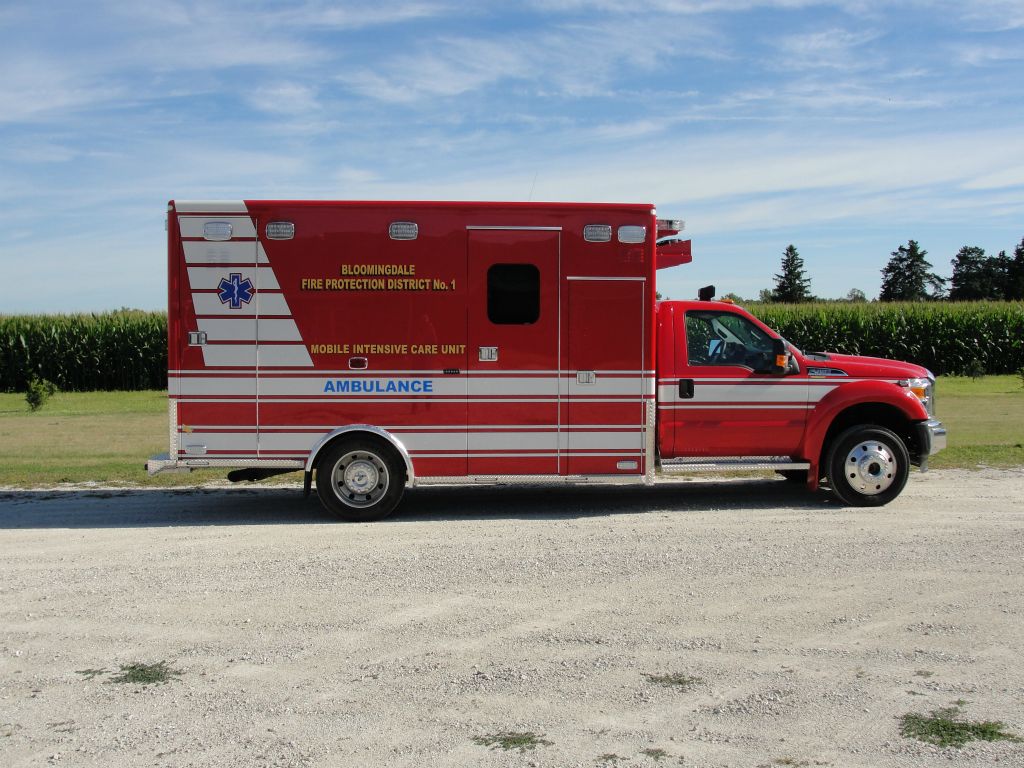

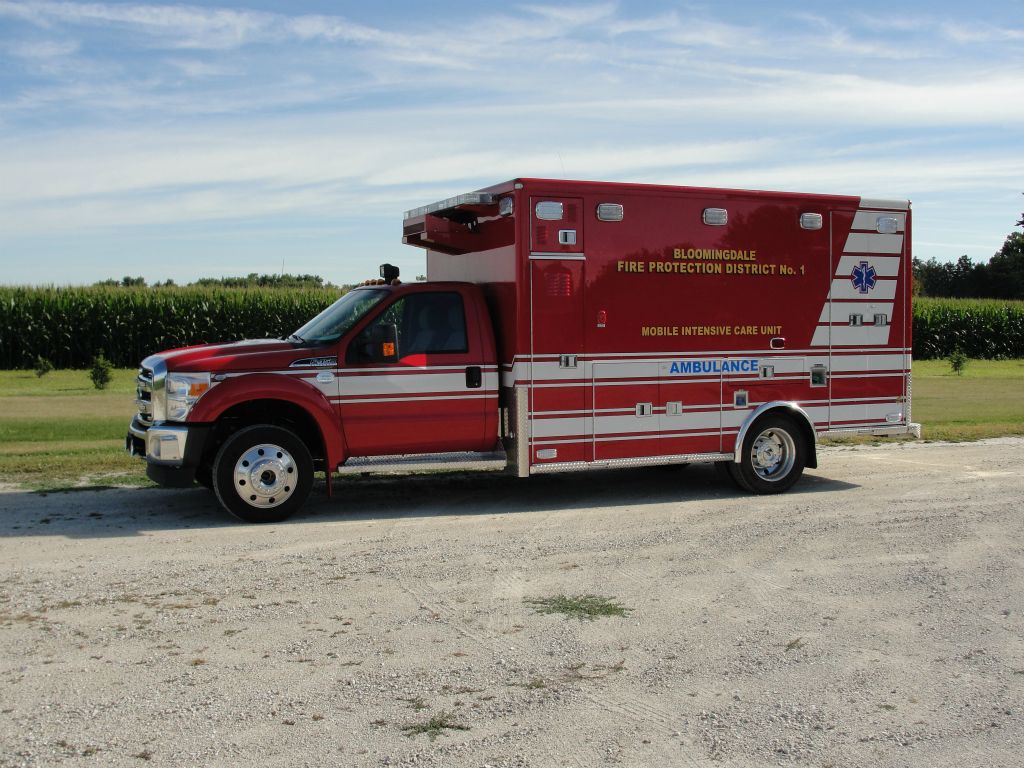

• Chassis: Ford F-450 4 x 4
• Engine: 6.7 Scorpion
• Transmission: Ford HD 6 speed automatic

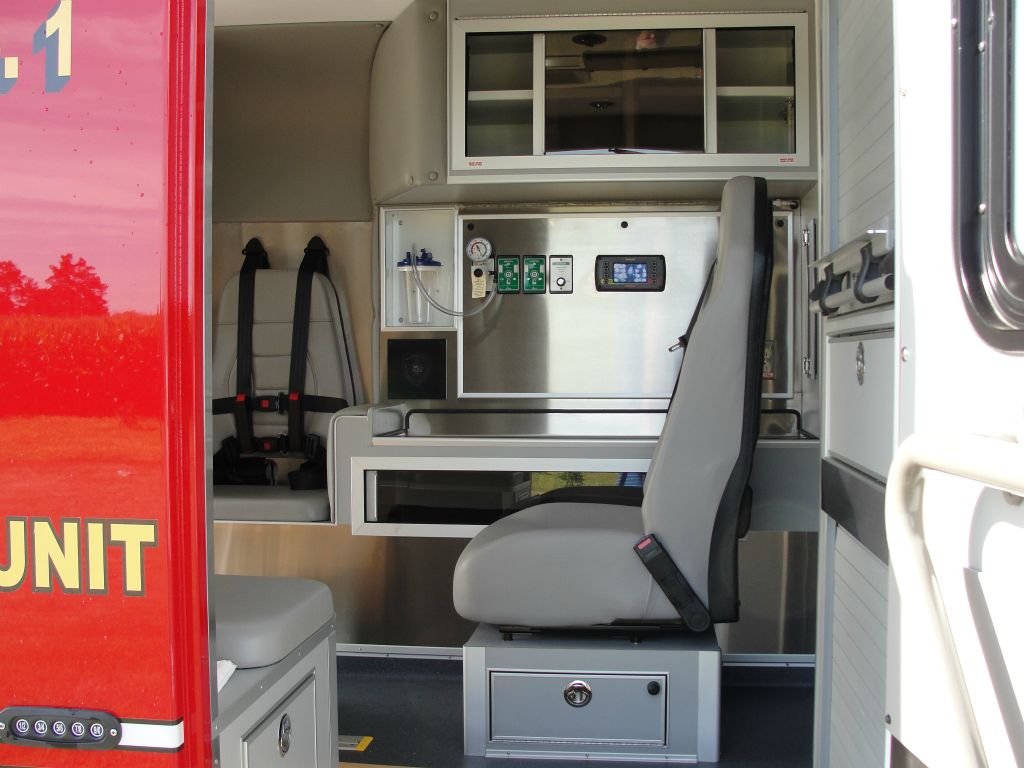

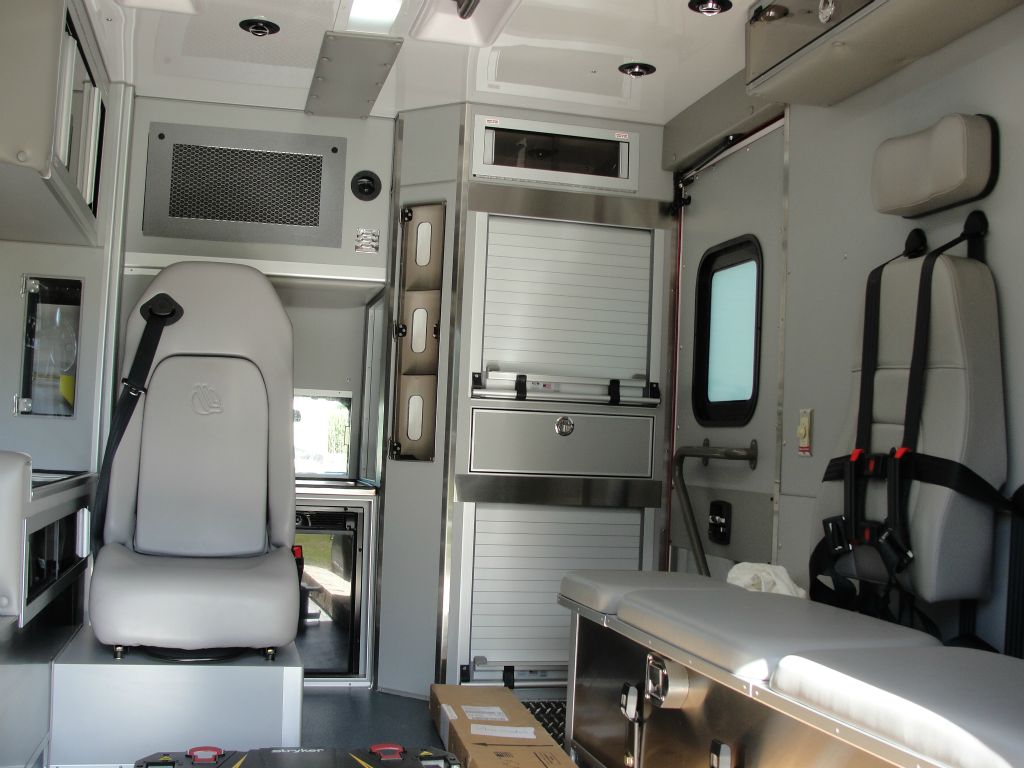

• Attendant Seat: EVS Child Safety Seat; 3 pt. harness

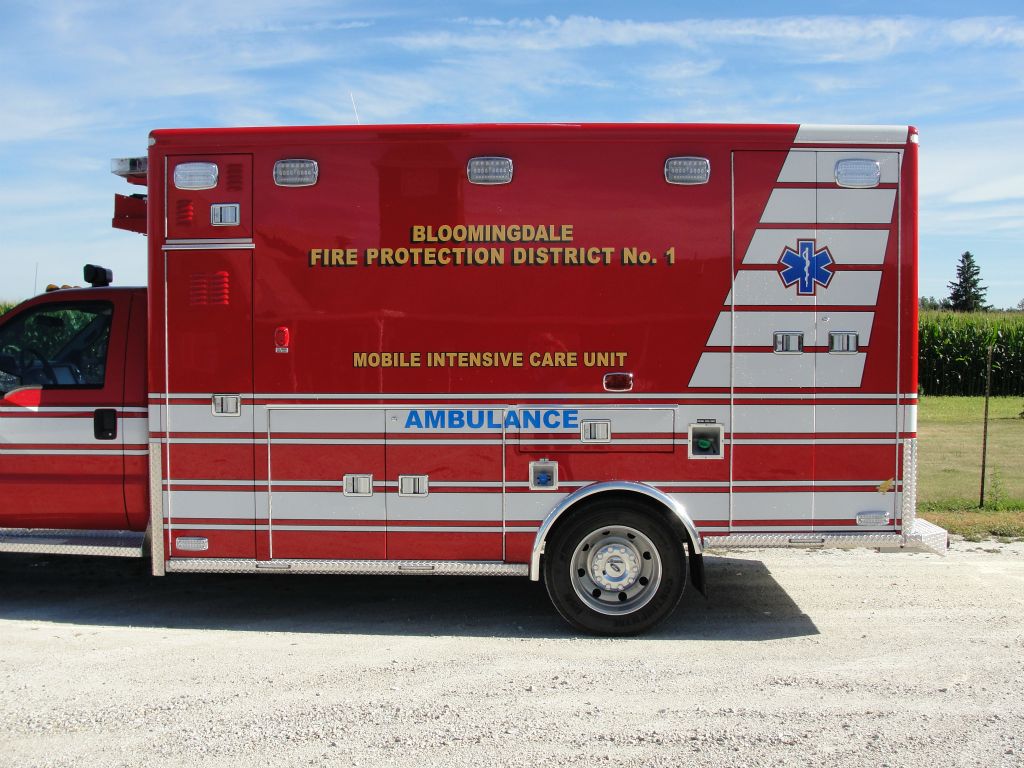

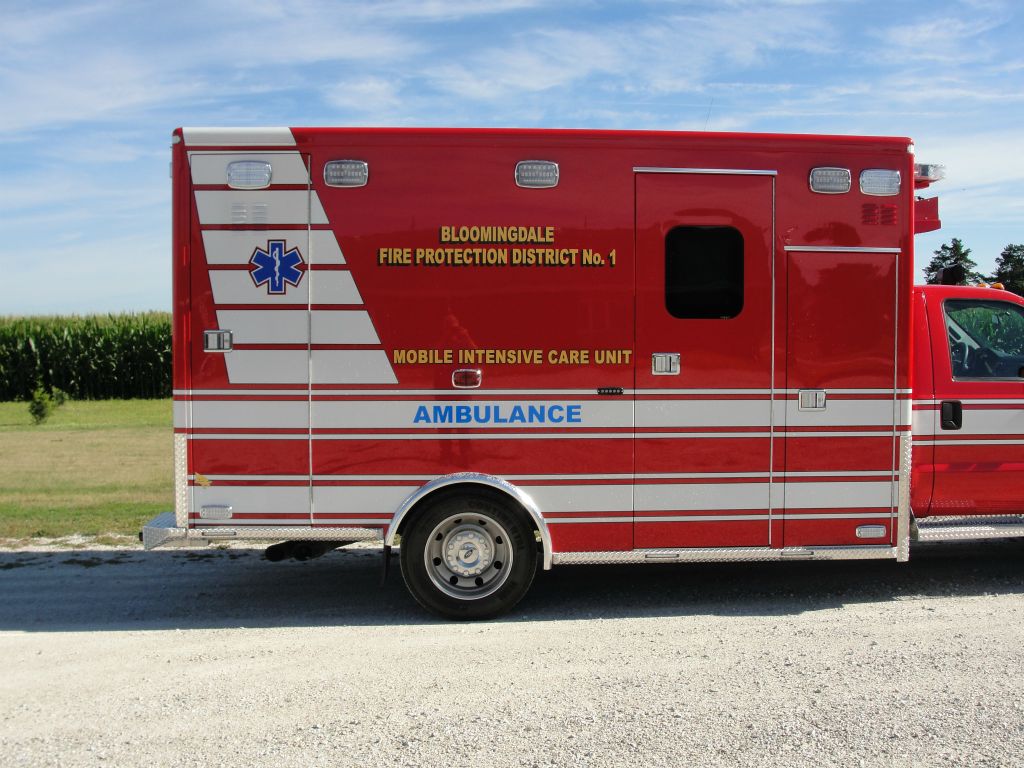

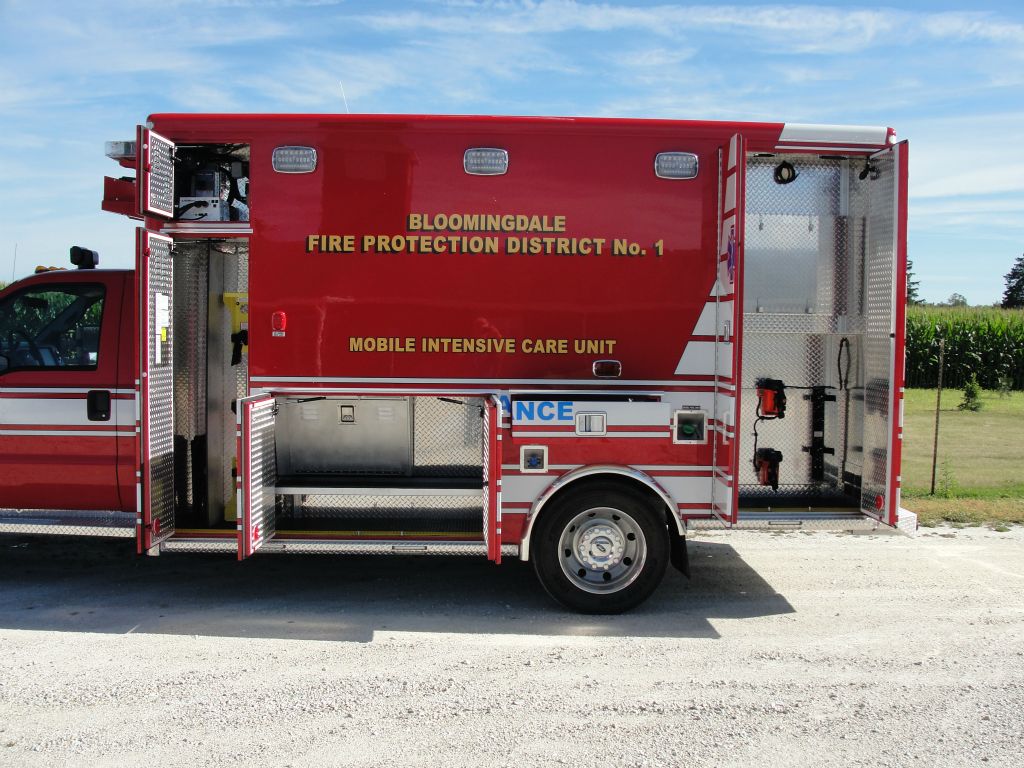

• AEV Extruded Aluminum Body
• 6" Curbside Body Drop on both sides
• Custom paint & stripping to match existing fleet

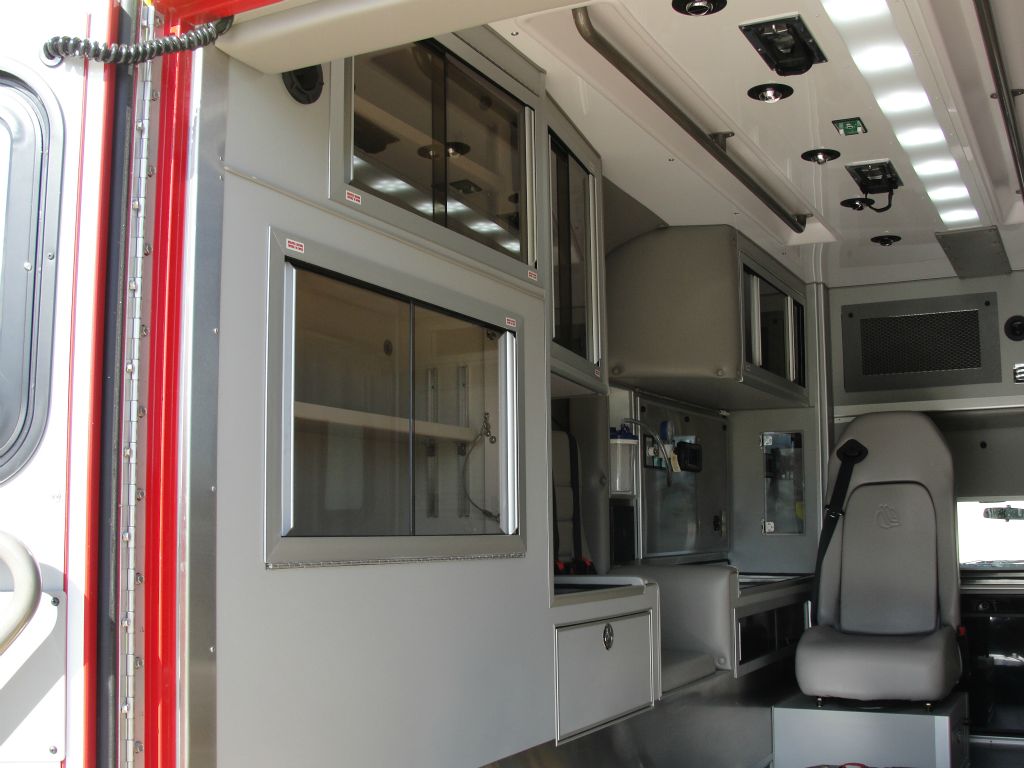

• Size/Headroom: Interior 72" Finished Interior height
• Shoreline: Auto eject w/indicator light
• Battery switch w/ auto 10 minute shut down
• Siren: Whelen 295HFS2 200 watt w/ Whelen bumper mounted speakers
• Air horn: Buell Dual 10" & 12" Strombos thru bumper installation
• Patient lights: Kinequip LED

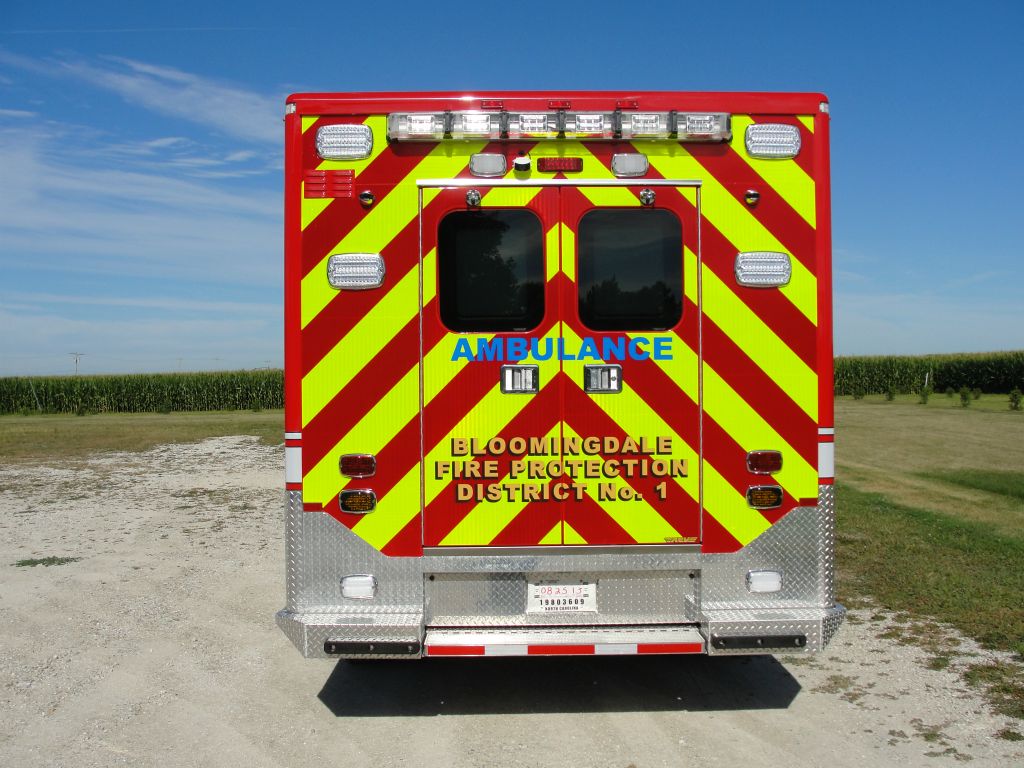

• Warning Light package: Whelen M series LED package
• Whelen Skirtrail Lights with white ground lighting
• Scene Lights Whelen M Series LED
• Opticom: Tomar #3HI Opticom
• Patient on Board "POB" lights on all door surfaces that are rear facing
• Link Air Ride Suspension
• Supreme "X Series" insulation package
• Electrical: 12V LX-1 Multiplex package
• Camera: (1) Ext. Back Up
• Power Door Locks w/override in grill area
• Action Area: Stainless Steel w/3" roll-up
• Stryker "Power Load" Cot system
• Norcold 1.7 Cu Ft. refrigerator
• Upholstery: Vacuum Formed-light gray
• IV Warmer & Electric Oxygen level gauge
• Aluminum Alloy Wheels
• Wheelbase: 189"
• FAWR: 7,000
• RAWR: 12,000
• GVWR: 16,500
