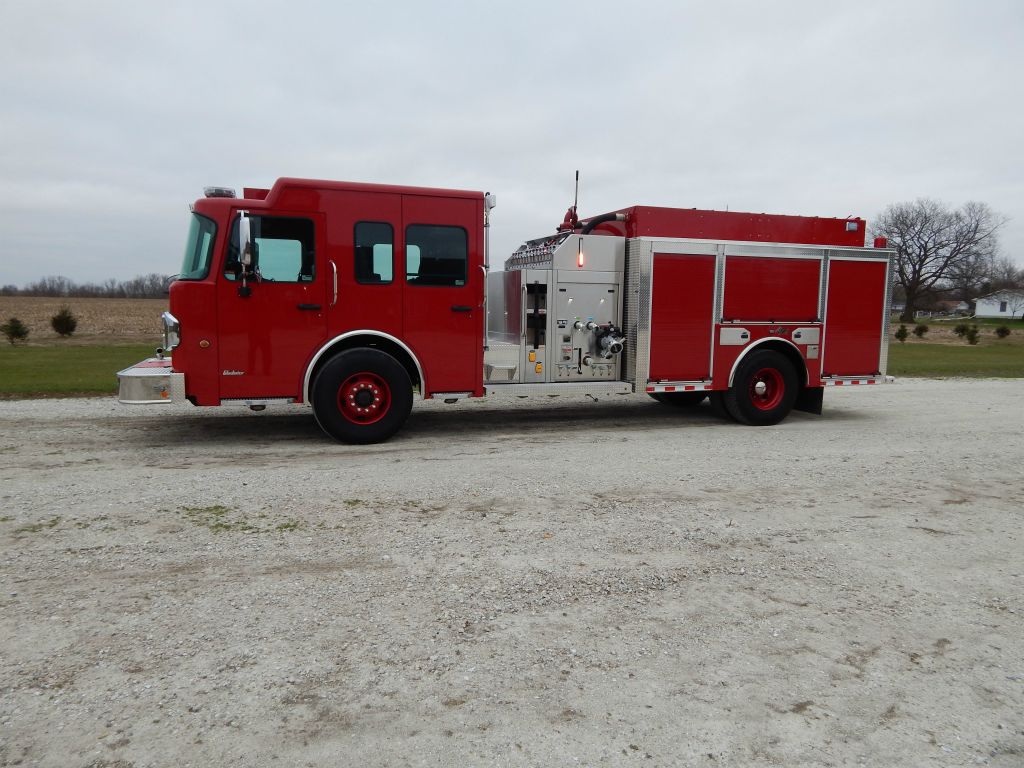

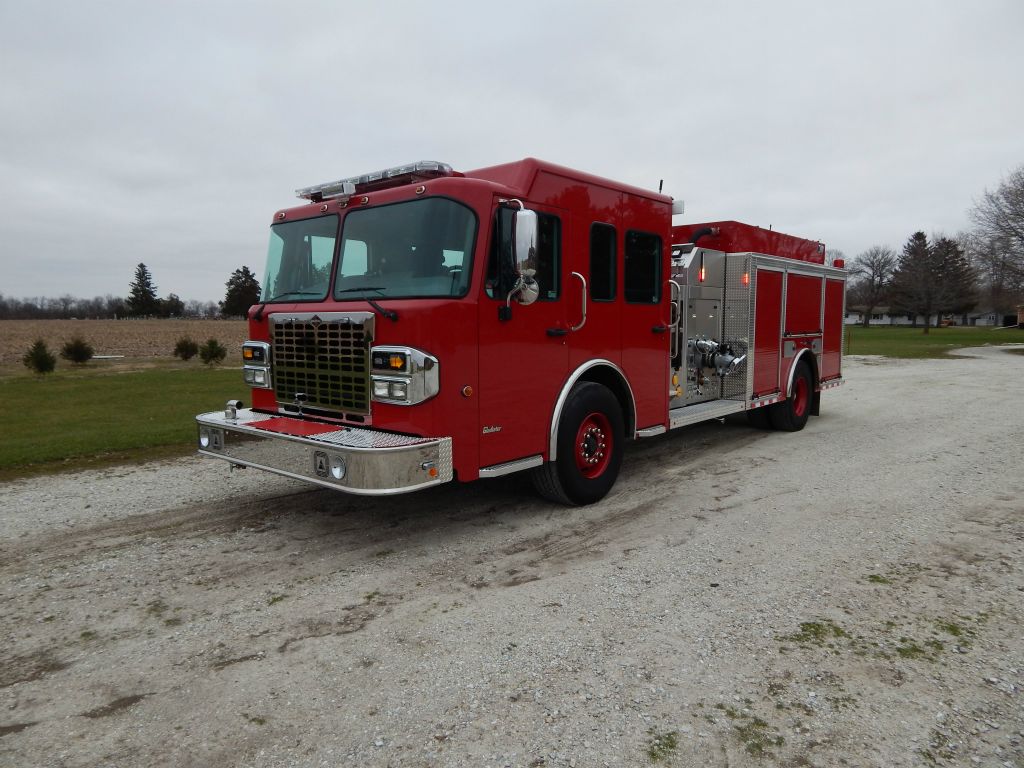

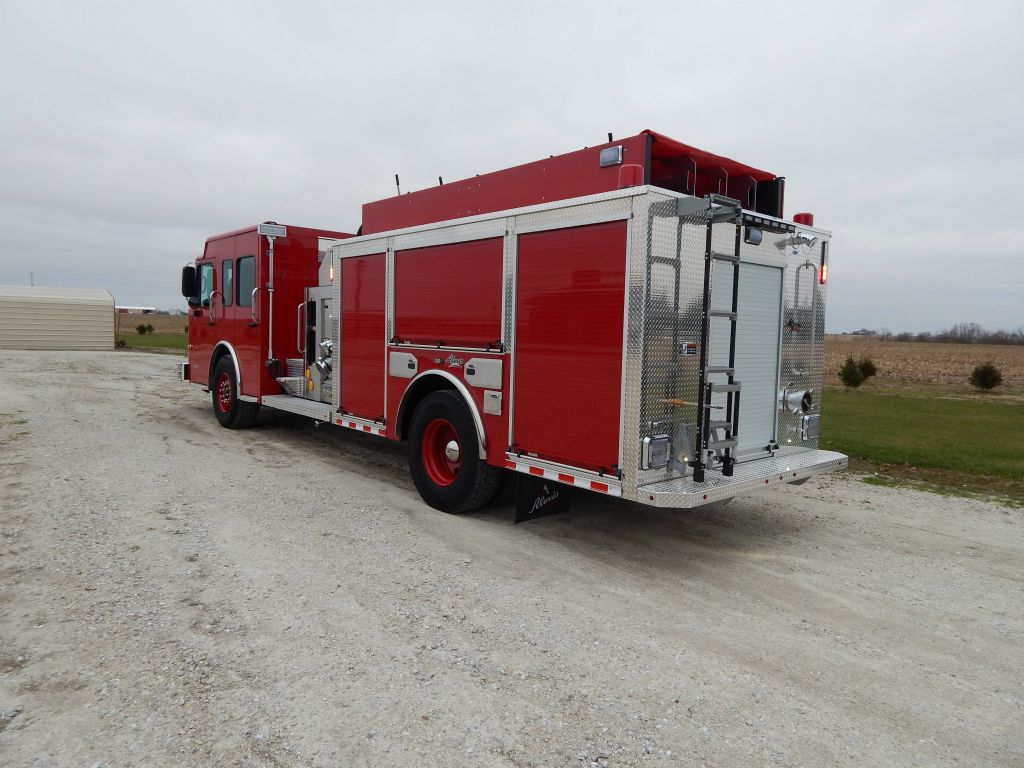

CUSTOM TOP MOUNT EQUALIZER PUMPER #2274
SHABBONA COMMUNITY FIRE PROTECTION DISTRICT
SHABBONA, ILLINOIS

Technical Specs
• Spartan Gladiator MFD 10" raised roof Chassis
• Cummins ISL9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with four (4) SCBA seats
• Heavy Duty 3/16" Aluminum Body with ROM Painted Roll Up Doors
• 1250-Gallon Poly Tank with 20-Gallon foam tank
• One (1) 2 ½" Fireman's Friend Tank fill, right side panel
• Darley LDMX 1500-GPM Pump with Top Pump Operator's panel
• Four (4) 2 ½" Discharges, two (2) left, one (1) right side and one (1) rear
• Two (2) 3 " Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) TFT Protector Monitor
• One (1) 2 ½" Gated Suction, left side
• One (1) 5" Suction, rear right
• Two (2) 1 ½" Cartridge Lay Preconnects, front of body
• Two (2) 2 ½" Preconnects, front of hose bed
• 18" Front bumper extension with one (1) 2 ½" Preconnect with center hose well
• Foam Pro 1600 Foam system with Powerfill foam tank refill system
• Four (4) Dual bottle Air bottle compartments, two (2) each side wheel wells
• Turtle Tile on the floors and/or shelves and trays of compartments
• Ladder/Pike pole storage through tank with rear access
• One (1) Zico Top access ladder, rear mounted
• Progressive Dynamics on-board battery charger with Auto Eject connection
• Kussmaul Air Eject
• Code-3 Electronic Siren with Code-3 100-watt speaker
• Two (2) Air Horns, front bumper
• Whelen LED Scene Light package
• Two (2) FRC Spectra LED 12-volt telescopic lights, one (1) each side
• One (1) FRC LED 12-volt Brow light
• Code-3 LED Warning Light Package
• Chevron pattern striping, rear
• 9' 9" Overall height
• 33' 2" Overall length
• 218" Wheelbase
• 164" Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR

Download Spec Sheet »






Alexis Fire Equipment would like to thank the members of the
SHABBONA COMMUNITY FIRE PROTECTION DISTRICT for their business.
