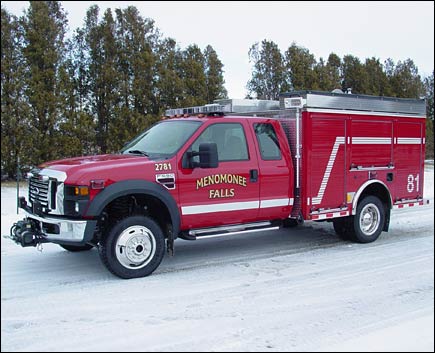

Village of Menomonee Falls
Menomonee Falls Fire Department
Menomonee Falls, Wisconsin
Technical Specs
• Ford F-550 2-Door Super Cab Chassis
• Powerstroke 6.4L V-8, 325-HP Diesel Engine
• Ford 5-speed Automatic Transmission
• Heavy Duty 3/16” Aluminum Body
• UPF 300-Gallon rectangular Poly Tank
• Hale HPX300, 150-GPM Pump with Honda 20-HP gasoline engine
• One (1) 2 ½” Gated suction, rear
• Two (2) 1” Discharges with 25-ft. of forestry hose each, rear
• One (1) 1 ½” Preconnect discharge with capacity for 300-ft. of 1 ¾” hose, left side compartment top
• One (1) Hannay electric Booster Reel with 150-ft. of 1” hose, top of tank
• Luverne stainless steel running boards
• Ramsey 9,000-lb. winch with front and rear receivers
• One (1) Orr 40,000 BTU Compartment heater in the front transverse compartment
• ROM Roll UP Doors
• Ladder storage compartment for 12-ft. 2-section ladder, top of right side compartments
• Hard suction hose storage tray, left side
• One (1) Back board storage rack with capacity for one (1) stokes basket and one (1) back board in the upper front transverse compartment
• Two (2) FlameFighter walk-away Air pack brackets, left side compartment
• One (1) Kussmaul Auto charge 12 Automatic battery charger
• One (1) Kussmaul Super Auto Eject 120-volt shoreline, left side
• One (1) Optronics Hand held spotlight with 10-ft. cord, cab
• Two (2) Havis Shield Magnafire 12-volt Floodlights
• Federal electronic Siren with 100-watt Federal speaker
• Whelen Warning Light Package
• 7’ 8” Overall height
• 21’ 11” Overall length
• 161.8” Wheelbase
• 60” Cab to Axle
• 7,000 FAWR
• 13,660 RAWR
• 17,950 GVWR
|
