McHENRY TOWNSHIP FIRE PROTECTION DISTRICT
FOX LAKE, ILLINOIS
Technical Specs

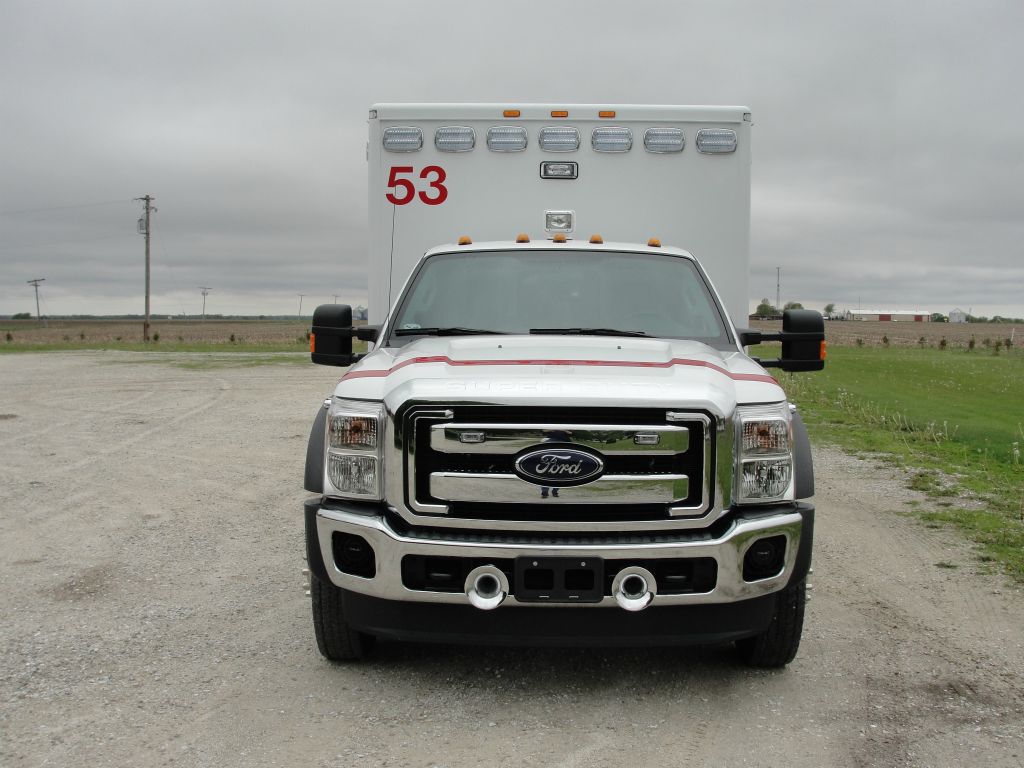

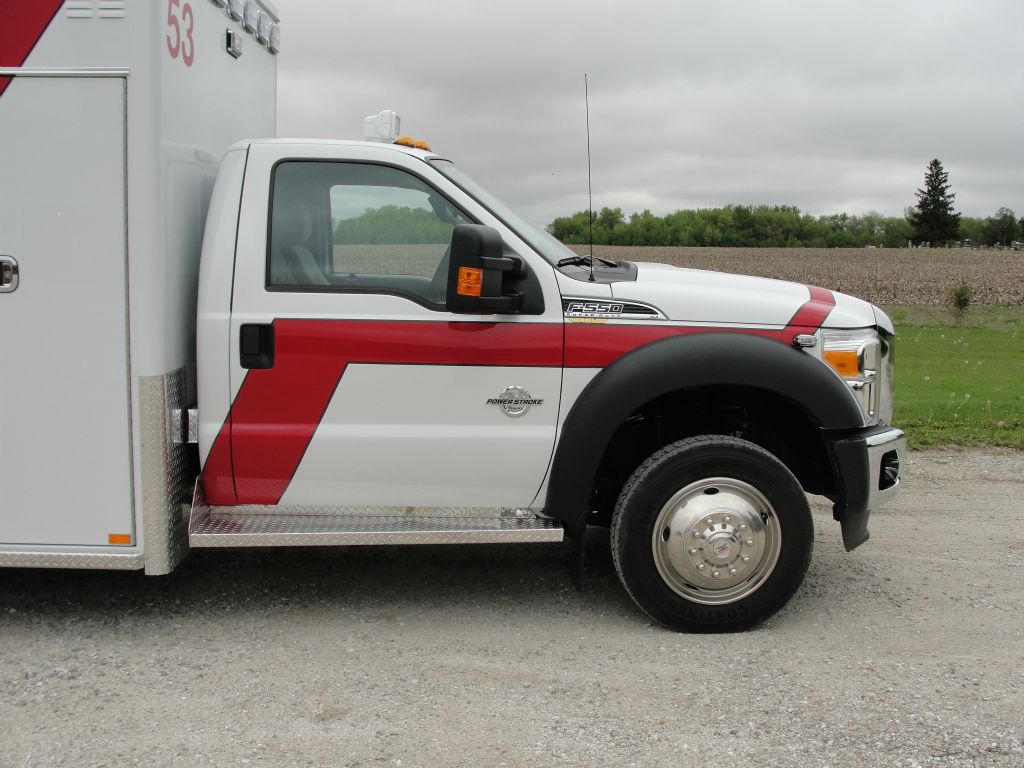

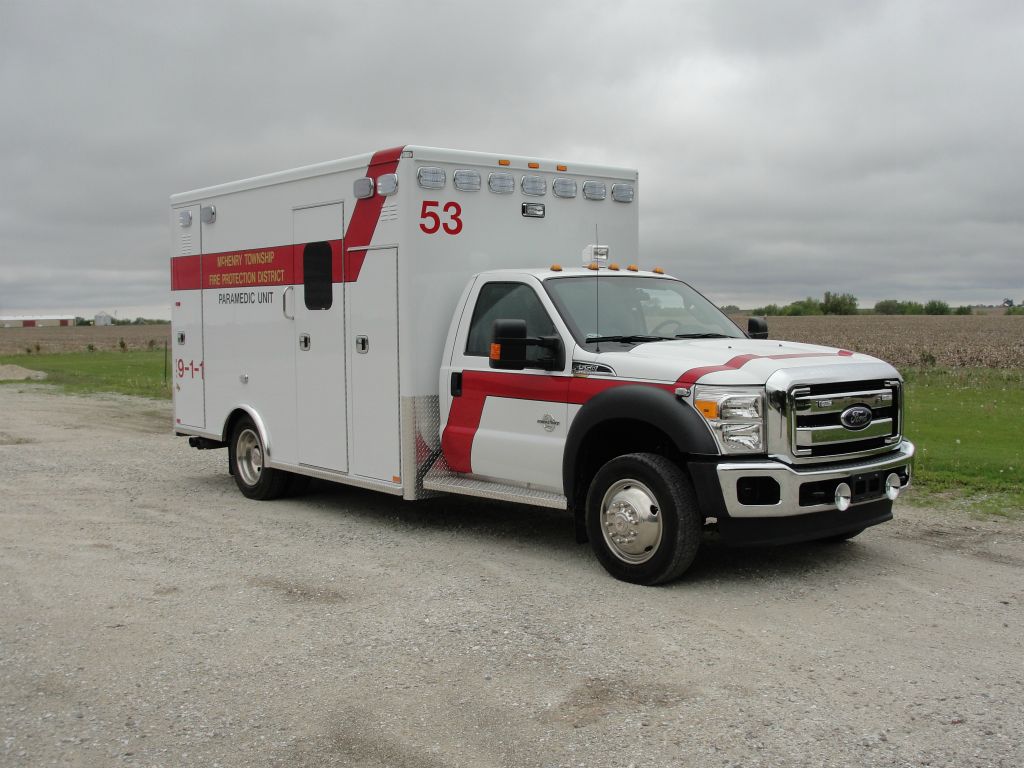

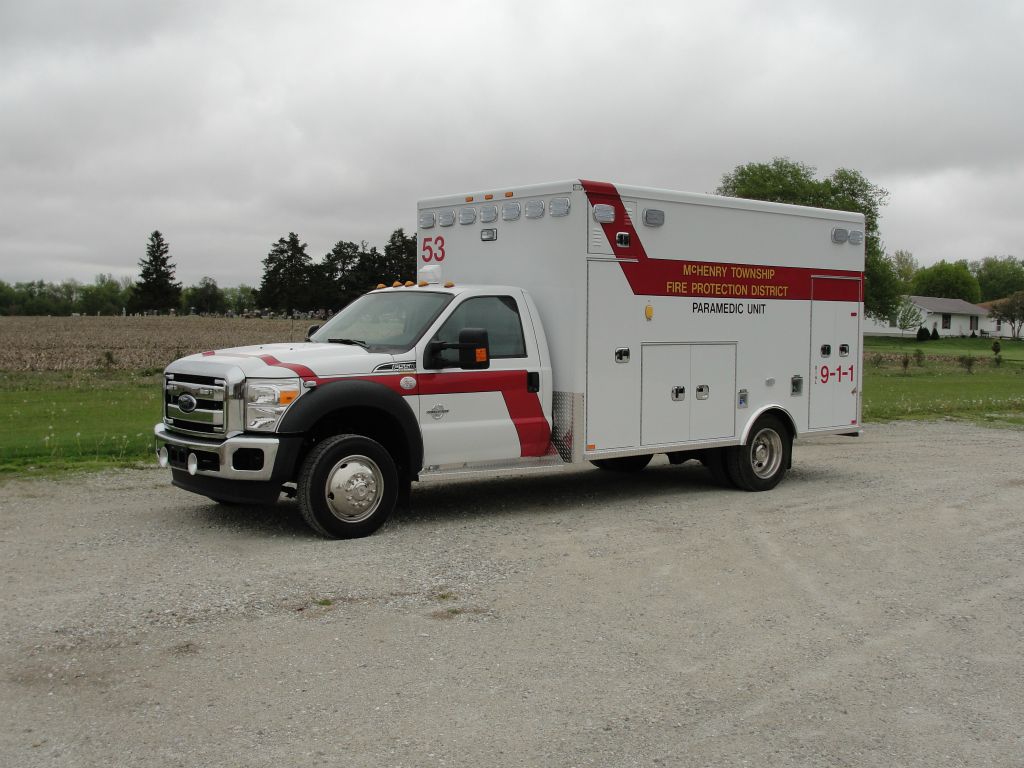

• Chassis: Ford F-550 4 x 2
• Engine: 6.7 Scorpion
• Transmission: Ford HD 6 speed automatic
• Attendant Seat: EVS Child Safety Seat; 3 pt. harness

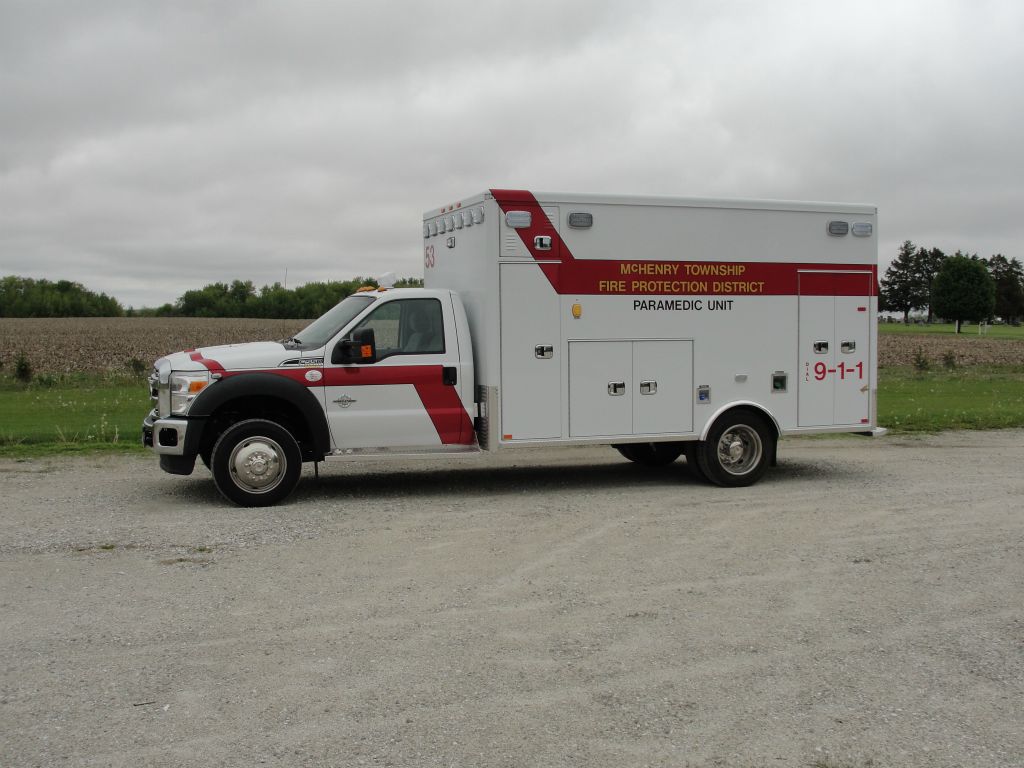

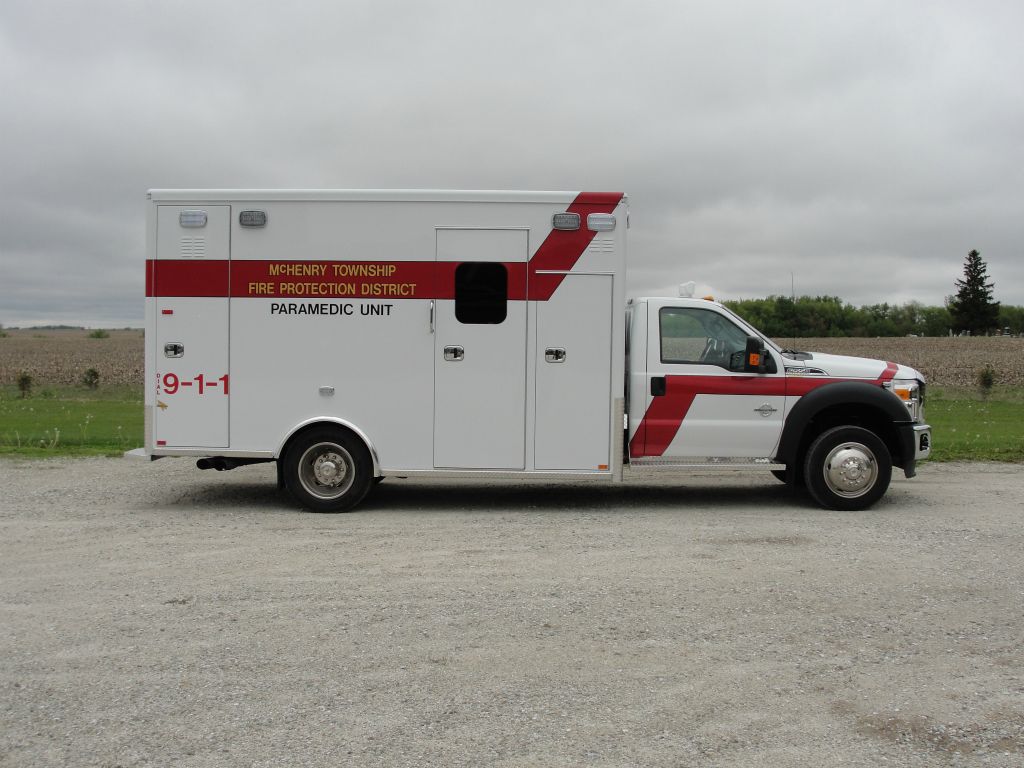

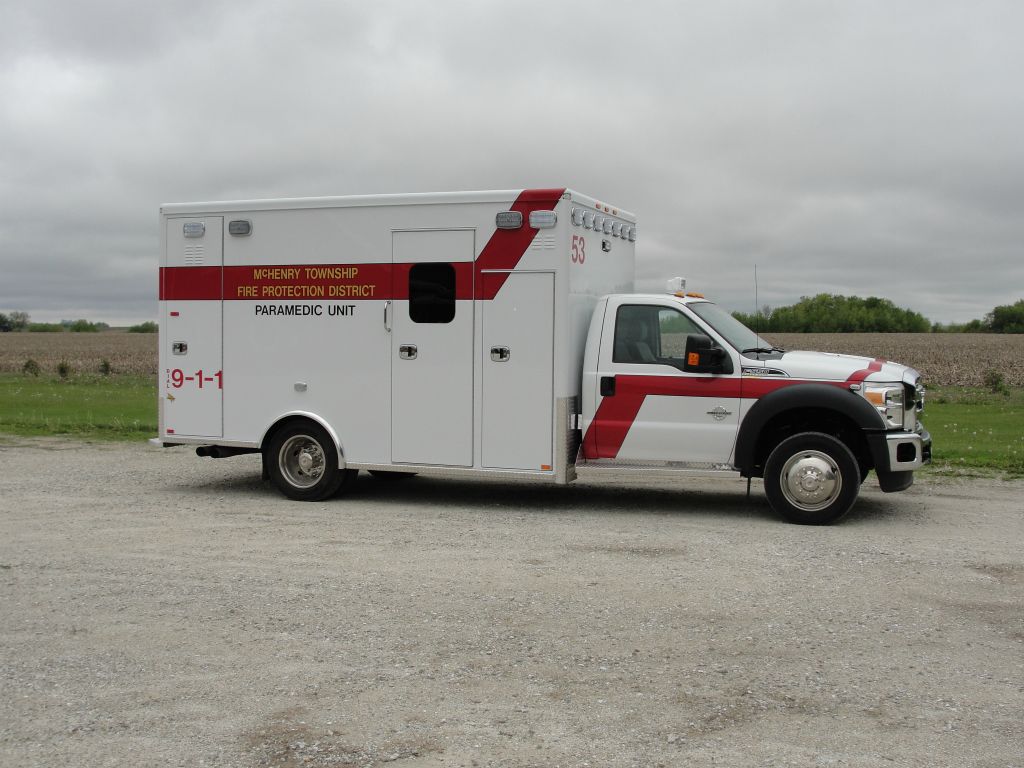

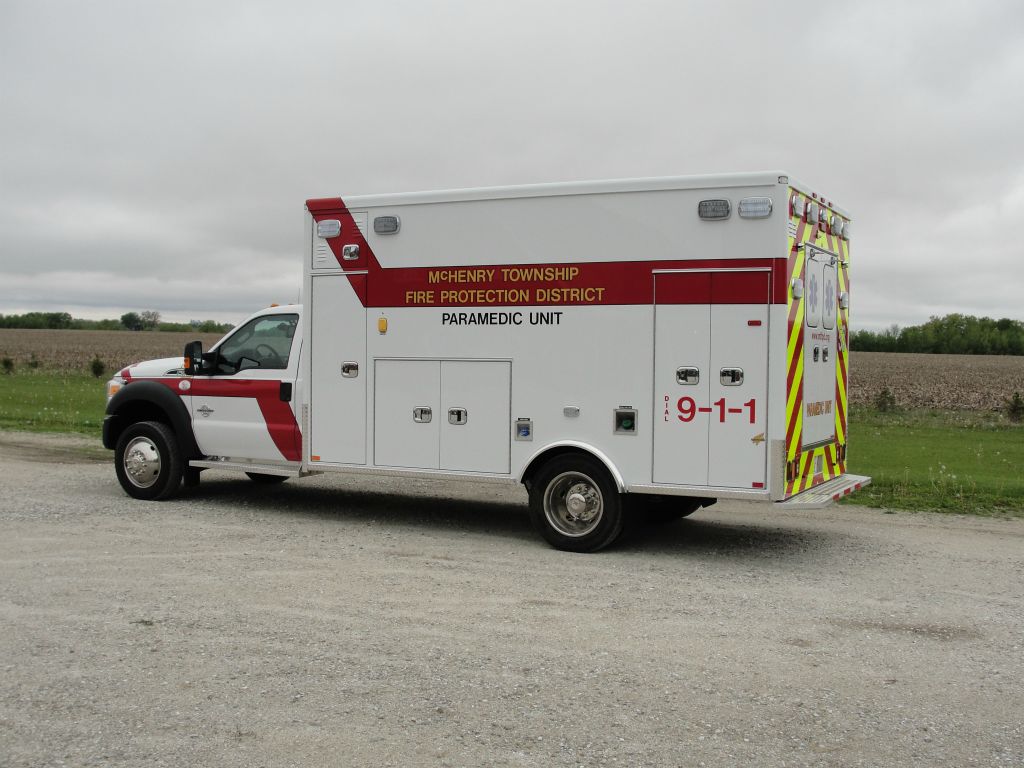

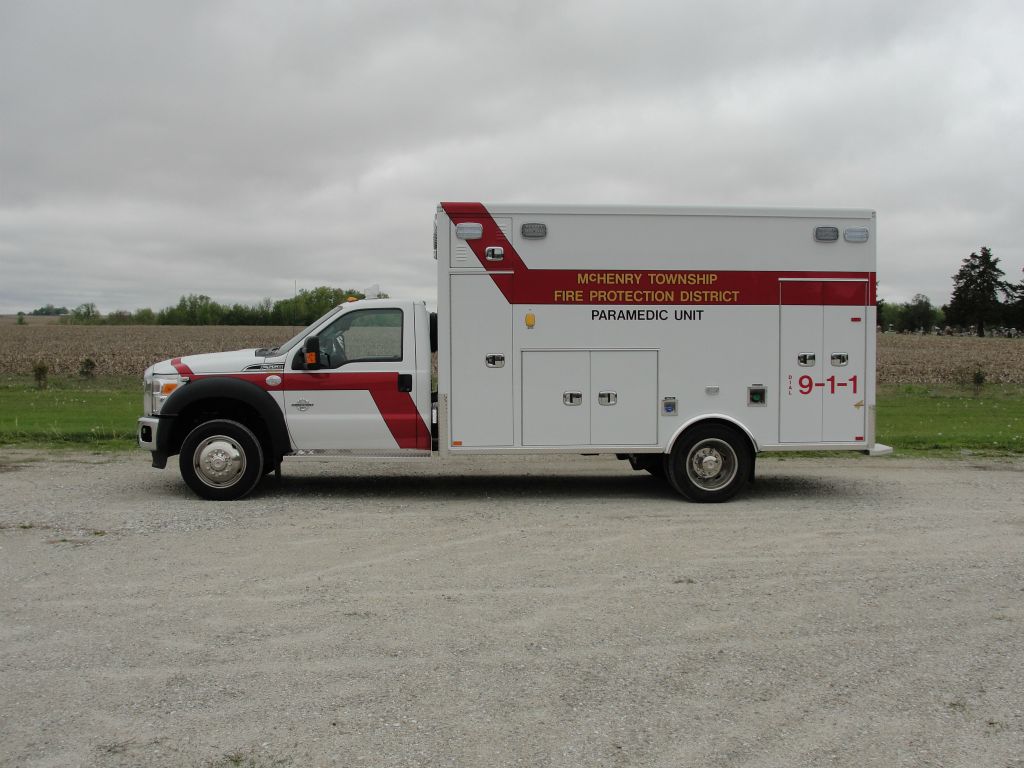

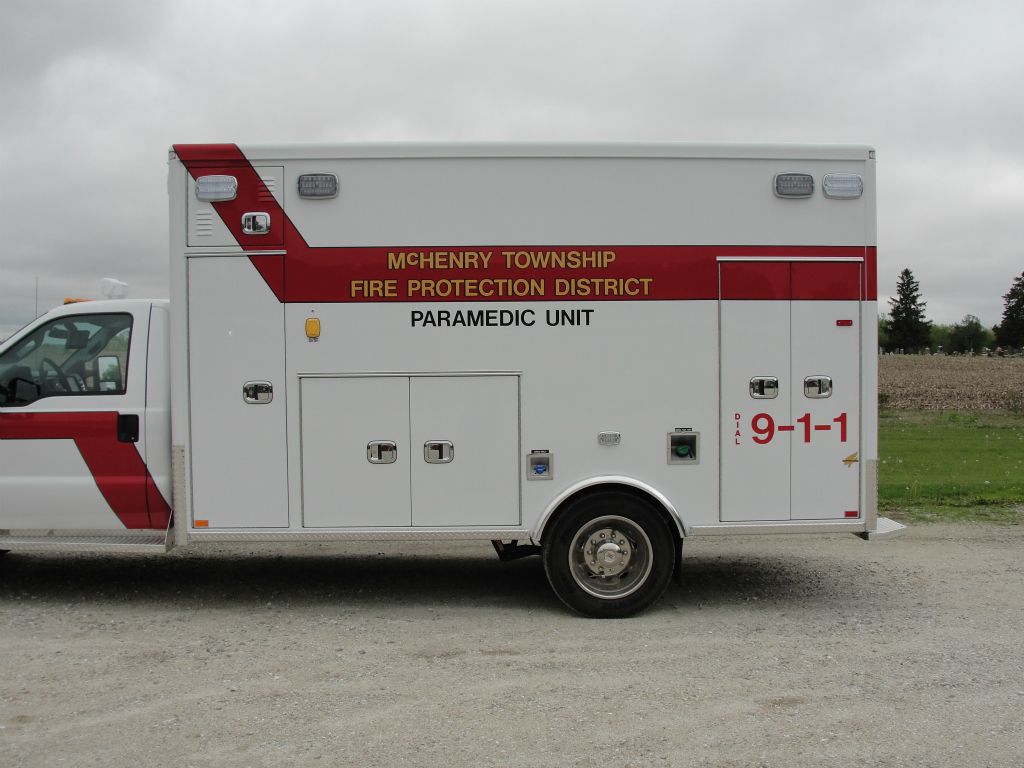

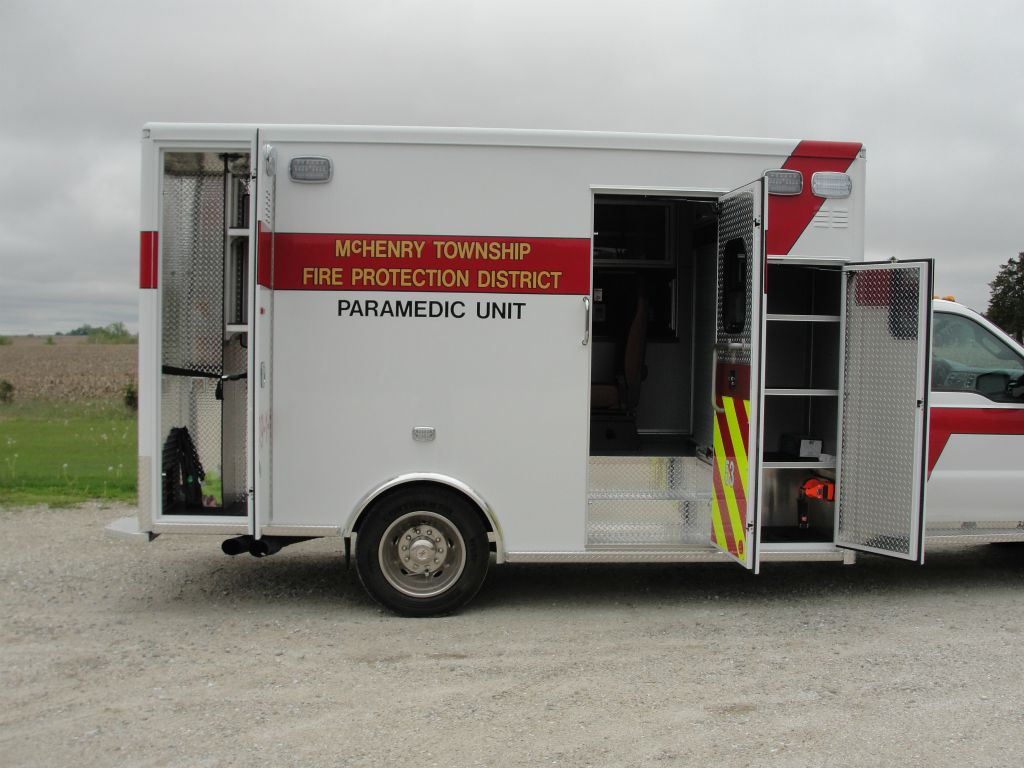

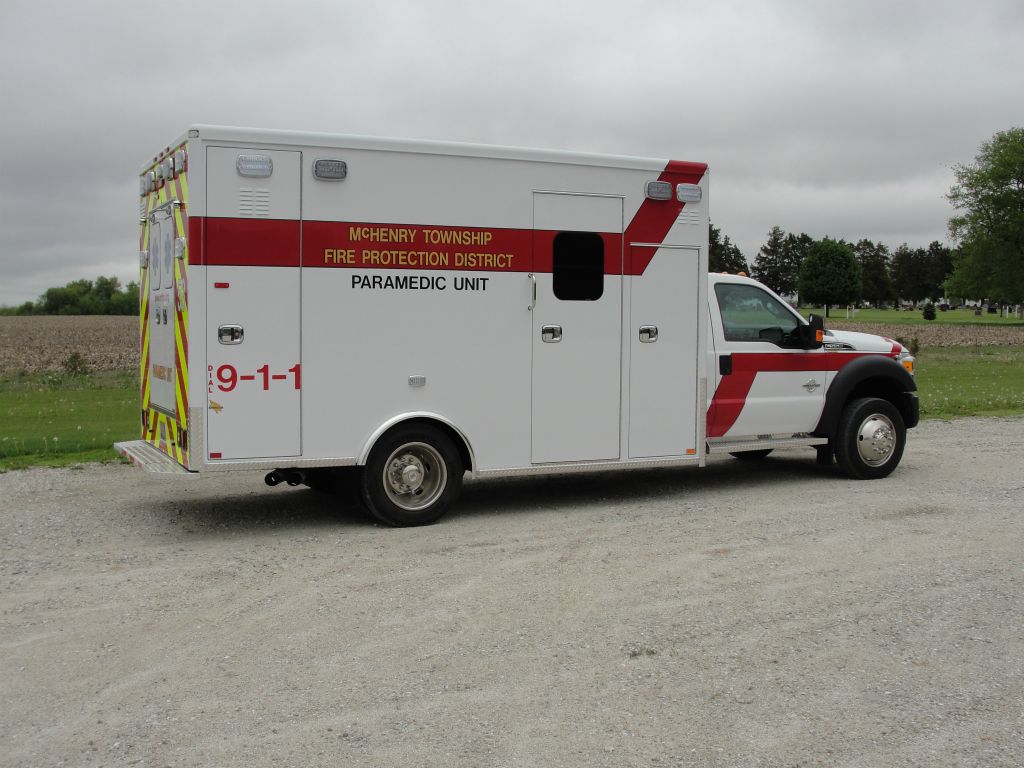

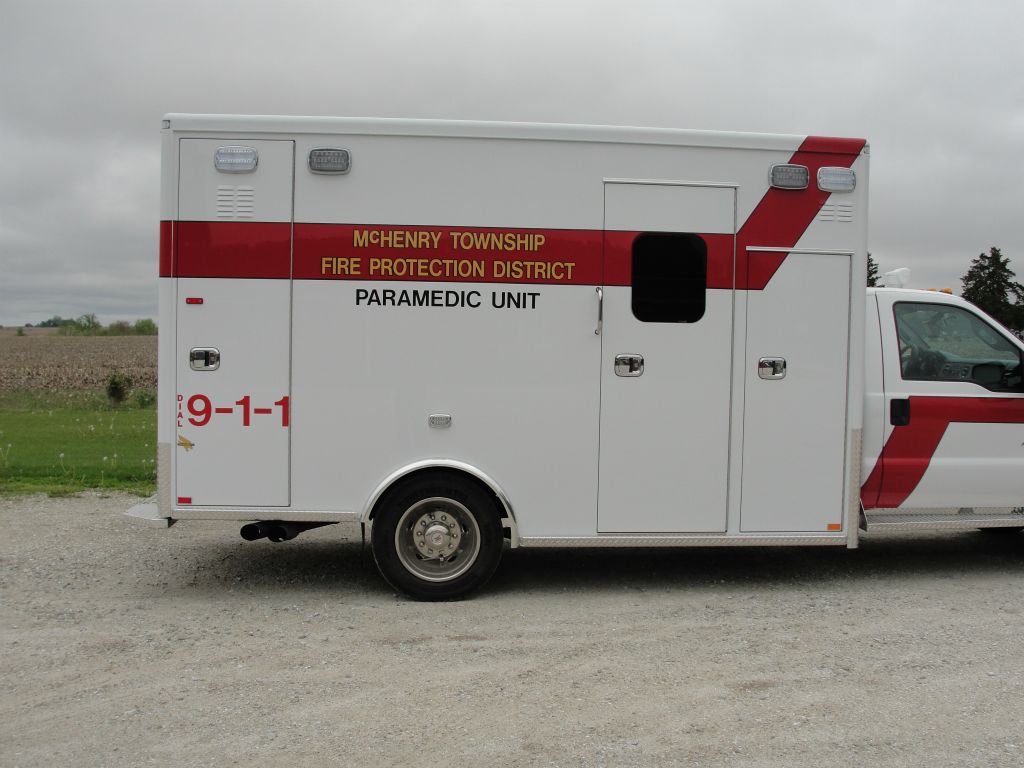

• AEV Extruded Aluminum Body
• 6" Curbside Body Drop on curbside forward of rear wheels
• Custom paint & stripping to match existing fleet

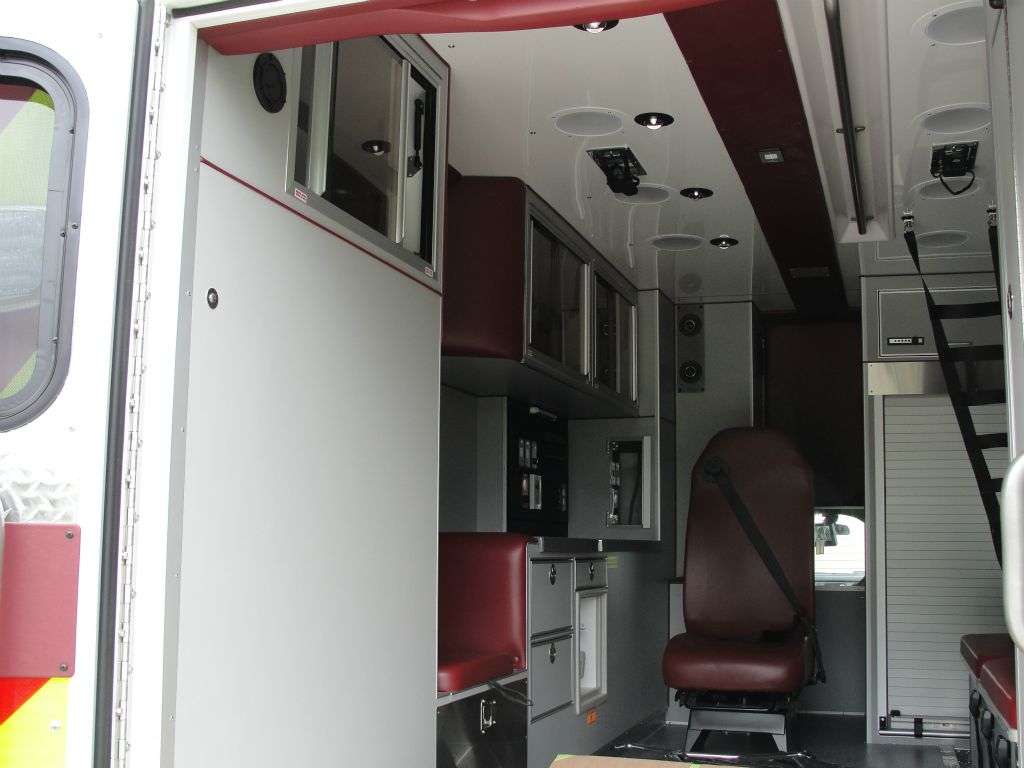

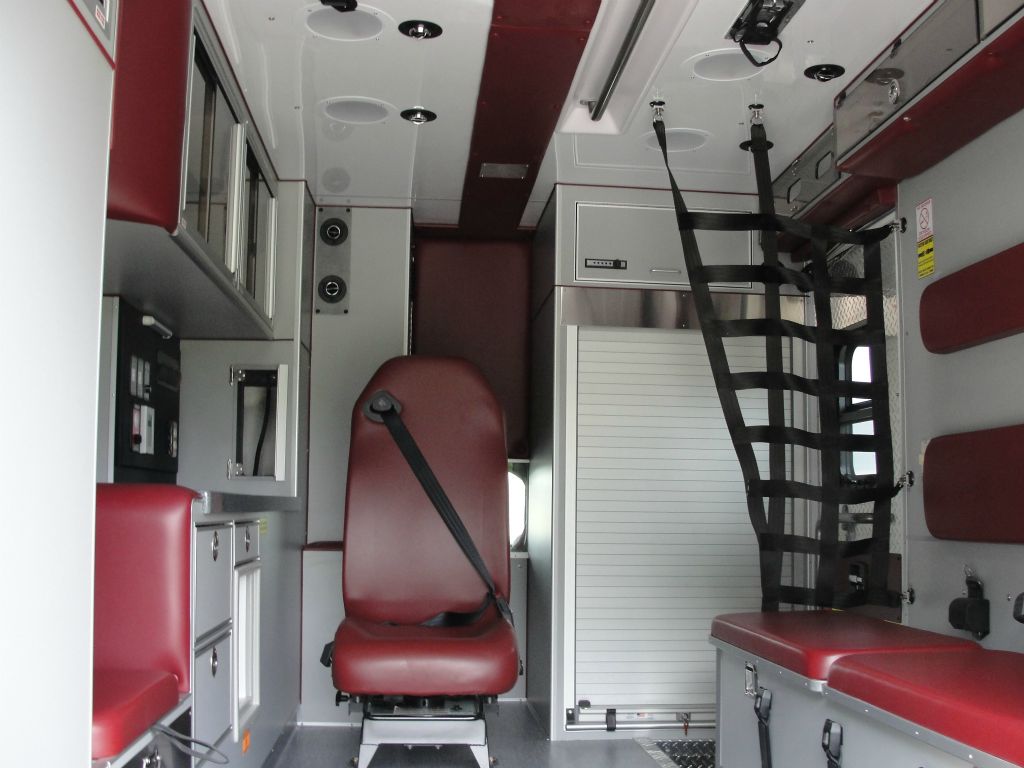

• Size/Headroom: Interior 74" Finished
• Shoreline: Auto eject w/indicator light
• Link Air Ride rear suspension

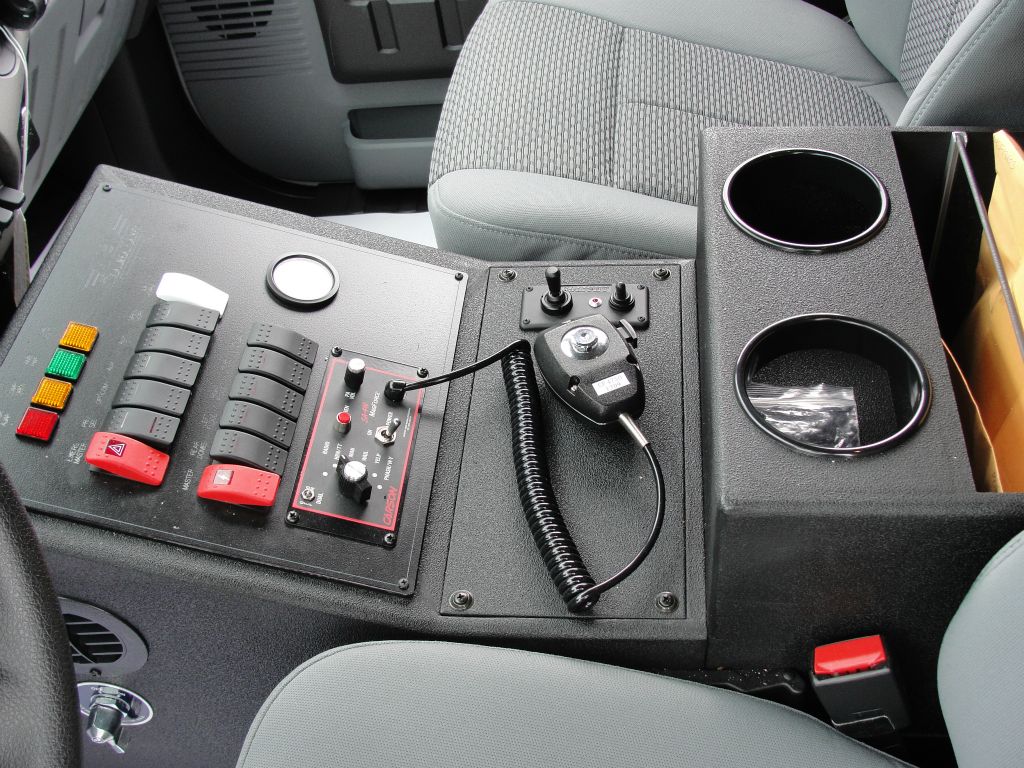

• Siren: Carsen SA-441 200 watt w/ Whelen bumper mounted speakers
• Air horn: Buell Dual 10" & 12" Strombos thru bumper installation
• Patient lights: Kinequip LED
• Warning Light package: Whelen M series LED package
• Whelen Skirtrail Lights with white ground lighting
• Scene Lights Whelen M Series LED
• Opticom: Tomar #3HI Opticom

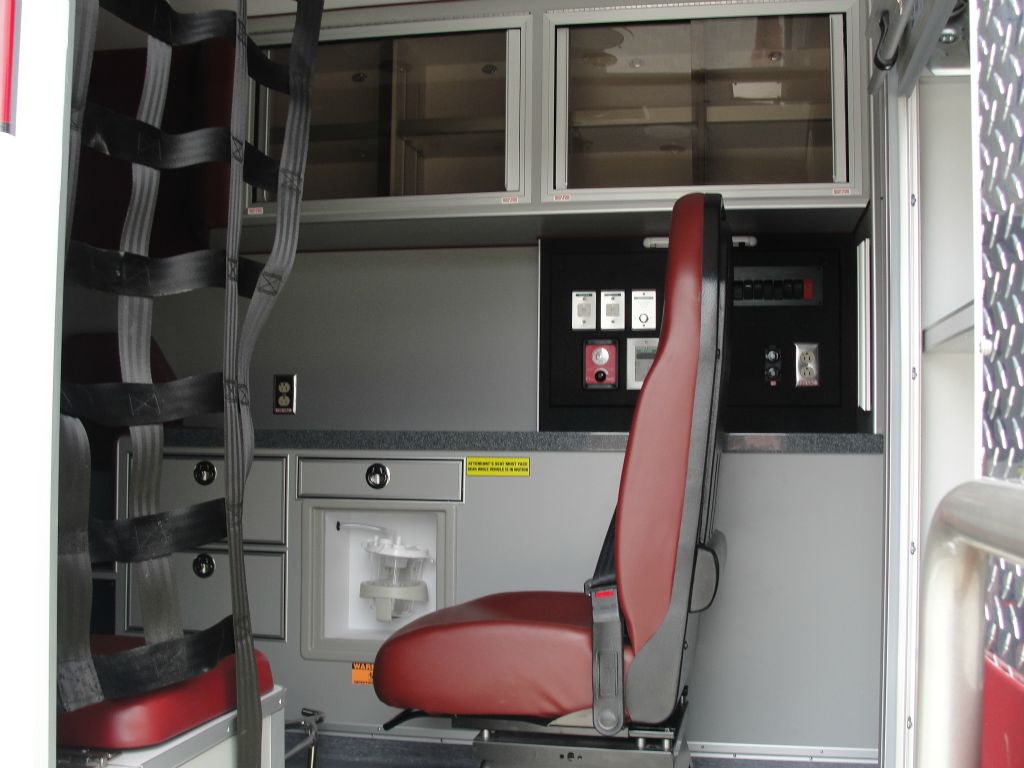

• Interior cabinets equipped with LED lighting
• Amico electronic cylinder pressure gauge
• Electrical: RMR

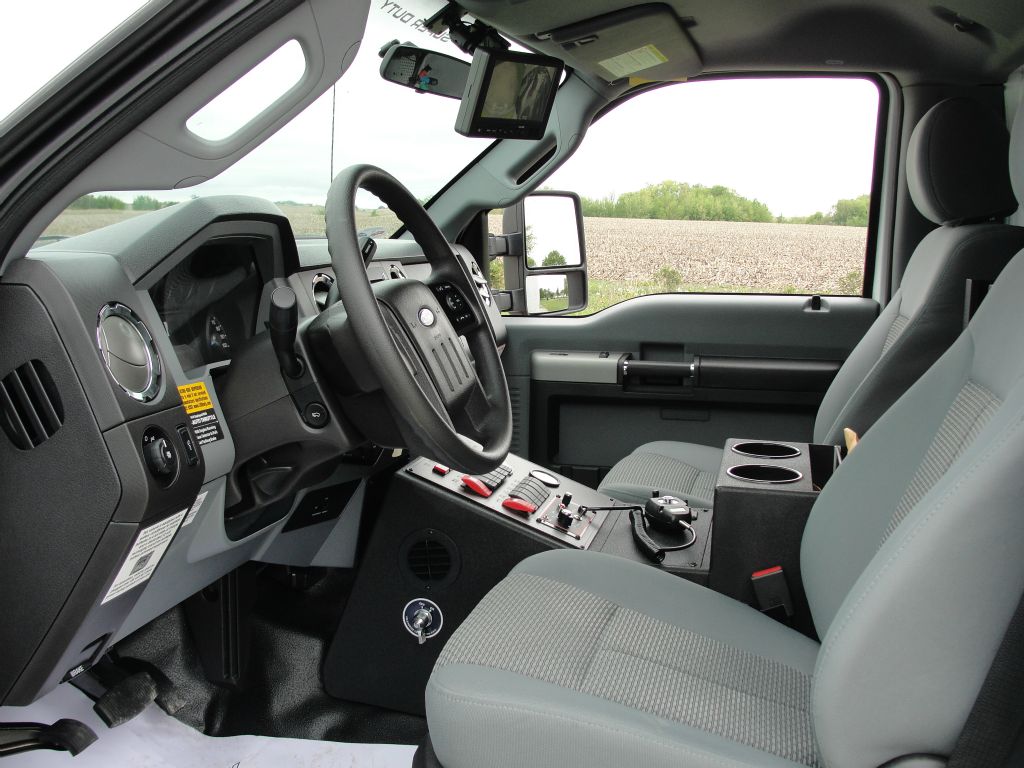

• Camera: Dual Function: Bullet Camera– (1) Ext. Back Up
• Power Door Locks w/override in grill area

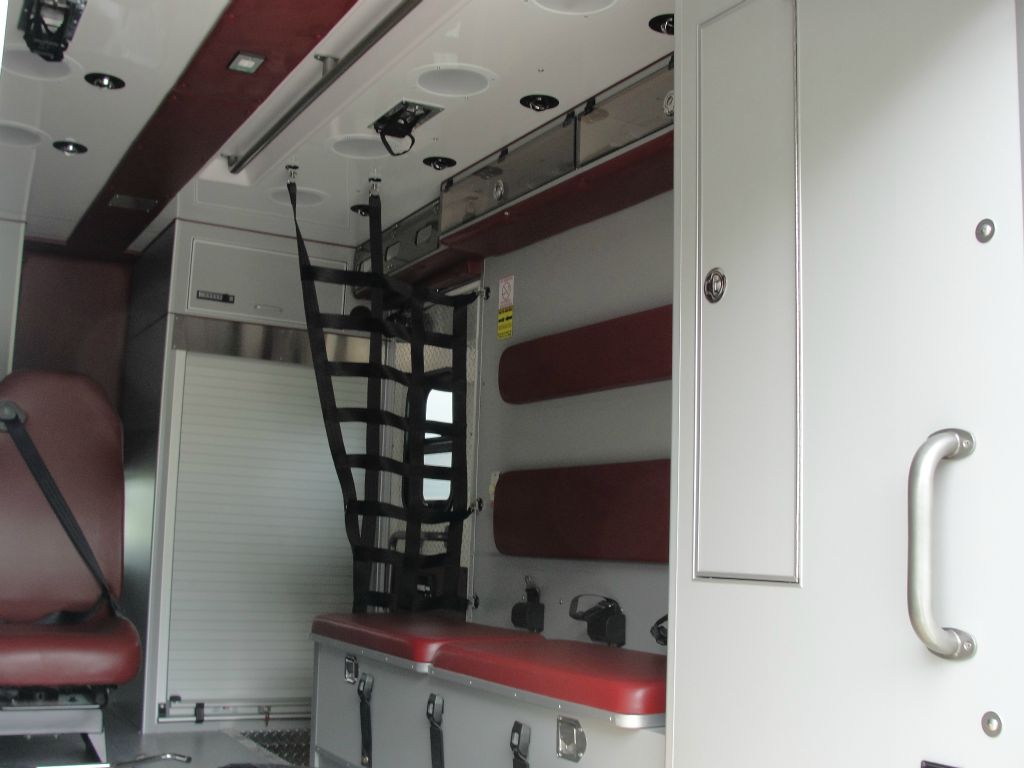

• Action Area: Stainless Steel
• Upholstery: Vacuum Formed-Burgundy

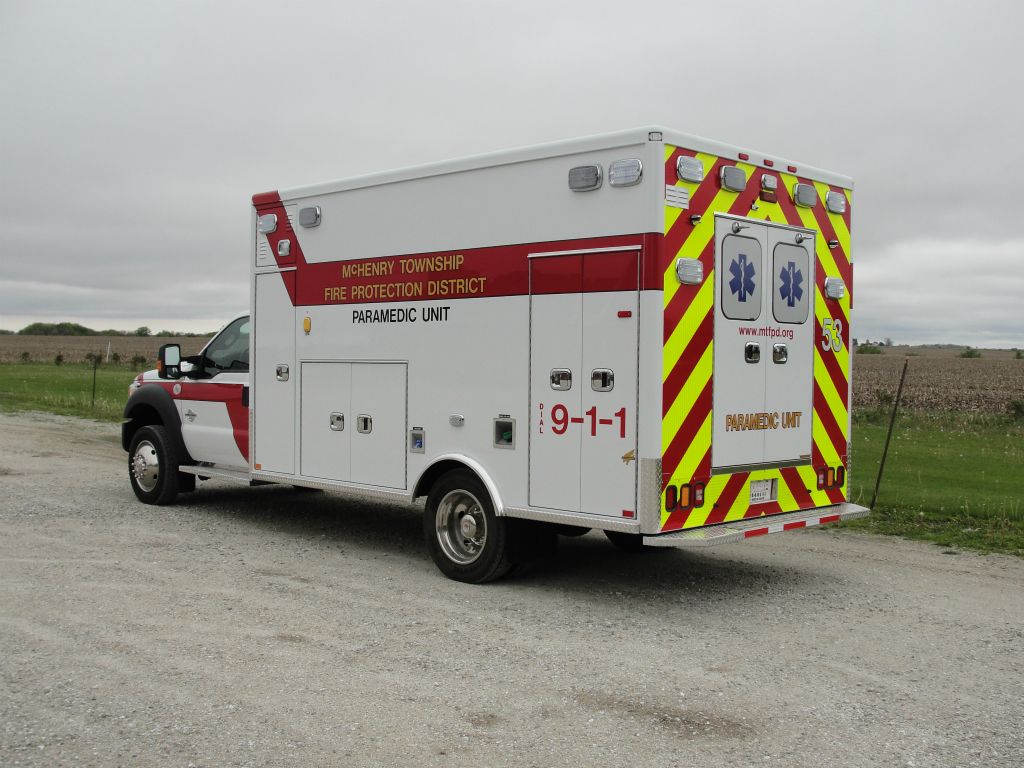

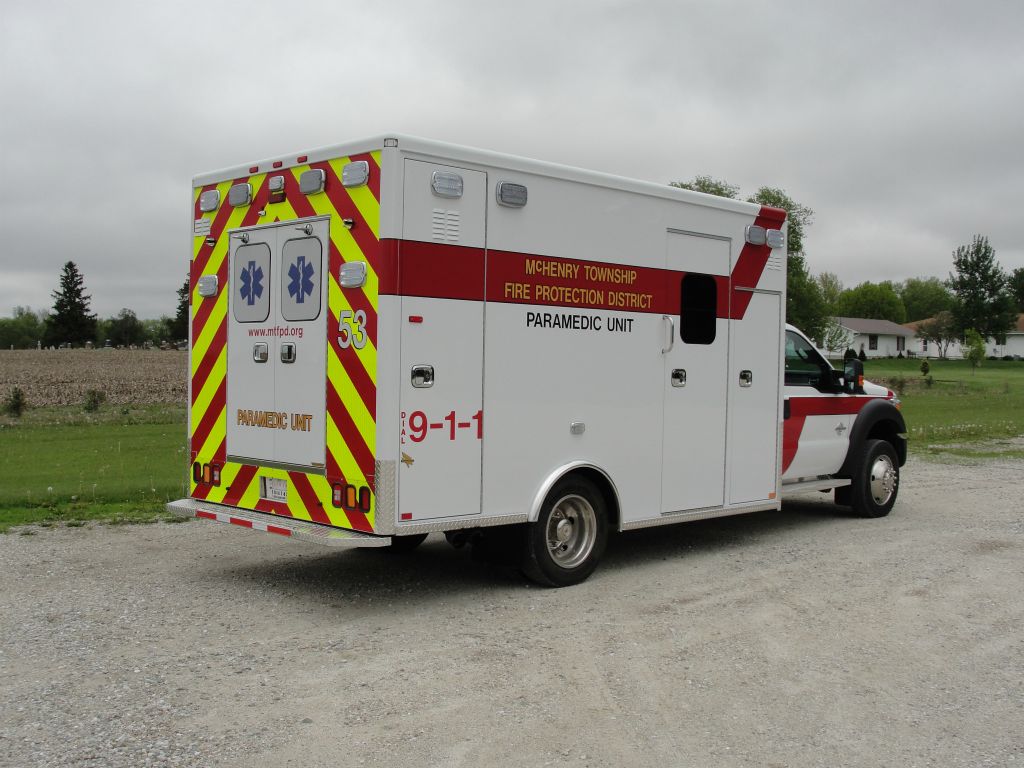

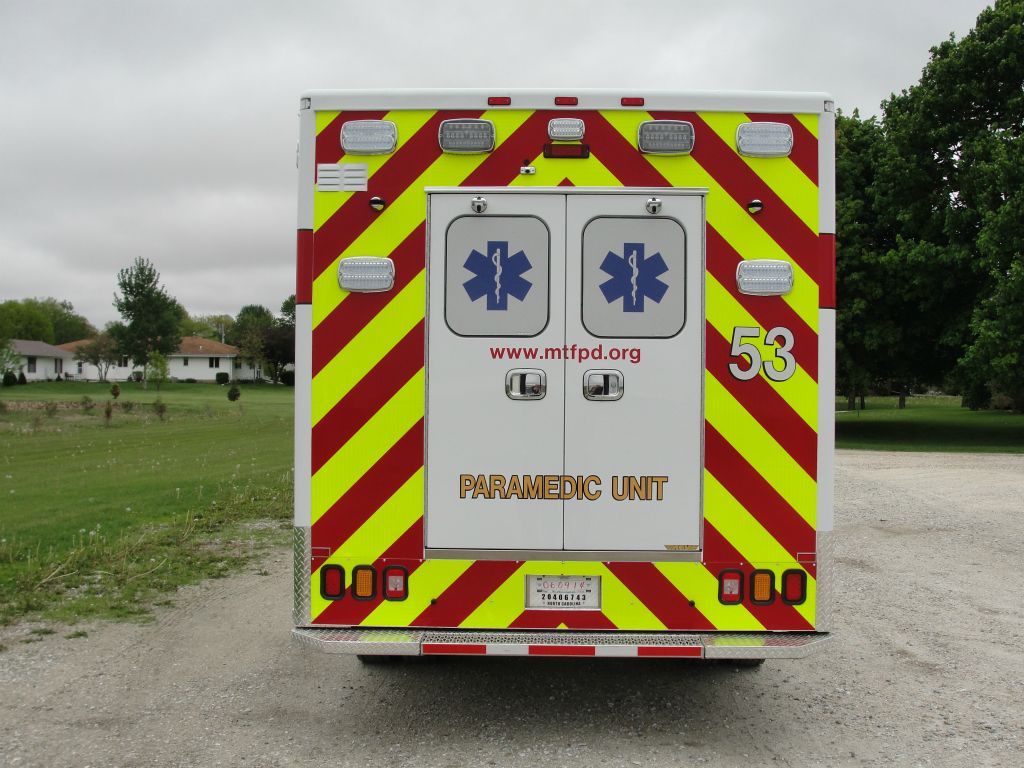

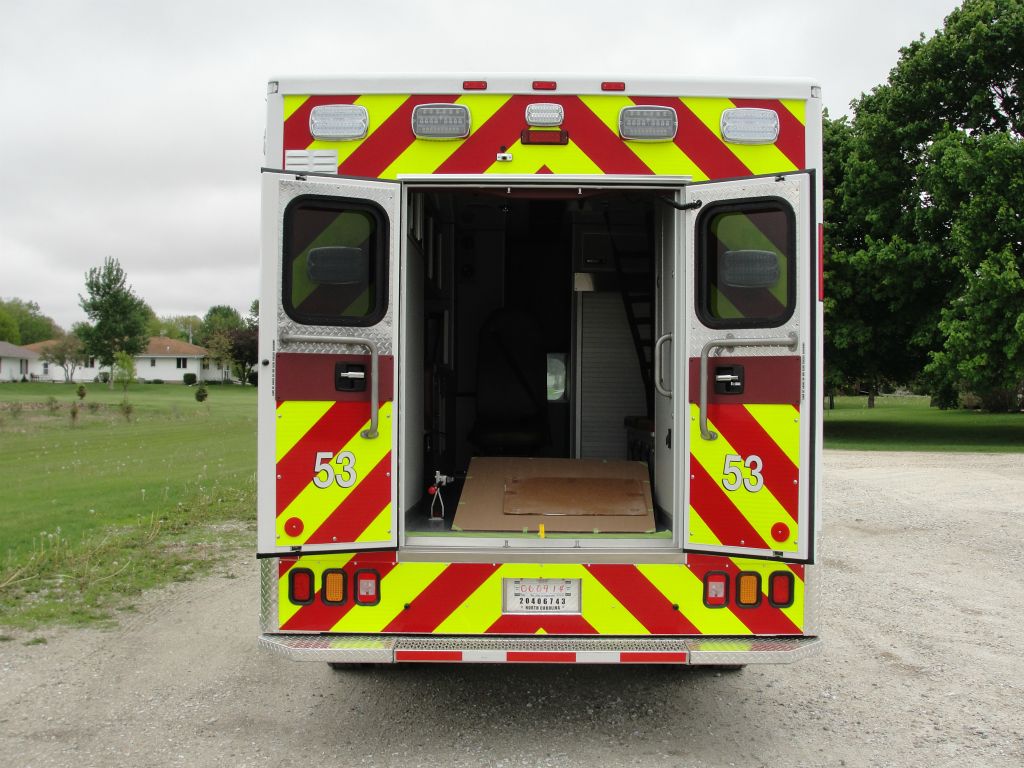

• Custom Diamond grade chevron on rear of body and module doors
• Stainless Steel Wheel Inserts
• Wheelbase: 189"
• FAWR: 7,000
• RAWR: 12,000
• GVWR: 16,500
