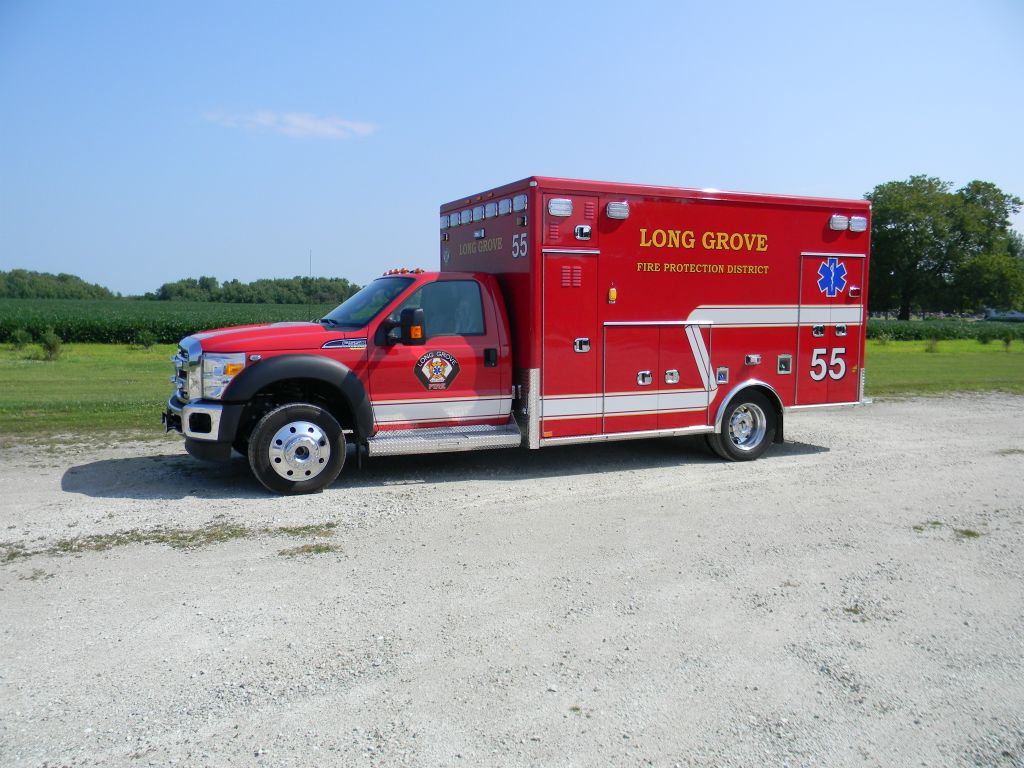

TYPE I AMBULANCE #A207
LONG GROVE FIRE PROTECTION DISTRICT
LONG GROVE, ILLINOIS

Technical Specs

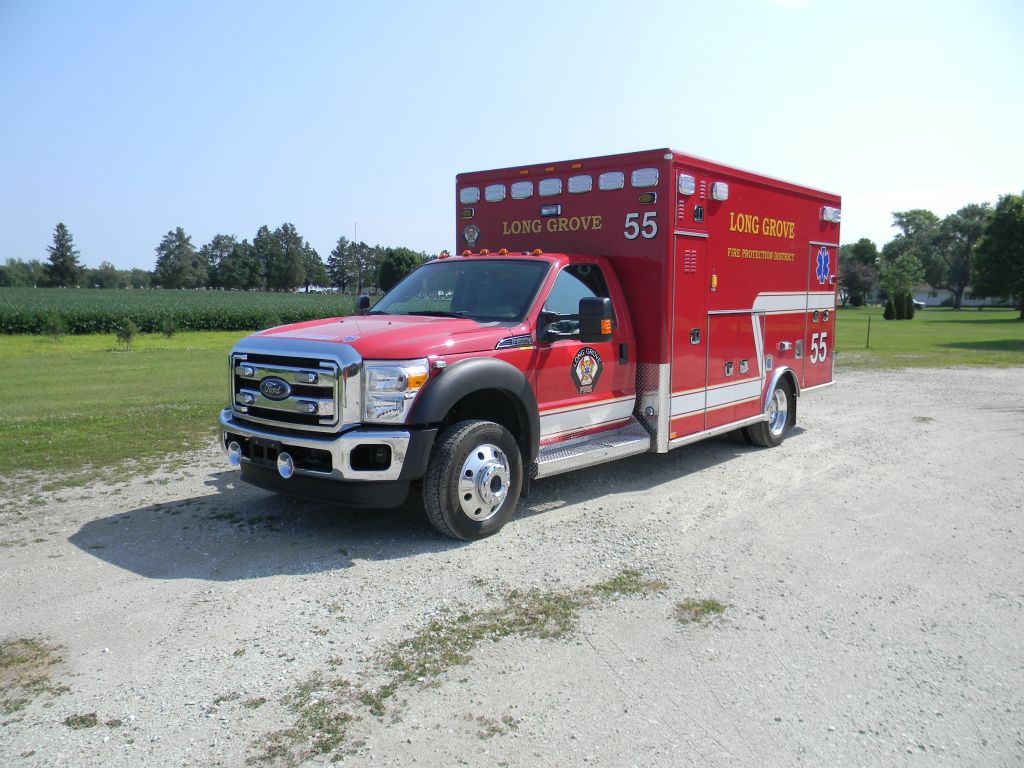

• Chassis: Ford F-550 4 x 4
• Engine: 6.7 Scorpion
• Transmission: Ford HD 6 speed automatic
• Attendant Seat: EVS Child Safety Seat; 3 pt. harness

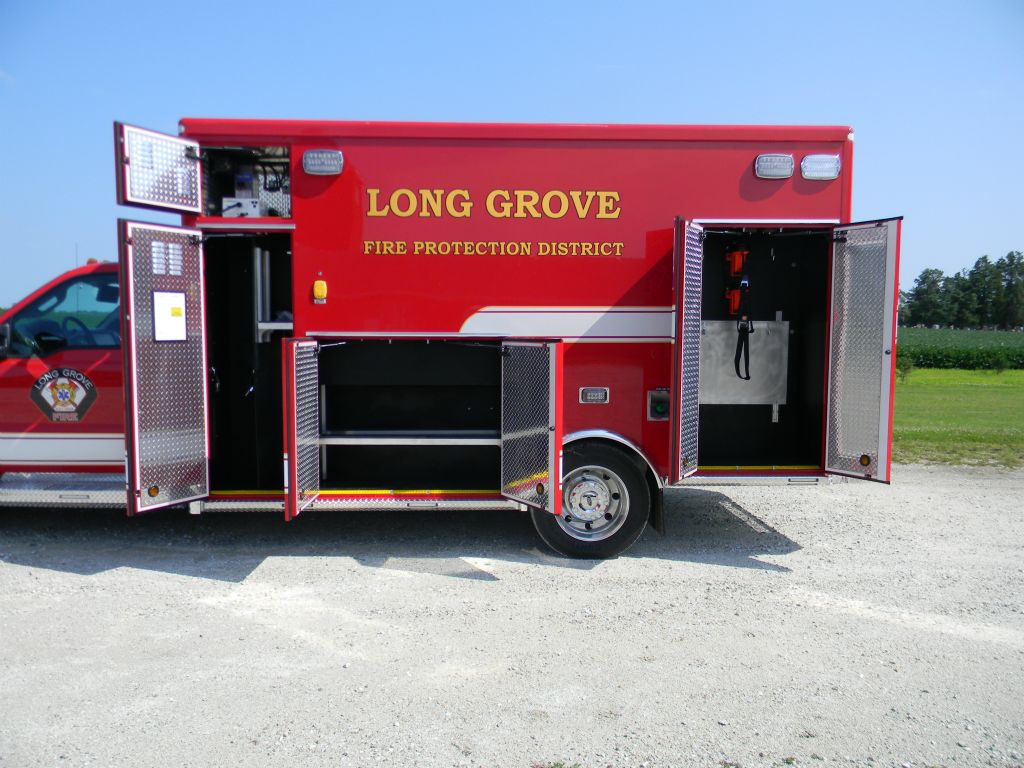

• AEV Extruded Aluminum Body
• 6" Curbside Body Drop on both sides
• Custom paint & stripping to match existing fleet
• Size/Headroom: Interior 72" Finished Interior height
• Shoreline: Auto eject w/indicator light
• Battery switch w/ auto 10 minute shut down
• Siren: Whelen 295HFS2 200 watt w/ Whelen bumper mounted speakers
• Air horn: Buell Dual 10" & 12" Strombos thru bumper installation
• Patient lights: Kinequip LED

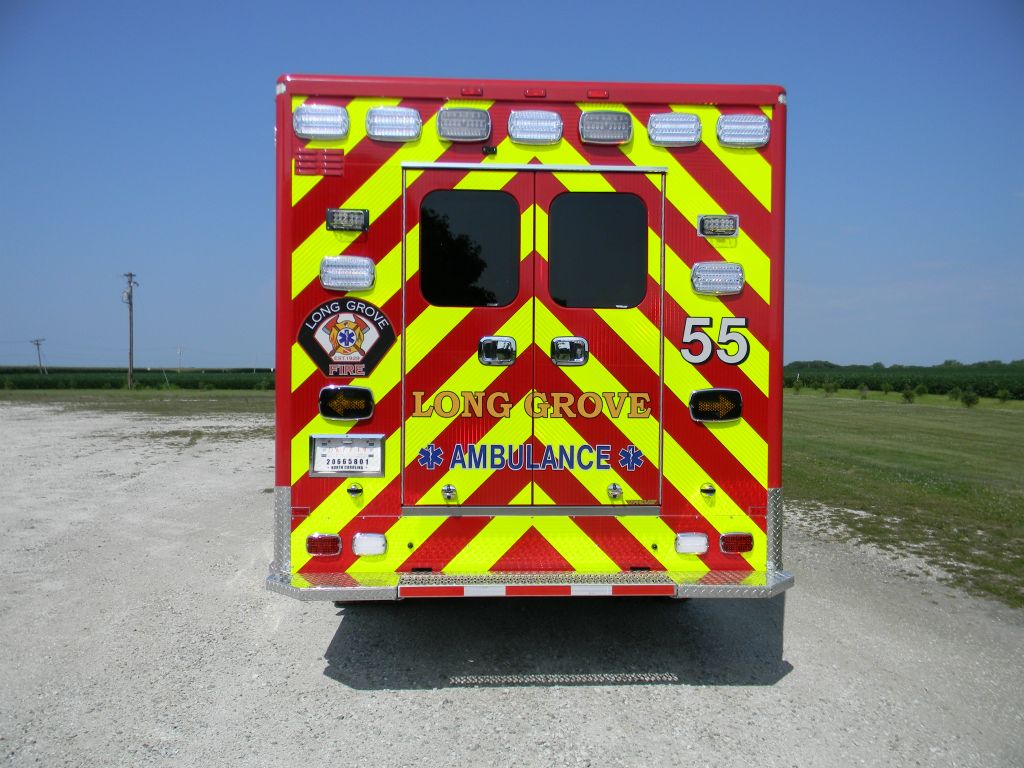

• Warning Light package: Whelen M series LED package & Power Arc
• Whelen Skirtrail Lights with white ground lighting
• Scene Lights Whelen M Series LED
• Opticom: Tomar #3HI Opticom

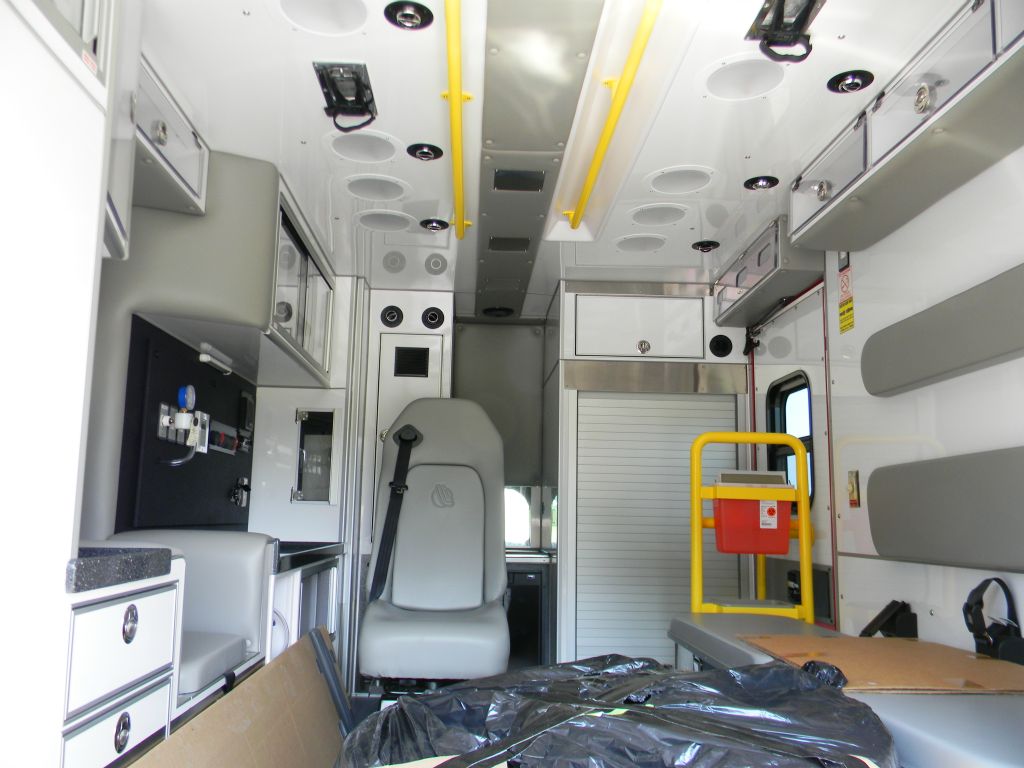

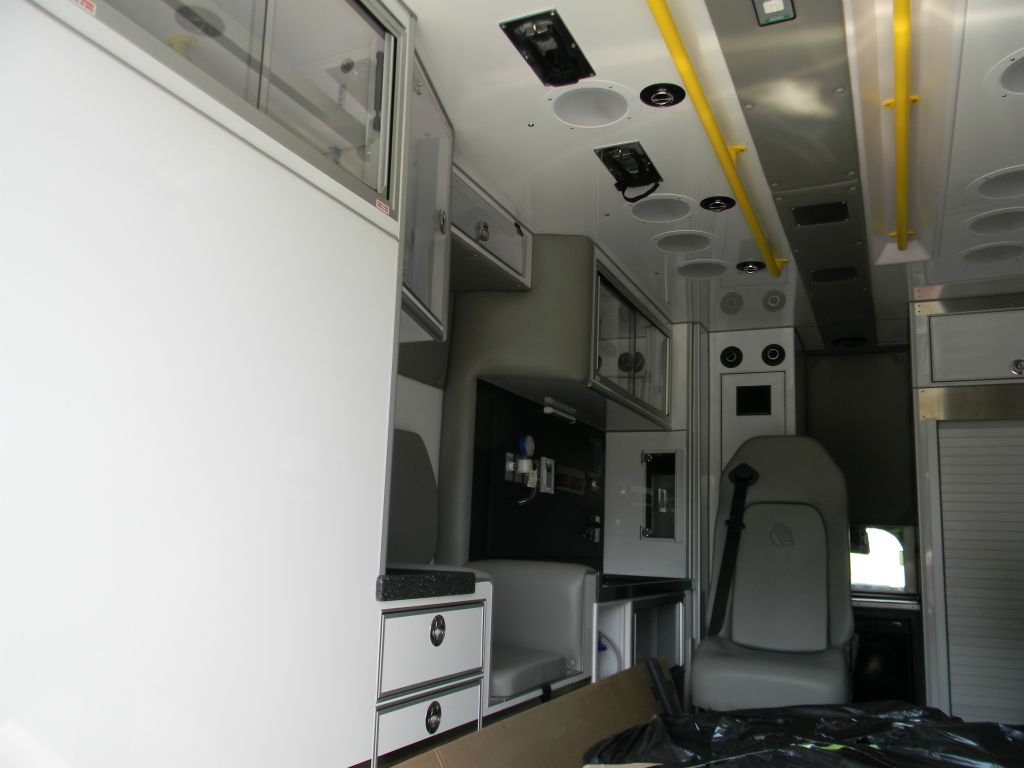

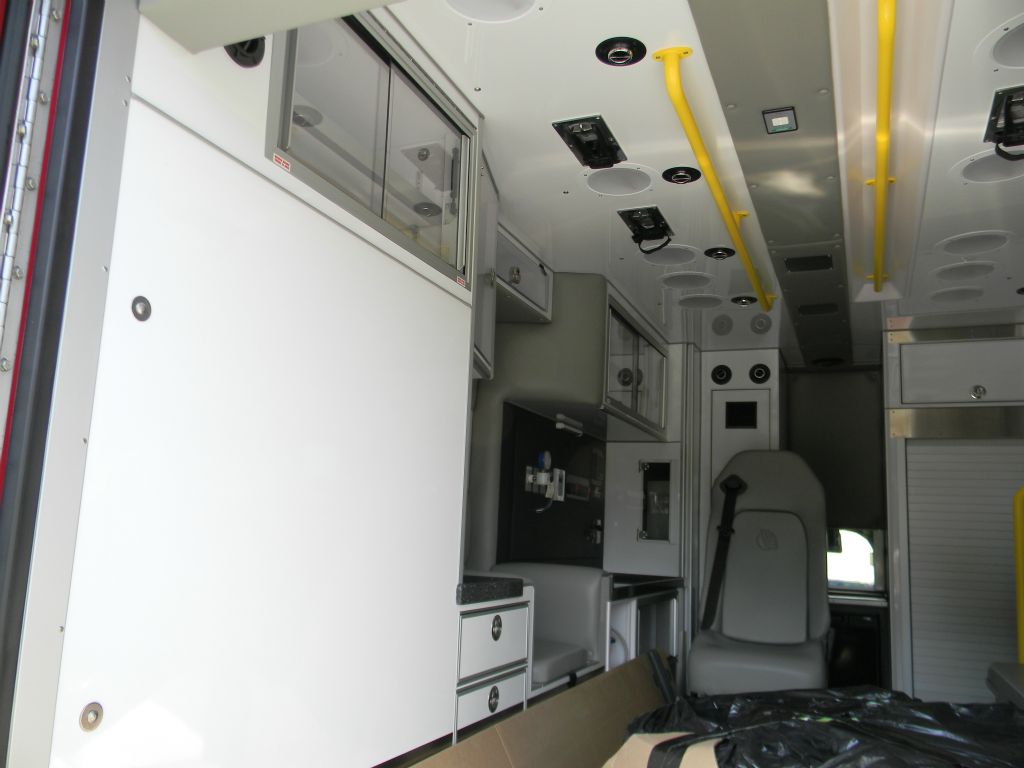

• Customer "yellow antimicrobial" overhead hand rails, door handles & thresholds
• Link Air Ride Suspension
• Federal "Rumbler" siren system
• Electrical: RMR
• Camera: (1) Ext. Back Up
• Power Door Locks w/override in grill area
• Action Area: Solid Surface – Midnight Mélange
• Stryker "Power Load" Cot system
• Norcold 1.7 Cu Ft. refrigerator
• Upholstery: Vacuum Formed-light gray
• IV Warmer & Electric Oxygen level gauge
• Aluminum Alloy Wheels
• Wheelbase: 189"
• FAWR: 7,000
• RAWR: 13,600
• GVWR: 18,000

Download Spec Sheet »







Alexis Fire Equipment would like to thank the members of the LONG GROVE FIRE PROTECTION DISTRICT for their business.
