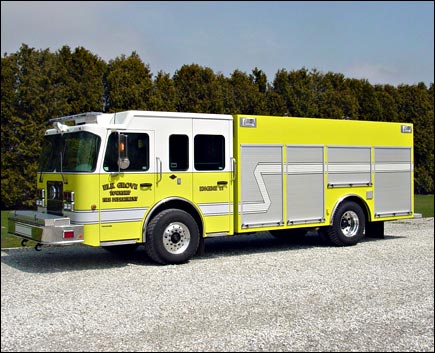

Elk Grove Township Fire
Department
Elk Grove, IL
Technical Specs
• Spartan Advantage MFD
Custom Cab
• Cummins ISL 350 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Plastisol Glassfibre Reinforced Polyester (GRP)
Apparatus Body
• PacTrac equipment mounting system, including
pull-out boards, roll out trays, and rear of compartment
walls
• ROM Roll-up doors
• 1100 Gallon GRP Water Tank
• 100 Gallon GRP Foam Tank
• Waterous S100D 1750 GPM Rear Mount Pump
• Elkhart Electric Valves for all discharges.
• Waterous/Pneumax 200P CAFS System
• FoamPro Powerfill Foam Tank Refill System
• FireShoppe Color Coded Pump Operator's Panel
• Elkhart Vulcan RF Remote Control Monitor mounted
at the rear center of the hosebed
• Code-3 LED NFPA Warning Light Package
• Onan 15kw Hydraulic Generator
• Fire Research Built-In 120 Volt Lights on all
four side
• Tempest Towers V-Series Vertical Light Tower
• Hannay Reels - Electric Cord Reel and Hydraulic
Hose Reel
• 9'-5" Overall Height
• 31'-11" Overall Length
• 183" WB
• 129" CA
• 20,000 FAWR
• 27,000 RAWR
• 47,00 GVWR
|
