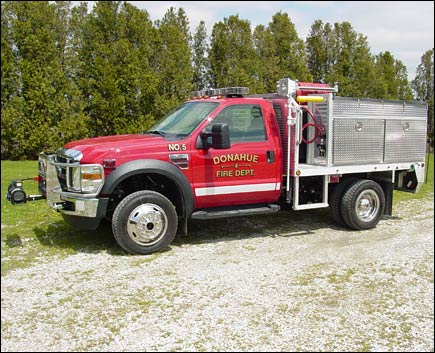

Donahue Volunteer Fire
Department
Donahue, Iowa
Technical Specs
• Ford F-450 2-Door 4x4
DRW Chassis
• Power Stroke 6.4L V-8, 325-HP Diesel Engine
• Ford 5-speed TorqShift Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 300-Gallon Rectangular Poly Tank with 12-gallon
foam tank
• Hale HPX200, 60-GPM Pump with Honda 20-HP Gasoline
engine
• Two (2) ¾" Discharges with 10-ft.
of forestry hose and nozzles
• One (1) 1 ½" Discharge with hose
tray and Hypalon cover
• Two (2) 1" Booster lines with 10-ft hose
• One (1) Hannay Electric Booster Reel with 150-ft.
of 1" hose
• Scotty Around the Pump foam inductor/mixer
• One (1) Warn stainless steel Brush guard with
warp around extension set and front receiver
• One (1) Reese type trailer hitch, rear
• One (1) Ramsey QM 9000, 9000-lb. Winch
• Pump Kill Switch in the walkway of the flatbed
• Two (2) compartments with two (2) drop down
doors each, one (1) each side
• One (1) Long handle tool storage compartment,
top of right side compartments
• Two (2) Unity Deck lights, rear
• Two (2) Akron Brass Extenda-Light 12-volt 100-watt
telescopic lights, one (1) each side
• Jotto Desk Console in cab dash for switches
• Code-3 Electronic Siren with 100-watt Federal
speaker
• Whelen Warning Light Package
• 7' 8" Overall height
• 21" 8" Overall length
• 161.8" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 12,000 RAWR
• 16,000 GVWR
|
