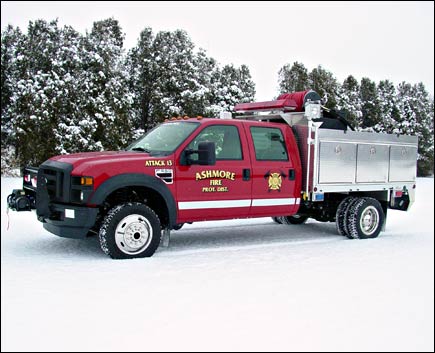

Ashmore Fire Protection
District
Ashmore, Illinois
Technical Specs
• Ford F-550, 4-Door Chassis
• Power Stroke 6.4L V-8, 325-HP Diesel Engine
• Ford 5-Speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• Waterous/Pneumax 90-45-GS compressed air foam
system, 90-GPM with a Briggs & Stratton 27-HP Gasoline
Engine, 300-Gallon Poly tank and 25-Gallon foam tank
• Warn Black Grille Guard with Front Receiver
kit
• Reese type trailer hitch, rear
• Ramsey QM 8000, 8,000-lb. Winch
• Jotto Desk Console installed in the cab
• Two (2) compartments with drop down doors,
one (1) each side
• Two (2) open storage trays, one (1) each side
over compartments
• One (1) Hannay Electric Booster Reel with 150-ft.
of 1" hose
• Manual Battery charge receptacle, left side
• Two (2) Akron Brass Extend-Lite 12-volt telescopic
lights, one (1) each side
• One (1) Federal GHSCENE Scene light, rear
• Code-3 Electronic Siren with Federal 100-watt
speaker
• Code-3 Warning Light Package
• 8' 10" Overall height
• 23' Overall length
• 176.2" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 13,660 RAWR
17,950 GVWR
|
